Tractor · 2004Unverified

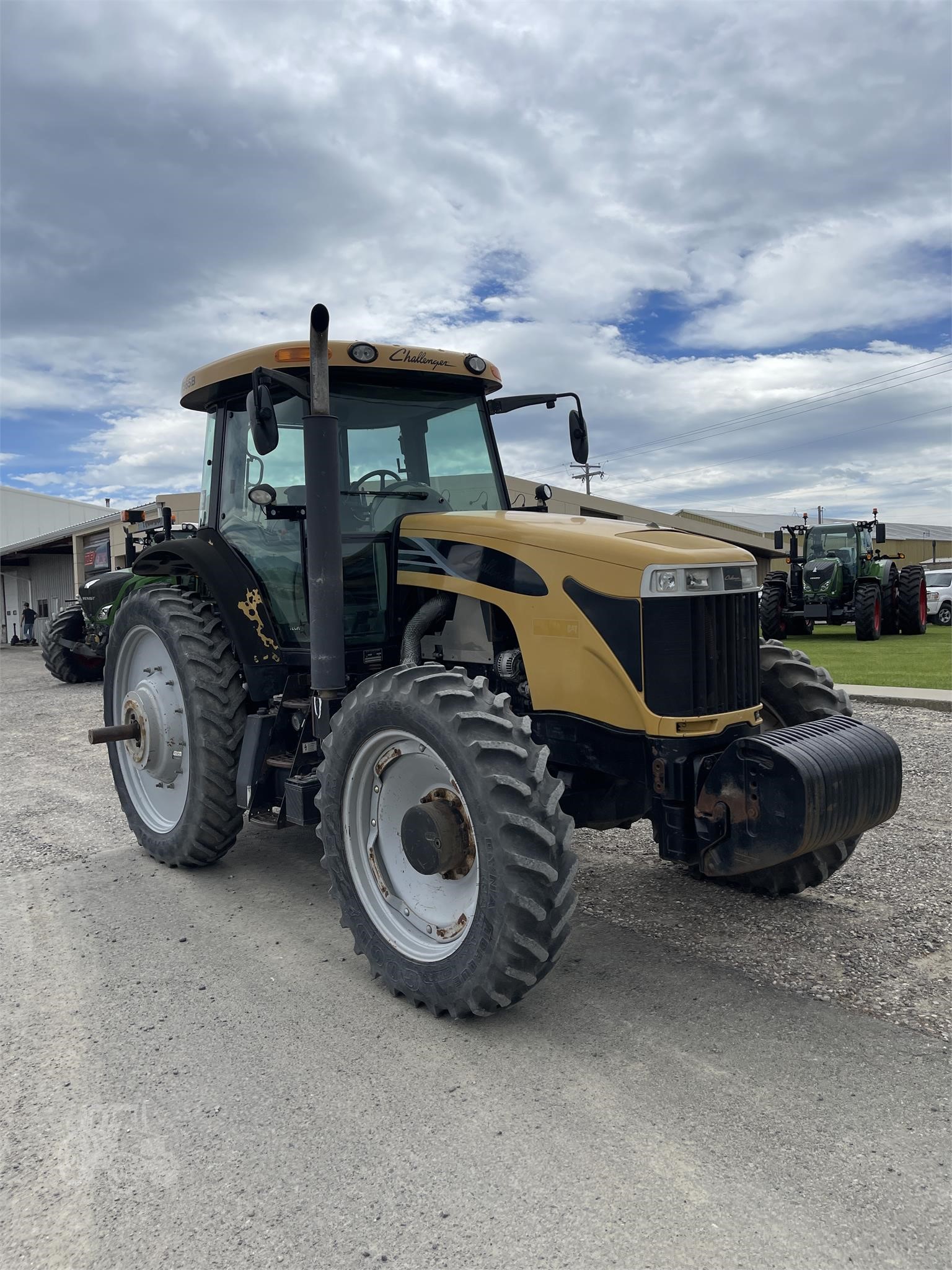

Challenger MT565B

Name: Challenger MT565B
Brand: Challenger

Challenger MT565B — Model year 2004-20072007-2011 · 146 hp. Reference specifications; pending source verification.

The Challenger MT565B is a high-powered tractor model, rated at 146 hp, placing it within the higher-powered machines in its class. Manufactured from 2004 to 2011, it features a 6-cylinder turbocharged diesel liquid-cooled engine, driving through a four-wheel drive system with a continuously variable transmission. Weighing between 14028 and 15060 pounds, this model is suited to tasks covering approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

146 hp

Max power

113.2 kW

Weight

14028 to 15060 pounds

Catalogue coverage

Variants represented

Richest spec table

167 rows

Recorded power

146 hp

Transmissions

32-speed partial power shift

Production years

2004-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic front and rearReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulic optionalReference

Cab standard with heat and A/C. Optional pneumatic cab suspension and automatic climate control.Reference

Variants

6490similar Massey Ferguson modelReference

7490similar Massey Ferguson modelReference

Engine

Caterpillar 6.0L 6-cyl dieselReference

Engine125.3 kWReference

Drawbar (tested)93.2 kWReference

Caterpillar 3056CReference

turbocharged dieselReference

6-cylinderReference

liquid-cooled vertical inlineReference

Displacement6.0 LReference

Bore/Stroke100 x 127 mmReference

EmissionsTier IIReference

Power125.3 kWReference

Cooling systemviscous fanReference

Air cleanerdual paper elementsReference

Compression17.5:1Reference

Rated RPM2200Reference

Idle RPM800-2350Reference

Starter volts12Reference

Oil capacity18.9 LReference

Coolant capacity25.5 LReference

Max power113.2 kWReference

Power at rated engine speed108.9 kWReference

Max power93.2 kWReference

Max power114.2 kWReference

Power at rated engine speed108.6 kWReference

Max power89.9 kWReference

Fuel TypeDieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIReference

Bore and stroke3.937x5.00 inchesReference

Compression ratio17.5:1Reference

Transmission

continuously variable transmissionReference

32-speed partial power shiftReference

TransmissionTechStar CVTReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverse (two-range)Reference

Oil capacity57.9 LReference

TransmissionAutoPower IVReference

Typepartial power shiftReference

Gears32 forward and reverseReference

Clutchhydraulic wet discReference

Four synchronized gears (1-4) in two synchronized ranges (low/high) with a four-speed (A-D) power shift on the left-hand power shuttle lever.Reference

Transmission TypeIVTReference

Wheel Drive4WDReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)108.1 kWReference

PTO (tested)114.2 kWReference

Hydraulic system70.0 LReference

Hydraulic system99.9 LReference

Typeclosed center PFCReference

Capacity70.0 LReference

Capacity99.9 LReference

Pressure200.0 barReference

Valves4Reference

Total flow109.8 lpmReference

Rear TypeII/IIIReference

Rear lift (at 24"/610mm)6667 kgReference

Rear lift (at 24"/610mm)6214 kgReference

Front HitchoptionalReference

Front lift (at ends)2494 kgReference

Front lift (at ends)3492 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540/1000Reference

Rear PTO Type540/540E/1000Reference

Engine RPM540@1890Reference

Engine RPM540E@1523Reference

Engine RPM1000@2000Reference

Power at rated PTO speed112.7 kWReference

Power at rated PTO speed113.5 kWReference

Capacities

Fuel378.5 LReference

Fuel tank378.5 LReference

Dimensions

2WD Wheelbase308 cmReference

4WD Wheelbase301 cmReference

Weight14028 to 15060 poundsReference

Front tire420/90R30Reference

Rear tire520/85R42Reference

Ag front420/90R30Reference

Ag rear520/85R42Reference

Ag front380/85R30Reference

Ag rear480/80R42Reference

Length463 cmReference

Width205 cmReference

Height (cab)286 cmReference

Clearance (drawbar)39 cmReference

Bar rear axle94 by 2997 mmReference

Bar rear axle94 by 2489 mmReference

2WD Front tread162 to 210 cmReference

4WD Front tread155 to 226 cmReference

Rear tread150 to 306 cmReference

Rear tread150 to 241 cmReference

Shipping6363 kgReference

Shipping6589 kgReference

Shipping6831 kgReference

Ballasted8910 kgReference

Max Drawbar1835 kgReference

2WD Max front axle2360 kgReference

4WD Max front axle4599 kgReference

Max rear axle7400 kgReference

MT565B Serial Numbers

2004N00001Reference

2005P00001Reference

2006R00001Reference

2007S00001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Batteries2Reference

Battery CCA420Reference

Battery volts12Reference

Total cold cranking amps420 CCAReference

Test results

OECD 2308: diesel Autopower IV 4WDReference

OECD 2335: diesel CVT 4WDReference

Diesel Autopower IV 4WDSeptember 2005 - October 2005, Link: OCED Tractor Test 2308 fileReference

PTO performanceReference

Fuel use34.1 l/hourReference

Fuel use34.8 l/hourReference

Drawbar performanceReference

Gear 1LA used for power test.Reference

Max pull5894 kgReference

Gear 1TD used for pull test.Reference

Diesel CVT 4WDApril 2005 - June 2005, Link: OCED Tractor Test 2335 fileReference

Fuel use36.3 l/hourReference

Fuel use36.7 l/hourReference

Speeds

50 KPH speeds available with front-axle suspension.Reference

With 20.8R38 rear tires.Reference

General

Make & ModelChallengerReference

SCV controlJoystickReference

Rear Axle TypeBar Axle - StandardReference

Country of manufacturerFranceReference

PTO

PTO Power145 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Front PTO PowerAvailableReference

Engine Speed on Rear PTO speed1,000@2,000 RPMReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)29 gpmReference

Hydraulics Typeclosed center PFCReference

Maximum operating pressure2,900 psiReference

Remote Valves4 ValvesReference

Rear Hitch category (SAE designation)Category II/IIIReference

Front Hitch category (SAE designation)Category optionalReference

Front Hitch lift capacity beyond lift points3,492.7 kgReference

Dimensions & weight

Wheelbase308.4 cmReference

Height Over Cab311.9 cmReference

Overall Length484.1 cmReference

Overall Width206 cmReference

Drawbar clearance39.1 cmReference

Overall weight6,831.1 kgReference

Wheels & tyres

Rear Wheel Type520/85R42Reference

Rear wheel tread range59.2 to 120.5 inchesReference

Front Wheel Type420/90R30Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
