Search/Tractor/Challenger/MT575B

Tractor · 2007Unverified

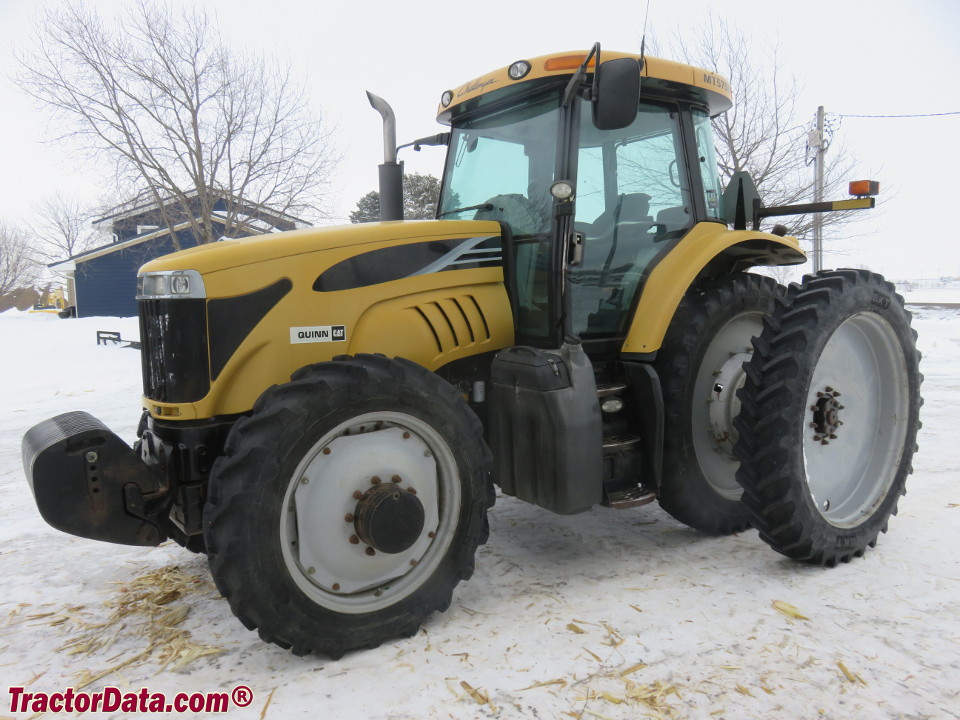

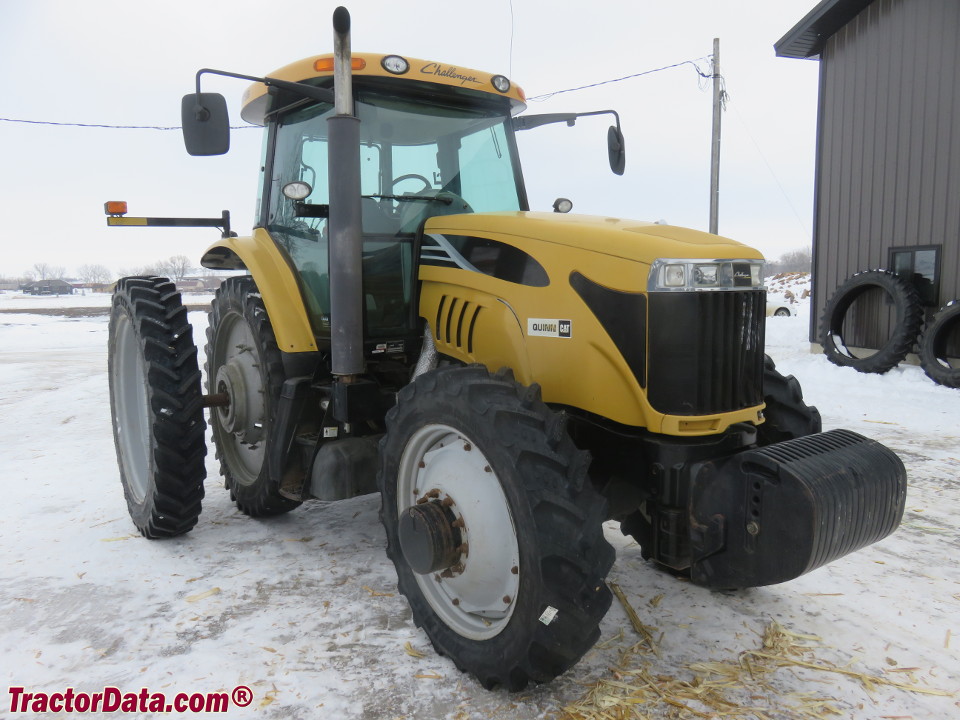

Challenger MT575B

Name: Challenger MT575B
Brand: Challenger

Challenger MT575B — MT500B Series · 185 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

185 hp

Max power

144.5 kW

Weight

15000 to 17595 pounds

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Original price$118,810 (2009 AutoPower 2WD )Reference

Original price$132,069 (2009 AutoPower 4WD )Reference

Original price$141,792 (2009 CVT 4WD )Reference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Cab standard with heat and air-conditioning. Optional pneumatic cab suspension and automatic temperature control.Reference

Variants

7495similar Massey Ferguson modelReference

6495similar Massey Ferguson modelReference

Engine

Caterpillar 6.6L 6-cyl dieselReference

Engine (gross)138.0 kWReference

Drawbar (tested)81.8 kWReference

Caterpillar C6.6 ACERTReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement6.6 LReference

Bore/Stroke105 x 127 mmReference

EmissionsTier IIIReference

Power (gross)138.0 kWReference

Air cleanerdryReference

Rated RPM2200Reference

Starter volts12Reference

Coolant capacity25.5 LReference

Max power144.5 kWReference

Power at rated engine speed127.3 kWReference

Max power81.8 kWReference

Transmission

24-speed partial power shiftReference

continuously variable transmissionReference

TransmissionAutoPower VIReference

Typepartial power shiftReference

Gears24 forward and reverseReference

Clutchhydraulic wet discReference

Oil capacity70.0 LReference

Four ranges with six power shifts each.Reference

TransmissionTechStar CVTReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

Oil capacity57.9 LReference

PTO & Hydraulics

PTO (claimed)119.3 kWReference

PTO (tested)144.5 kWReference

AP6 Hydraulic system70.0 LReference

CVT Hydraulic system99.9 LReference

Typepressure flow compensated (PFC)Reference

AP6 Capacity70.0 LReference

CVT Capacity99.9 LReference

Pressure200.0 barReference

Valves4 to 5Reference

Total flow109.8 lpmReference

Total flow147.6 lpmReference

Rear Type2/3Reference

Rear lift (at 24"/610mm)6912 kgReference

Rear lift (at 24"/610mm)6478 kgReference

Front HitchoptionalReference

Front lift (at ends)3991 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E/1000 (1.375)Reference

Front PTOindependentReference

Front PTO Type1000 (1.375)Reference

Power at rated PTO speed143.6 kWReference

Capacities

Fuel370.9 LReference

Dimensions

Wheelbase289 cmReference

Weight15000 to 17595 poundsReference

Front tire11.00-16Reference

2WD Rear tire18.4R42Reference

2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4R42Reference

4WD Standard tires (ag)Front: 16.9R28. Rear: 18.4R42Reference

Length484 cmReference

Width205 cmReference

Height (cab)311 cmReference

Clearance (drawbar)44 cmReference

AP694 by 2334 mm Bar rear axle3.74 by 91.9 inchesReference

CVT94 by 2468 mm Bar rear axle3.74 by 97.2 inchesReference

Bar rear axle94 by 2997 mmReference

Front tread155 to 226 cmReference

Rear tread152 to 223 cmReference

Rear tread152 to 304 cmReference

2WD AP6 Shipping6804 kgReference

4WD AP6 Shipping7302 kgReference

4WD CVT Shipping7439 kgReference

4WD CVT Operating7981 kgReference

Ballasted10439 kgReference
