Tractor · 2012Unverified

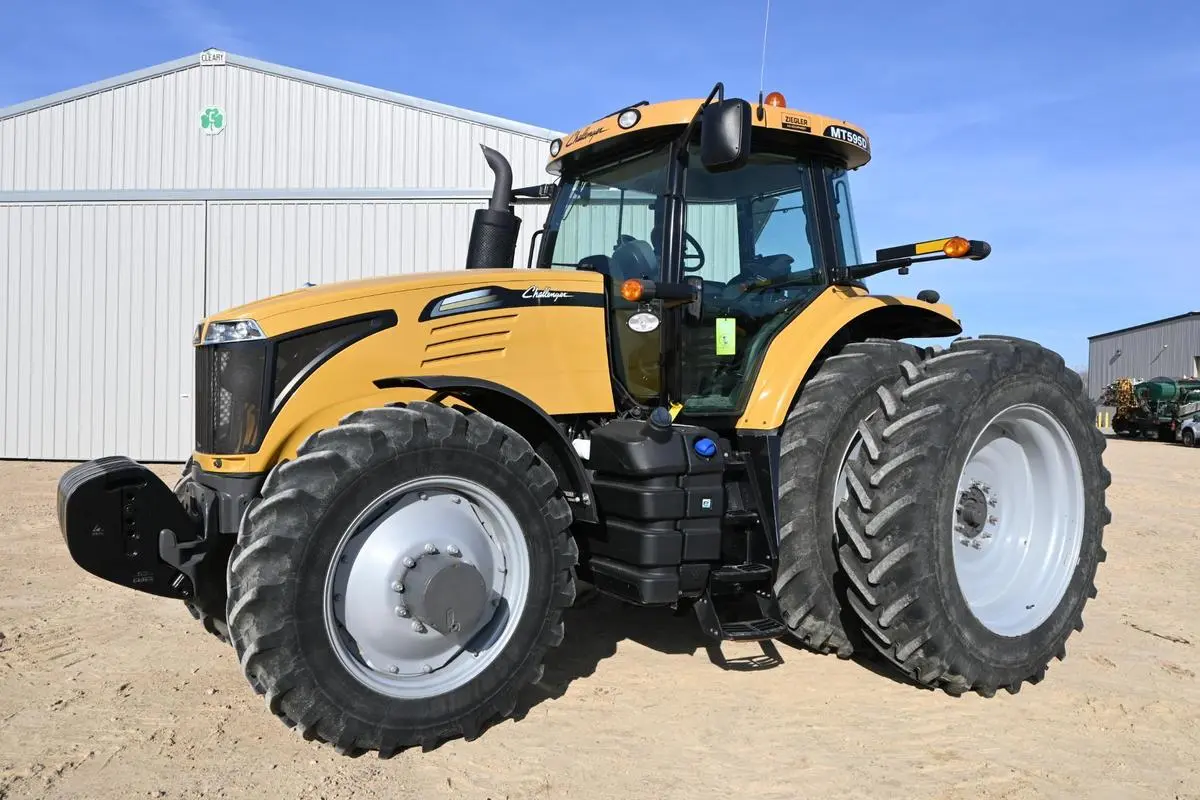

Challenger MT585D
Challenger MT585D — MT500D Series · 188 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
188 hp
Max power
158.1 kW
Weight
7711 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
FactoriesBeauvais, FranceReference
FactoriesJackson, Minnesota, USAReference
Original price$170,650 (2013 classic )Reference
Original price$195,370 (2013 deluxe )Reference
Original price$205,680 (2013 deluxe )Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic full lockingReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulic (optional)Reference
Trailer brakespneumatic (optional)Reference
Cab standard with air-conditioning. AGCO System 150 (optional); AGCOMMAND (optional)Reference
Variants
7624similar Massey Ferguson modelReference
Engine
AGCO Power 7.4L 6-cyl dieselReference
Engine164.1 kWReference
Drawbar (tested)120.6 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalyitic reduction (SCR)Reference
Power164.1 kWReference
Maximum Power175.2 kWReference
Fuel systemelectronic high pressure common railReference
Air cleanerdual stage dryReference
Pre-heatingthermostartReference
Compression17.8:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power158.1 kWReference
Power at rated engine speed139.8 kWReference
Max power118.2 kWReference
Max power157.9 kWReference
Power at rated engine speed138.7 kWReference
Max power120.6 kWReference
Transmission
24-speed six-speed power shiftReference
continuously variable transmissionReference
TransmissionAutoPower VIReference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
TransmissionTechStar CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)134.2 kWReference
PTO (tested)158.1 kWReference
Hydraulic system99.9 LReference
Typeclosed center load sensing (CCLS)Reference
Capacity99.9 LReference
Pressure200.0 barReference
Valves2 to 4Reference
SCV flow92.0 lpmReference
Total flow109.8 lpmReference
Total flow147.6 lpmReference
Rear TypeIIIReference
Controlelectronic lower link draft controlReference
Rear lift (at 24"/610mm)5670 kgReference
Rear lift (at 24"/610mm)5284 kgReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000E/1000Reference
Power at rated PTO speed150.0 kWReference
Power at rated PTO speed156.9 kWReference
Capacities
Fuel431.5 LReference
Exhaust fluid (DEF)41.6 LReference
Dimensions
Wheelbase297 cmReference
Weight7711 kgReference
Front tire420/90R30Reference
Rear tire480/80R46Reference
Standard tires (ag)Front: 420/90R30. Rear: 480/80R46Reference
Length508 cmReference
Height (cab)311 cmReference
Shipping weight7711 kgReference
Max weight12501 kgReference
Bar rear axle109 by 2202 mmReference
Rear axle109 by 3002 mmReference
Bar rear axle94 by 2275 mmReference
Long bar rear axle94 by 2870 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Charging amps240Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Test results
OECD 2706: diesel Techstar CVT 4WDReference
OECD 2757: diesel AutoPower VI 4WDReference
Diesel Techstar CVT 4WDJanuary 2012 - May 2012, Link: OCED Tractor Test 2706 fileReference
PTO performanceReference
Fuel use43.5 l/hourReference
Fuel use41.3 l/hourReference
Fuel use42.4 l/hourReference
Drawbar performanceReference
Fuel use37.9 l/hourReference
Pull at 7.89 KPHReference
Max pull7597 kgReference
Pull at 4.33 KPHReference
Diesel AutoPower VI 4WDOctober 2012 - November 2012, Link: OCED Tractor Test 2757 fileReference
Fuel use43.1 l/hourReference
Fuel use40.9 l/hourReference
Fuel use42.8 l/hourReference
Fuel use37.1 l/hourReference
Gear 3A used for power test.Reference
Max pull7842 kgReference
Gear 1F used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
