Tractor · 2015Unverified

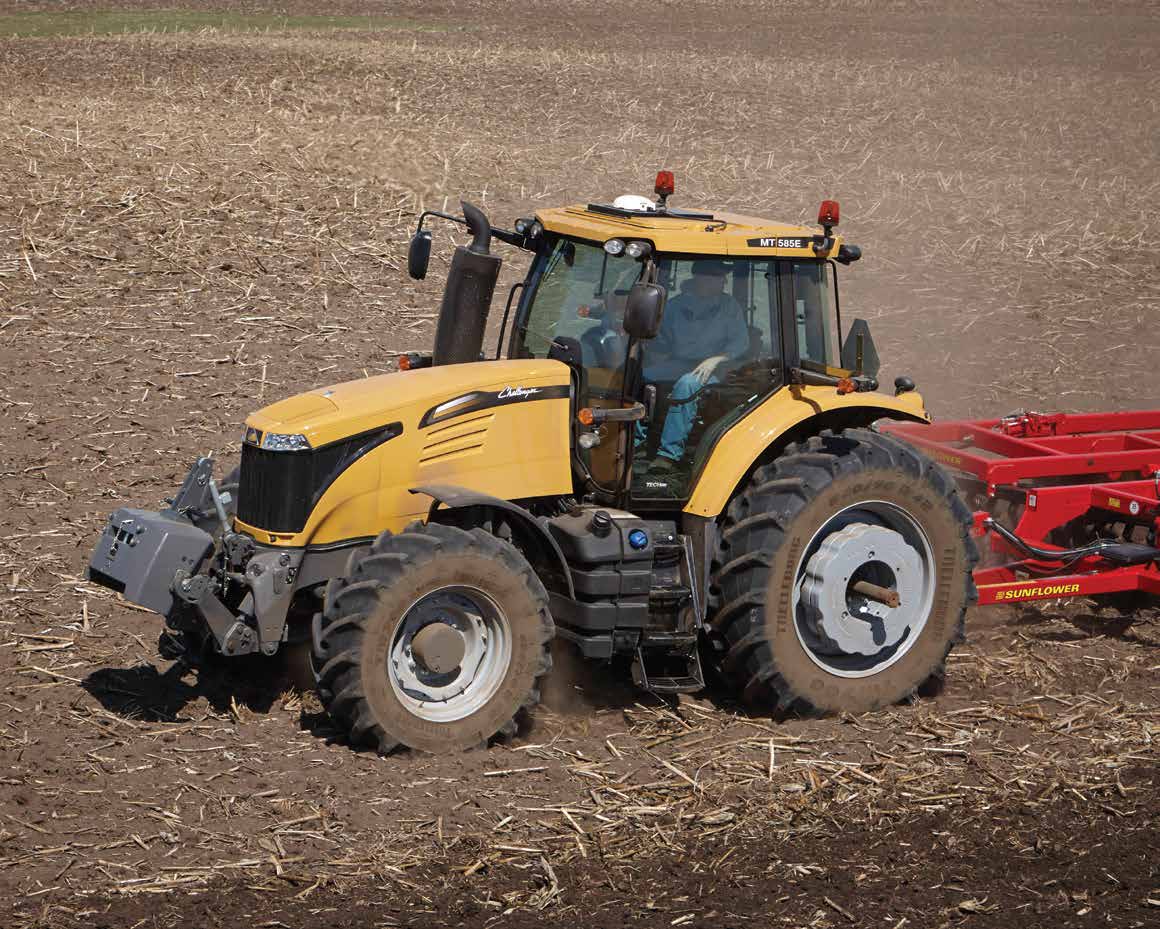

Challenger MT585E

Name: Challenger MT585E
Brand: Challenger

Challenger MT585E — MT500E Series · 220 hp. Reference specifications; pending source verification.

The Challenger MT585E is a tractor model with a rated power output of 220 hp, placing it at the higher end of its power range. Available from 2015 to 2020, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. It is suited for operations on land areas ranging from 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

220 hp

Max power

165.4 kW

Catalogue coverage

Variants represented

Richest spec table

117 rows

Recorded power

220 hp

Transmissions

24-speed six-speed power shift

Production years

2015-2020

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Row-Crop tractorReference

Built in Jackson, Minnesota, USAReference

Four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning. Auto-Guide 3000Reference

Variants

7724similar Massey Ferguson modelReference

Engine

AGCO Power 7.4L 6-cyl dieselReference

Engine (gross)164.1 kWReference

Engine (max)193.9 kWReference

Drawbar (tested)127.1 kWReference

AGCO PowerReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.4 LReference

Bore/Stroke108 x 134 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Rated Power (gross)164.1 kWReference

Maximum Power (gross)193.9 kWReference

Air cleanerdry elementReference

Compression17.8:1Reference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Max power165.4 kWReference

Power at rated engine speed150.0 kWReference

Max power120.7 kWReference

Max power162.0 kWReference

Power at rated engine speed149.9 kWReference

Max power127.1 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceTier IV | selective catalytic reduction (SCR)Reference

Bore and stroke4.252x5.276 inchesReference

Compression ratio17.8:1Reference

Cooling systemliquid-cooledReference

Transmission

24-speed six-speed power shiftReference

continuously-variable transmission (CVT)Reference

TransmissionAutoPower VIReference

Typesix-speed power shiftReference

Gears24 forward and reverseReference

TransmissionTechStarReference

Typecontinuously-variable transmission (CVT)Reference

Gearsinfinite forward and reverseReference

Transmission TypePowershiftReference

Wheel Drive4 WDReference

PTO & Hydraulics

PTO (claimed)134.2 kWReference

PTO (tested)165.4 kWReference

Hydraulic system99.9 LReference

Typeclosed-center load sensingReference

Capacity99.9 LReference

Pressure200.0 barReference

Valves4Reference

SCV flow99.9 lpmReference

Total flow109.8 lpmReference

Total flow147.6 lpmReference

Total flow189.2 lpmReference

Rear TypeIII/IIINReference

Rear lift (at ends)6123 kgReference

Rear lift (at ends)7575 kgReference

Front HitchIIINReference

Front lift (at ends)3607 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Rear PTO Type540E/1000E/1000Reference

Rear PTO Type540/540E/1000/1000EReference

Power at rated PTO speed165.4 kWReference

Power at rated PTO speed161.5 kWReference

Capacities

Fuel431.5 LReference

Exhaust fluid (DEF)41.6 LReference

Fuel tank431.5 LReference

Diesel exhaust fluid (DEF) tank41.6 LReference

Dimensions

Wheelbase297 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Test results

OECD 2937: diesel CVT 4WDReference

OECD 2916: diesel AutoPower VI 4WDReference

Diesel CVT 4WDNovember 2015 - January 2016, Link: OCED Tractor Test 2937 fileReference

PTO performanceReference

Fuel use46.9 l/hourReference

Fuel use46.2 l/hourReference

Drawbar performanceReference

Fuel use46.6 l/hourReference

Pull at 7.76KPHReference

Max pull7475 kgReference

Pull at 2.58KPHReference

Diesel AutoPower VI 4WDJuly 2015 - August 2015, Link: OCED Tractor Test 2916 fileReference

Fuel use45.0 l/hourReference

Gear 3B used for power test.Reference

Max pull8219 kgReference

Gear 1C used for pull test.Reference

General

Make & ModelChallenger (a part of AGCO)Reference

Cruise controlAvailableReference

SCV controljoystickReference

Country of manufacturerUSAReference

Power

Rated Power220 hpReference

PTO

PTO Power180 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic wet disc brakesReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)50 gpmReference

Hydraulics TypeClosed-Center Load SensingReference

Maximum operating pressure2,900 psiReference

Remote Valves4 ValvesReference

Rear Hitch category (SAE designation)Category III/IIINReference

Rear Hitch maximum lift capacity7,575 kgReference

Front Hitch category (SAE designation)Category IIINReference

Operator station

Cab AvailabilityTRUEReference

Cab Air conditioning, temperature differentialCab standard with air-conditioning. Auto-Guide 3,000Reference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
