Tractor · 2010Unverified

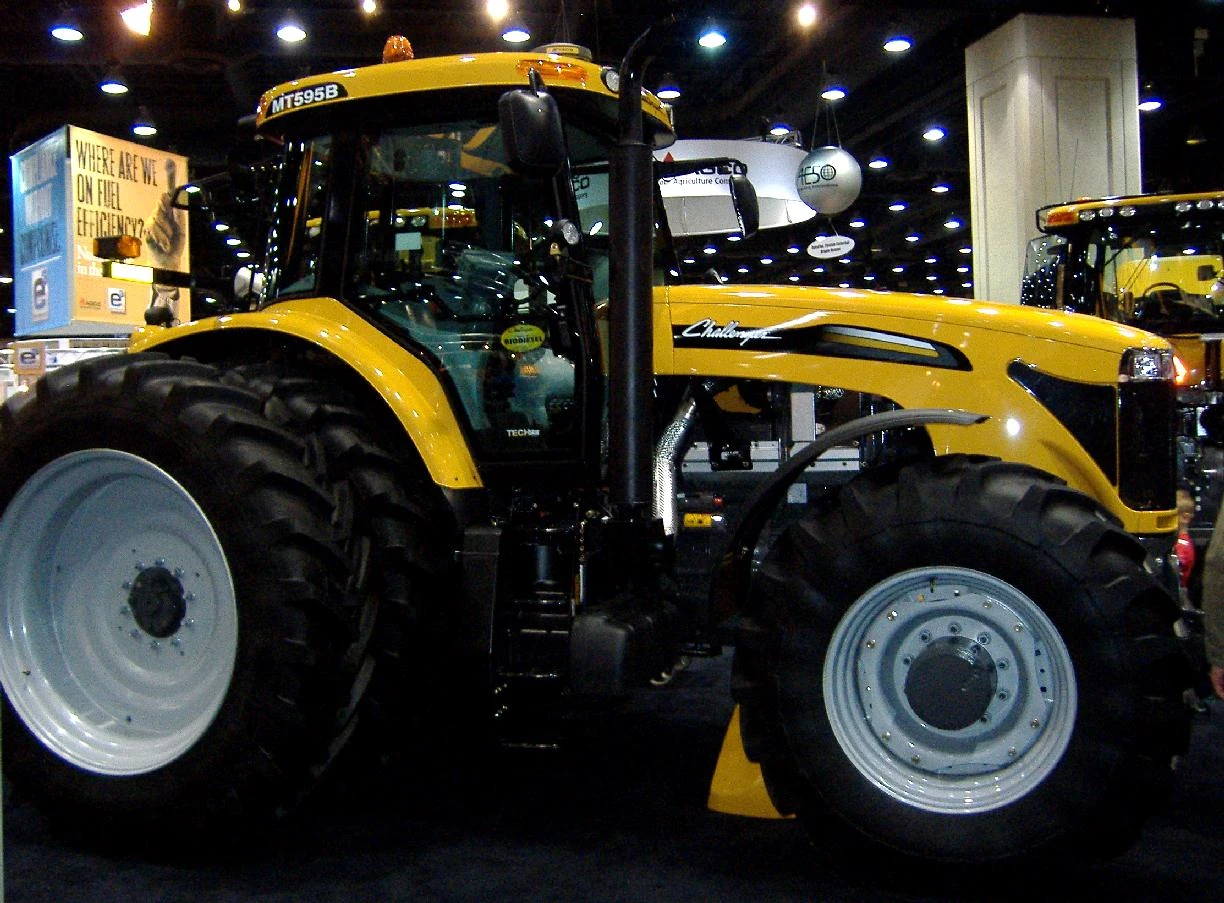

Challenger MT595B
Challenger MT595B — MT500B Series · 215 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
215 hp
Max power
162.0 kW
Weight
7439 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
7499similar Massey Ferguson modelReference
Engine
AGCO SISU Power 7.4L 6-cyl dieselReference
Engine (gross)160.3 kWReference
Drawbar (tested)121.1 kWReference
AGCO SISU Power 74CTAReference
wastegate turbocharged and air-to-air intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsTier IIIReference
Power (gross)160.3 kWReference
Maximum Power179.0 kWReference
Fuel systemelectronic common railReference
StarterelectricReference
Starter volts12Reference
Coolant capacity34.0 LReference
Max power162.0 kWReference
Power at rated engine speed146.6 kWReference
Max power121.1 kWReference
Transmission
continuously variable transmissionReference
TransmissionTechstar CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
Oil capacity52.1 LReference
PTO & Hydraulics
PTO (claimed)134.2 kWReference
PTO (tested)162.0 kWReference
Hydraulic system99.9 LReference
Typeclosed center pressure flow compensatedReference
Capacity99.9 LReference
Pressure200.0 barReference
Valves3 or 4Reference
Total flow109.8 lpmReference
Total flow147.6 lpmReference
Rear TypeIIIReference
Controllower link draft sensingReference
Rear lift (at 24"/610mm)7321 kgReference
Front HitchoptionalReference
Front lift3991 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E/1000 (1.375)Reference
Front PTOoptionalReference
Front PTO Type1000 (1.375)Reference
Power at rated PTO speed160.5 kWReference
Capacities
Fuel355.8 LReference
Dimensions
Wheelbase299 cmReference
Weight7439 kgReference
Length506 cmReference
Width299 cmReference
Height (cab)309 cmReference
Shipping weight7439 kgReference
Clearance (drawbar)40 cmReference
Rear axle2235 mmReference
Rear axle3048 mmReference
Rear tread152 to 223 cmReference
Rear tread152 to 304 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Batteries2Reference
Battery CCA600 (each)Reference
Battery volts12Reference
Test results
Diesel Techstar CVT 4WDJune 20 - 22, 2012Link: OCED Tractor Test 2032A fileReference
PTO performanceReference
Fuel use47.3 l/hourReference
Fuel use45.4 l/hourReference
Fuel use46.9 l/hourReference
Drawbar performanceReference
Fuel use46.2 l/hourReference
Pull at 7.5 kphReference
Max pull7976 kgReference
Pull at 5 kphReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
