Tractor · 2012Unverified

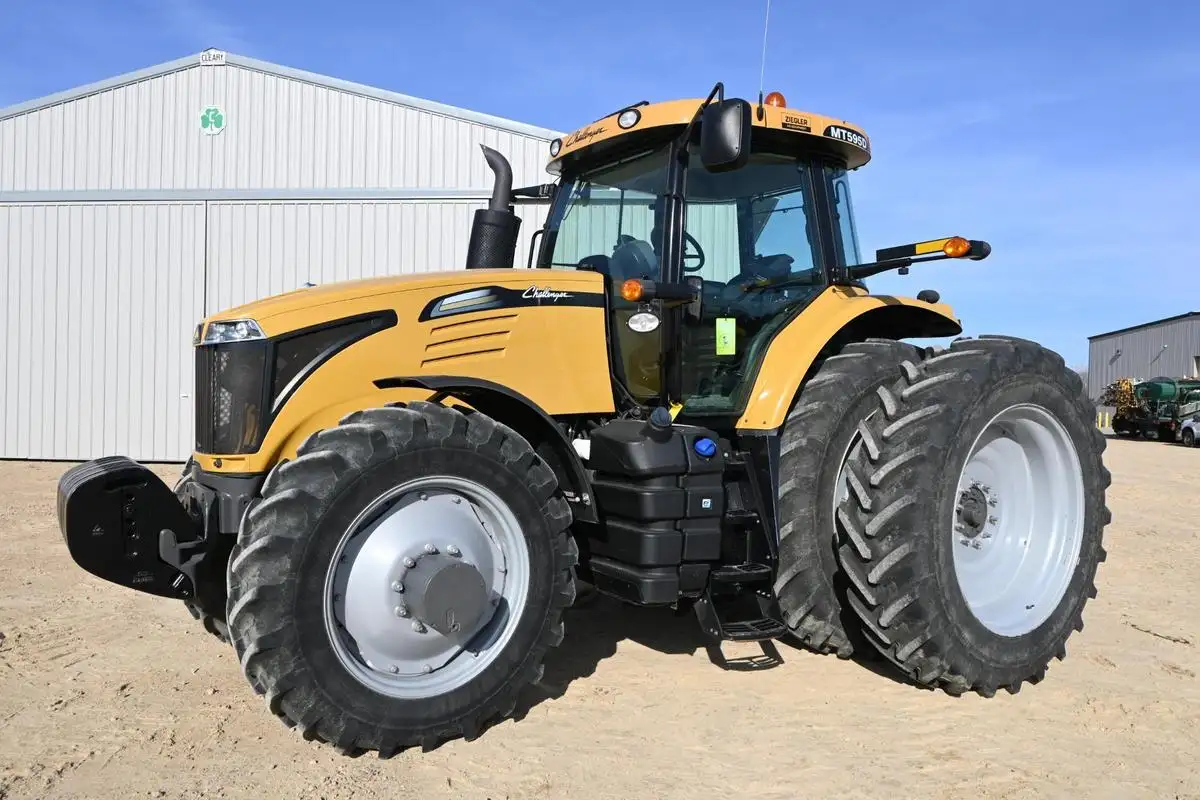

Challenger MT595D
Challenger MT595D — MT500D Series · 206 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
206 hp
Max power
174.4 kW
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
FactoriesBeauvais, FranceReference
FactoriesJackson, Minnesota, USAReference
Original price$179,147 (2013 classic )Reference
Original price$203,867 (2013 deluxe )Reference
Original price$214,177 (2013 deluxe )Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. AGCO System 150 (optional); AGCOMMAND (optional)Reference
Variants
7626similar Massey Ferguson modelReference
Engine
AGCO Power 7.4L 6-cyl dieselReference
Fuel tank431.5 LReference
Exhaust fluid (DEF)41.6 LReference
Engine179.0 kWReference
Drawbar (tested)132.6 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsInterim Tier IVReference
Emission controlselective catalyitic reduction (SCR)Reference
Power179.0 kWReference
Fuel systemelectronic high pressure common railReference
Air cleanerdual stage dryReference
StarterelectricReference
Starter volts12Reference
Max power174.4 kWReference
Power at rated engine speed153.5 kWReference
Max power132.6 kWReference
Transmission
24-speed six-speed power shiftReference
TransmissionAutoPower VIReference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
PTO & Hydraulics
PTO (claimed)145.4 kWReference
PTO (tested)174.4 kWReference
Typeclosed center load sensing (CCLS)Reference
Pressure200.0 barReference
Valves2 to 4Reference
SCV flow92.0 lpmReference
Total flow109.8 lpmReference
Total flow147.6 lpmReference
Rear TypeIIIReference
Controlelectronic lower link draft controlReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Power at rated PTO speed172.9 kWReference
Dimensions
Front tire420/90R30Reference
Rear tire480/80R46Reference
Standard tires (ag)Front: 420/90R30. Rear: 480/80R46Reference
Bar rear axle109 by 2202 mmReference
Rear axle109 by 3002 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Charging amps240Reference
Batteries2Reference
Battery CCA600Reference
Battery volts12Reference
Test results
Diesel AutoPower VI 4WDOctober 2012 - November 2012, Link: OCED Tractor Test 2755 fileReference
PTO performanceReference
Fuel use48.1 l/hourReference
Fuel use44.7 l/hourReference
Fuel use47.3 l/hourReference
Drawbar performanceReference
Fuel use42.8 l/hourReference
Gear 3A used for power test.Reference
Max pull8055 kgReference
Gear 1D used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
