Tractor · 2015Unverified

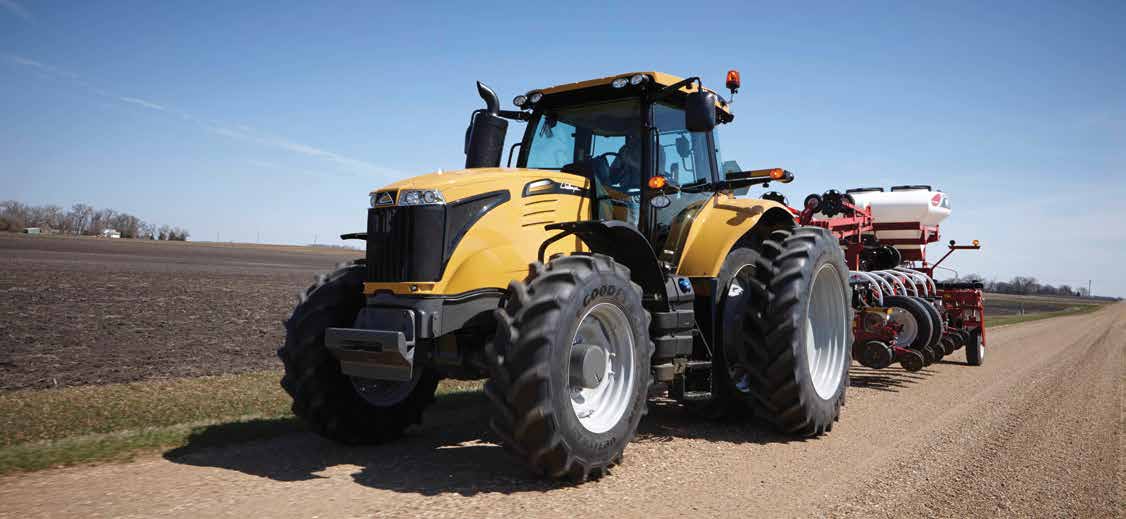

Challenger MT595E
Challenger MT595E — MT500E Series · 240 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
240 hp
Max power
175.9 kW
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
Built in Jackson, Minnesota, USAReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. Auto-Guide 3000Reference
Variants
7726similar Massey Ferguson modelReference
Engine
AGCO Power 7.4L 6-cyl dieselReference
Engine (gross)179.0 kWReference
Engine (max)208.8 kWReference
Drawbar (tested)126.5 kWReference
AGCO PowerReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Rated Power (gross)179.0 kWReference
Maximum Power (gross)208.8 kWReference
Air cleanerdry elementReference
Compression17.8:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power175.9 kWReference
Power at rated engine speed160.4 kWReference
Max power123.9 kWReference
Max power169.8 kWReference
Power at rated engine speed155.1 kWReference
Max power126.5 kWReference
Transmission
24-speed six-speed power shiftReference
continuously-variable transmission (CVT)Reference
TransmissionAutoPower VIReference
Typesix-speed power shiftReference
Gears24 forward and reverseReference
TransmissionTechStarReference
Typecontinuously-variable transmission (CVT)Reference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)149.1 kWReference
PTO (tested)175.9 kWReference
Hydraulic system99.9 LReference
Typeclosed-center load sensingReference
Capacity99.9 LReference
Pressure200.0 barReference
Valves4Reference
SCV flow99.9 lpmReference
Total flow109.8 lpmReference
Total flow147.6 lpmReference
Total flow189.2 lpmReference
Rear TypeIII/IIINReference
Rear lift (at ends)6123 kgReference
Rear lift (at ends)7575 kgReference
Front HitchIIINReference
Front lift (at ends)3607 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Rear PTO Type540E/1000E/1000Reference
Rear PTO Type540/540E/1000/1000EReference
Power at rated PTO speed175.9 kWReference
Power at rated PTO speed169.3 kWReference
Capacities
Fuel431.5 LReference
Exhaust fluid (DEF)41.6 LReference
Dimensions
Wheelbase297 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
OECD 2938: diesel CVT 4WDReference
OECD 2915: diesel AutoPower VI 4WDReference
Diesel CVT 4WDNovember 2015 - January 2016, Link: OCED Tractor Test 2938 fileReference
PTO performanceReference
Fuel use50.3 l/hourReference
Fuel use49.2 l/hourReference
Drawbar performanceReference
Fuel use48.1 l/hourReference
Pull at 7.91KPHReference
Max pull7493 kgReference
Pull at 2.73KPHReference
Diesel AutoPower VI 4WDJuly 2015 - August 2015, Link: OCED Tractor Test 2915 fileReference
Fuel use46.2 l/hourReference
Fuel use47.7 l/hourReference
Fuel use46.6 l/hourReference
Gear 3B used for power test.Reference
Max pull8207 kgReference
Gear 1D used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
