Tractor · 2011Unverified

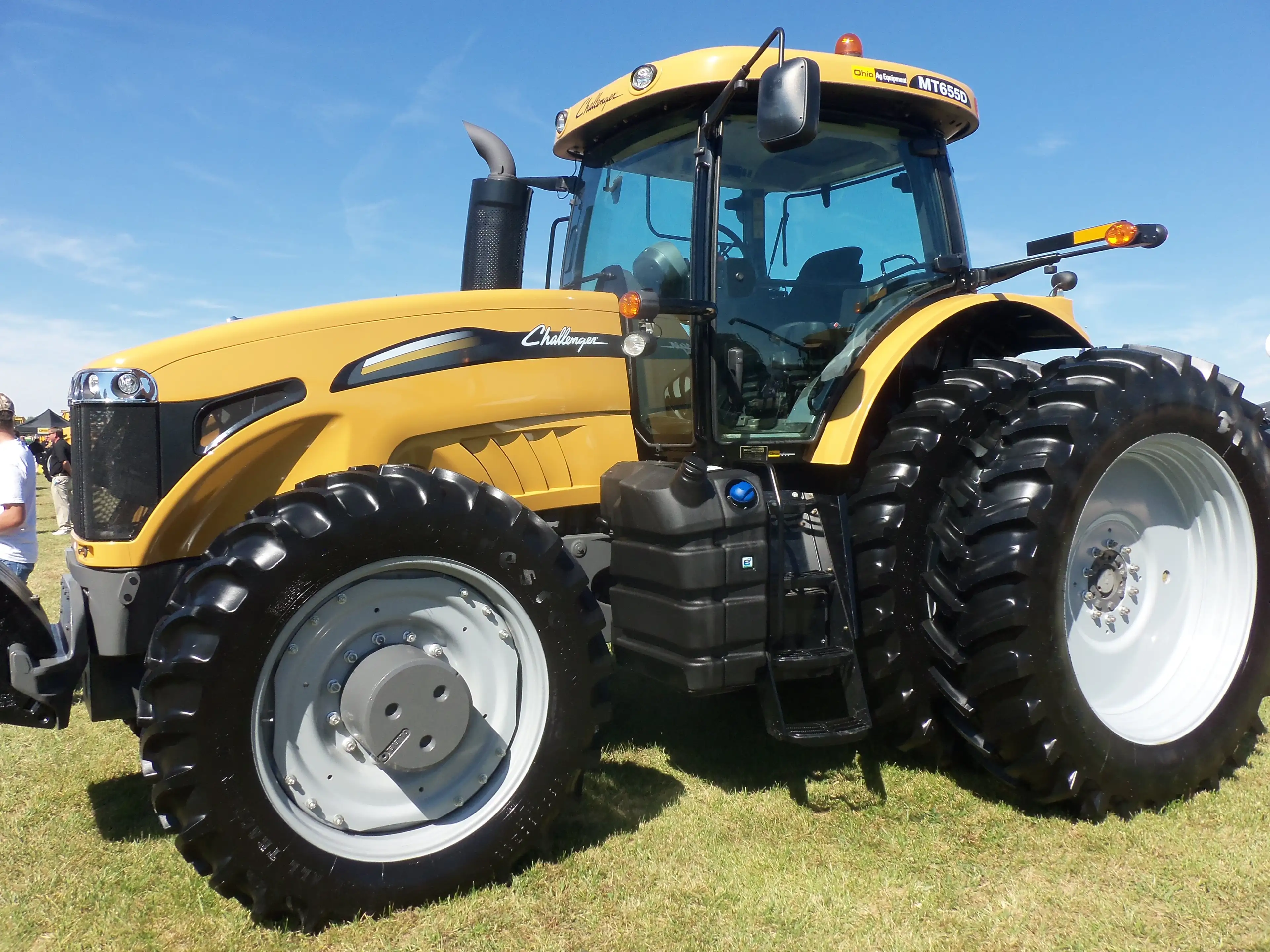

Challenger MT655D

Name: Challenger MT655D
Brand: Challenger

Challenger MT655D — MT600D Series · 265 hp. Reference specifications; pending source verification.

The Challenger MT655D is a tractor model with a rating of approximately 265 hp, positioning it at the higher end of its class in terms of power. It was manufactured between 2011 and 2013. The MT655D features a 6-cylinder turbocharged, intercooled diesel engine, which is liquid-cooled, and is paired with four-wheel drive and a continuously variable transmission. Its operating weight is listed as 10999 kg, making it suitable for operations covering 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

265 hp

Max power

206.3 kW

Weight

10999 kg

Catalogue coverage

Variants represented

Richest spec table

132 rows

Recorded power

265 hp

Recorded weight

10999 kg

Transmissions

Techstar CVT

Production years

2011-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Row-Crop tractorReference

Built in Jackson, Minnesota, USAReference

Original price was $279,539 in 2013Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulicReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Trailer brakespneumatic (optional)Reference

Trailer brakeshydraulic (optional)Reference

Cab standard with air-conditioning and OptiRide Plus hydraulic suspension AGCO System 150 (optional); AGCOMMAND (optional)Reference

Variants

8660similar Massey Ferguson modelReference

Engine

AGCO Power 8.4L 6-cyl dieselReference

Engine (gross)197.6 kWReference

Drawbar (tested)143.3 kWReference

AGCO PowerReference

turbocharged air-to-air intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

EmissionsInterim Tier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Power (gross)197.6 kWReference

Maximum Power220.0 kWReference

Fuel systemelectronic high-pressure common railReference

Pre-heatingthermostartReference

Compression16.7:1Reference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Max power206.3 kWReference

Power at rated engine speed177.1 kWReference

Max power143.3 kWReference

Fuel TypedieselReference

No of Cylinders6 CylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceInterim Tier IV | selective catalytic reduction (SCR)Reference

Bore and stroke4.370x5.709 inchesReference

Compression ratio16.7:1Reference

Cooling systemliquid-cooledReference

Transmission

continuously variable transmissionReference

TransmissionTechstar CVTReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypeCVTReference

forward and reverse optionscontinuously variable transmission - infinite F and infinite RReference

Wheel Drive4WDReference

Track Drive typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)167.8 kWReference

PTO (tested)206.3 kWReference

Hydraulic system110.1 LReference

Typeclosed center load sensing (CCLS)Reference

Capacity110.1 LReference

Pressure200.0 barReference

Valves4 to 6Reference

SCV flow99.9 lpmReference

Total flow174.1 lpmReference

Rear TypeIIIReference

Rear lift10323 kgReference

Front HitchIII (optional)Reference

Front lift (at ends)4989 kgReference

DrawbarCat. 3Reference

DrawbarCat. 3 Heavy-Duty (optional)Reference

DrawbarCat. 4 (optional)Reference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type1000/1000E (1.75)Reference

Rear PTO Type540E/1000/1000E (optional)Reference

Engine RPM540E@1577Reference

Engine RPM1000E@1605Reference

Engine RPM1000@1970Reference

Power at rated PTO speed203.0 kWReference

Capacities

Fuel632.1 LReference

Exhaust fluid (DEF)60.6 LReference

Fuel tank632.2 LReference

Diesel exhaust fluid (DEF) tank60.6 LReference

Dimensions

Wheelbase309 cmReference

Weight10999 kgReference

Front tire480/70R34Reference

Rear tire520/85R46Reference

Standard tires (ag)Front: 480/70R34. Rear: 520/85R46Reference

Length547 cmReference

Height (cab)358 cmReference

Shipping weight10999 kgReference

Max weight15000 kgReference

Front axle4WDReference

Front axle4WD Quadlink SuspensionReference

Rear axle109 by 2667 mmReference

Rear axle109 by 2997 mmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps240Reference

Batteries2Reference

Battery volts12Reference

Test results

Diesel Techstar CVT 4WDJanuary 2012 - May 2012, Link: OCED Tractor Test 2719 fileReference

PTO performanceReference

Fuel use55.6 l/hourReference

Fuel use50.0 l/hourReference

Fuel use54.9 l/hourReference

Drawbar performanceReference

Fuel use48.8 l/hourReference

Pull at 9.08 KPHReference

Max pull10820 kgReference

Pull at 4.38 KPHReference

General

Make & ModelChallenger (a part of AGCO)Reference

Cruise controlAvailableReference

Drawbar categoryCat. 3Reference

Rear Axle Type4.33 by 105 inchesReference

Front Axle Type4WD | 4WD Quadlink SuspensionReference

Country of manufacturerUSAReference

Power

Rated Power265 hpReference

PTO

PTO Power225 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed540E@1,577 RPMReference

Steering & brakes

BrakesHydraulic wet disc brakesReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)46 gpmReference

Hydraulics Typeclosed center load sensing (CCLS)Reference

Maximum operating pressure2,900 psiReference

Remote Valves4 to 6 ValvesReference

Rear Hitch category (SAE designation)Category IIIReference

Rear Hitch maximum lift capacity10,323.8 kgReference

Front Hitch category (SAE designation)Category III (optional)Reference

Dimensions & weight

Height Over Cab358.1 cmReference

Overall Length547.9 cmReference

Overall weight10,999.6 kgReference

Wheels & tyres

Rear Wheel Type520/85R46 agReference

Front Wheel Type480/70R34 agReference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
