Tractor · 2005Unverified

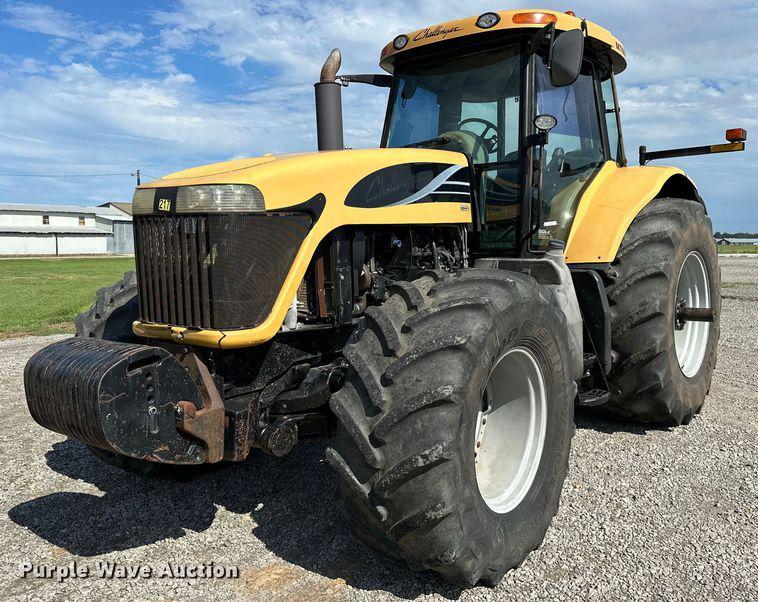

Challenger MT665B
Challenger MT665B — MT600B Series · 246 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
246 hp
Max power
199.8 kW
Weight
19550 to 20290 pounds
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectrohydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard with heat and A/C. Optional pneumatic cab suspension and automatic climate control.Reference
Engine
Sisu 8.4L 6-cyl dieselReference
Engine216.3 kWReference
Drawbar (tested)172.4 kWReference
Sisu 84ETAReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled vertical inlineReference
Displacement8.4 LReference
Bore/Stroke111 x 145 mmReference
Power216.3 kWReference
Fuel systemelectronic direct injectionReference
Air cleanerdual paper elementsReference
Pre-heating1000W coolant heaterReference
Compression17.5:1Reference
Rated RPM2200Reference
Idle RPM800-2350Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity33.7 LReference
Max power199.8 kWReference
Power at rated engine speed183.2 kWReference
Max power172.4 kWReference
Transmission
continuously variable transmission (CVT)Reference
18-speed power shiftReference
TransmissionTechStarReference
Typecontinuously variable transmission (CVT)Reference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity67.0 LReference
Typepower shiftReference
Gears18 forward and 9 reverseReference
PTO & Hydraulics
PTO (claimed)179.0 kWReference
PTO (tested)199.8 kWReference
Hydraulic system99.9 LReference
Typepressure flow compensated (PFC)Reference
Capacity99.9 LReference
Pressure200.0 barReference
Valves4 to 6Reference
Total flow147.6 lpmReference
Rear TypeIIIReference
Rear lift (at 24"/610mm)7076 kgReference
Front HitchIIReference
Front lift3492 kgReference
Front lift5488 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/540EReference
Rear PTO Type1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@2037Reference
Engine RPM540E@ 1598Reference
Engine RPM1000@2031Reference
Power at rated PTO speed198.3 kWReference
Capacities
Fuel601.8 LReference
Dimensions
Wheelbase307 cmReference
Weight19550 to 20290 poundsReference
Front tire380/85R34Reference
Rear tire480/80R46Reference
Ag front380/85R34Reference
Ag rear480/80R46Reference
Length523 cmReference
Width299 cmReference
Height (cab)313 cmReference
Ground clearance56 cmReference
Bar rear axle109 by 2997 mmReference
Rear tread152 to 223 cmReference
Shipping8867 kgReference
Operating9203 kgReference
Ballasted13177 kgReference
Max Drawbar2549 kgReference
Max front axle4926 kgReference
Max rear axle7731 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps150Reference
Batteries2Reference
Battery CCA775Reference
Battery volts12Reference
Test results
Diesel CVT 4WDApril 19 - May 2, 2006Link: OCED Tractor Test 1878 fileReference
PTO performanceReference
Fuel use55.6 l/hourReference
Fuel use56.0 l/hourReference
Drawbar performanceReference
Max pull12279 kgReference
Pull at 3.7 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
