Tractor · 2009Unverified

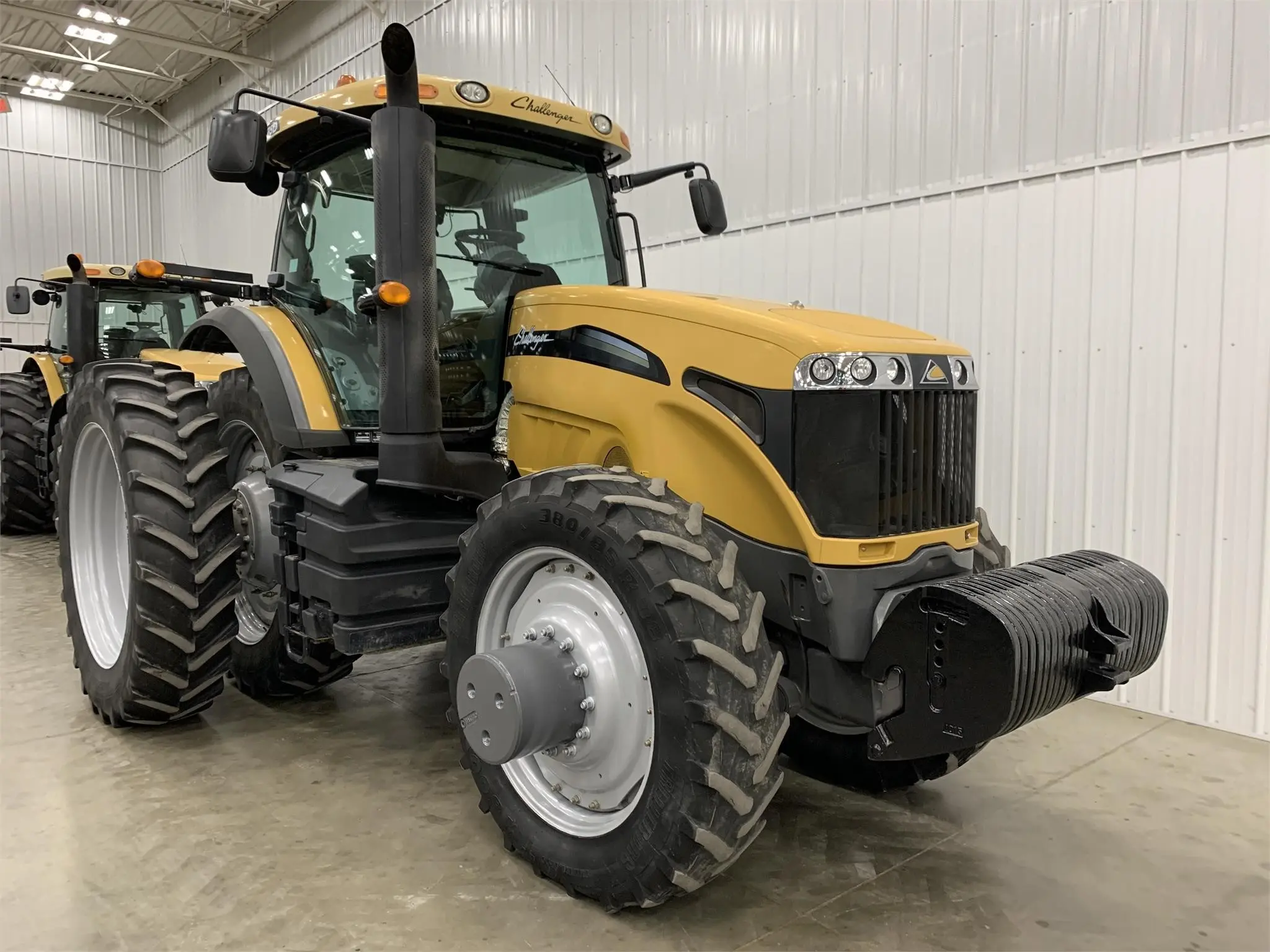

Challenger MT685C
Challenger MT685C — MT600C Series · 320 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
320 hp
Weight
10999 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control.Reference
Engine
AGCO SISU POWER 8.4L 6-cyl dieselReference
Fuel tank590.1 LReference
Fuel tank690.0 LReference
Exhaust fluid (DEF)29.9 LReference
Engine253.5 kWReference
AGCO SISU POWER 84CTAReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
The engine uses AGCO's e3 selective catalytic reduction (SCR) system to reduce nitrogen oxides (NOx). The system uses a diesel exhaust fluid that is injected into the exhaust gas.Reference
Displacement8.4 LReference
Bore/Stroke111 x 145 mmReference
EmissionsInterim Tier 4Reference
Emission controlselective catalytic reduction (SCR)Reference
Power253.5 kWReference
Maximum Power275.9 kWReference
Compression16.7:1Reference
Rated RPM2200Reference
Torque1540.4 NmReference
Torque RPM1500Reference
Starter typeelectricReference
Transmission
continuously-variable transmissionReference
TransmissionDyna-VTReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)238.6 kWReference
Typeclosed center load sensingReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow99.9 lpmReference
Total flow174.9 lpmReference
Rear TypeIII, IVReference
Rear lift (at ends)12002 kgReference
Rear lift (at 24"/610mm)9678 kgReference
Front HitchIIIReference
Front lift (at ends)4998 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000E/1000 (1.75)Reference
Rear PTO Type540E/1000 (1.375)Reference
Front PTOindependentReference
Front PTO Type1000 (1.375)Reference
Dimensions
Wheelbase310 cmReference
Weight10999 kgReference
Front tire480/70R34Reference
Rear tire520/85R46Reference
Ag front480/70R34Reference
Ag rear520/85R46Reference
Length566 cmReference
Height (cab)338 cmReference
Shipping weight10999 kgReference
Max weight17640 kgReference
Challenger MT685C attachments
front-end loaderReference
MT685C Serial Number Location
Serial number plate below the tractor cab door on the right side.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Batteries2Reference
Battery CCA775Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
