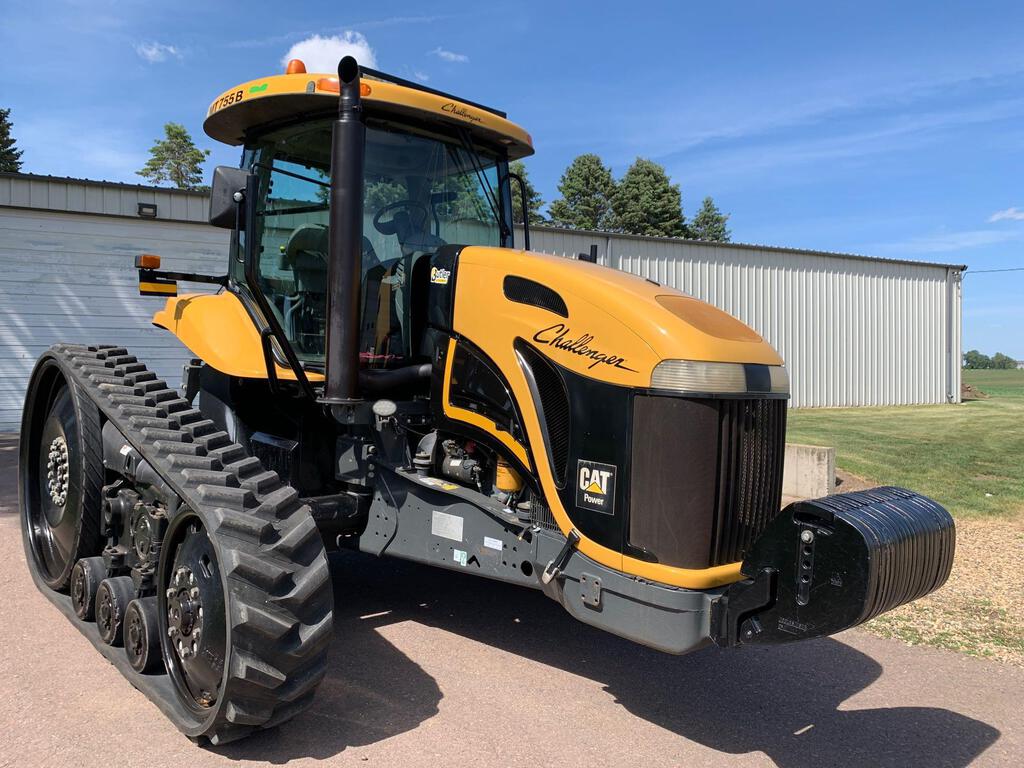

Challenger MT745B

Name: Challenger MT745B
Brand: Challenger

Challenger MT745B — MT700B Series · 269 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

269 hp

Weight

14095 kg

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Agricultural Crawler tractorReference

Built in Jackson, Minnesota, USAReference

DrivecrawlerReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Caterpillar 8.8L 6-cyl dieselReference

Fuel tank446.6 LReference

Fuel tank673.7 LReference

Fuel tank787.3 LReference

Engine (gross)200.6 kWReference

CaterpillarReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement8.8 LReference

Bore/Stroke112 x 149 mmReference

Power (gross)200.6 kWReference

Air cleanerdual paper elementsReference

Rated RPM2100Reference

Starter volts12Reference

Transmission

16-speed full power shiftReference

TransmissionCat PowerShiftReference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

PTO (claimed)167.8 kWReference

Typeclosed-center PFCReference

Pressure200.0 barReference

Rear valves4 to 6Reference

Pump flow164.6 lpmReference

Rear TypeIIIN/IIIReference

Rear lift7257 kgReference

Rear PTOindependentReference

Rear PTO Type1000Reference

Dimensions

Wheelbase243 cmReference

Weight14095 kgReference

16-inch tracksReference

Length591 cmReference

Width337 cmReference

Height (cab)344 cmReference

Shipping weight14095 kgReference

Ground clearance36 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps185Reference

Batteries2Reference

Battery CCA1000Reference

Battery volts12Reference
