Tractor · 2009Unverified

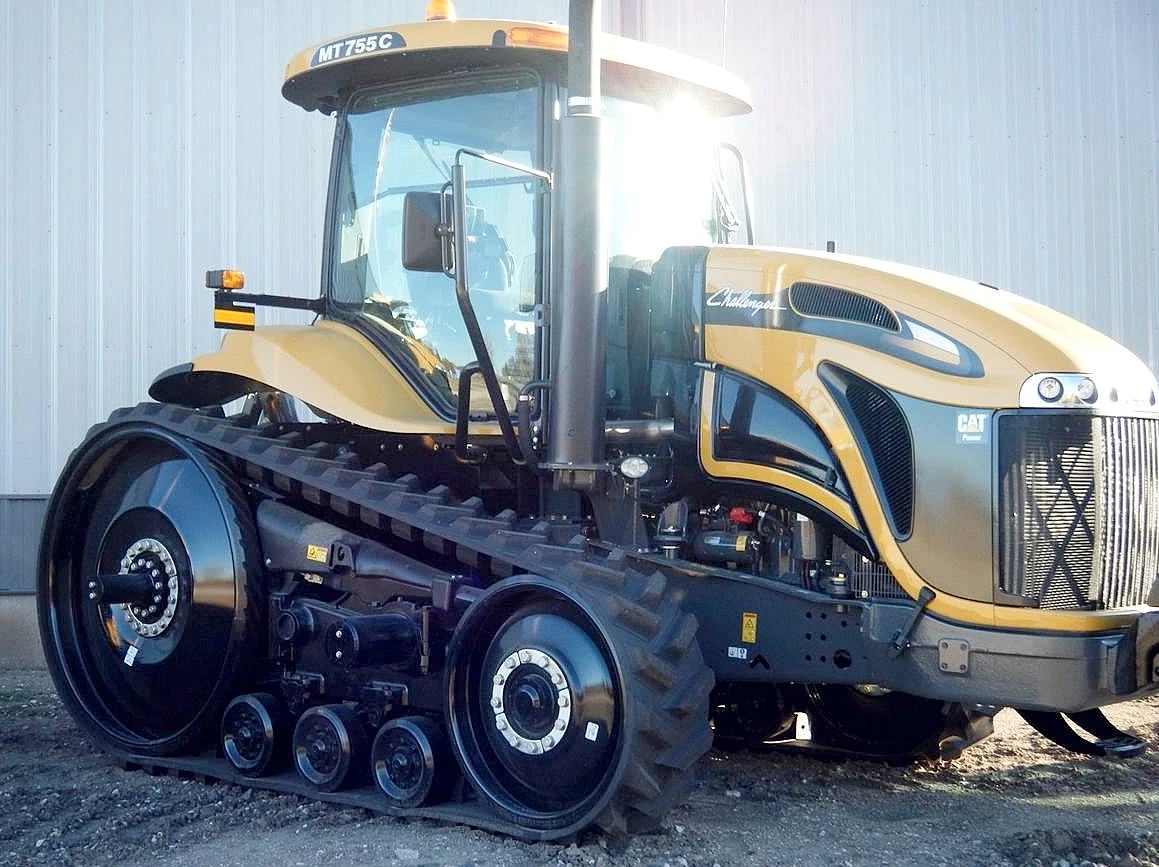

Challenger MT755C
Challenger MT755C — MT700C Series · 301 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
301 hp
Max power
235.6 kW
Weight
14095 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Agricultural Crawler tractorReference
Built in Jackson, Minnesota, USAReference
Original price was $228,190 in 2009Reference
DrivecrawlerReference
Steeringspeed sensitive differentialReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 8.8L 6-cylReference
Fuel tank446.6 LReference
Fuel tank787.3 LReference
Engine (gross)224.5 kWReference
Drawbar (tested)159.3 kWReference
Caterpillar C9 ACERTReference
turbocharged aftercooledReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement8.8 LReference
Bore/Stroke112 x 149 mmReference
EmissionsTier IIIReference
Power (gross)224.5 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power235.6 kWReference
Power at rated engine speed183.2 kWReference
Max power159.3 kWReference
Transmission
16-speed full power shiftReference
TransmissionCat PowerShiftReference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)182.7 kWReference
PTO (tested)235.6 kWReference
Typeclosed center pressure-flow compensatedReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow136.3 lpmReference
Total flow164.6 lpmReference
Total flow223.3 lpmReference
Rear TypeIII/IIINReference
Rear lift7257 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed207.0 kWReference
Dimensions
Wheelbase243 cmReference
Weight14095 kgReference
TracksReference
Length591 cmReference
Width337 cmReference
Height (cab)344 cmReference
Shipping weight14095 kgReference
Max weight16329 kgReference
Clearance (drawbar)36 cmReference
Gauge152 to 223 cmReference
Gauge152 to 304 cmReference
Gauge304 to 406 cmReference
MT755C Serial Number Location
Serial number plate on the main front left side of the tractor frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps185Reference
Batteries2Reference
Battery CCA1000Reference
Battery volts12Reference
Challenger MT755C Tracks
Size18-inch beltsReference
Option14-inch beltsReference
Option16-inch beltsReference
Option25-inch beltsReference
Option30-inch beltsReference
Test results
Diesel 16-speed crawlerOctober 25 - November 2, 2005Link: OCED Tractor Test 1859A fileReference
PTO performanceReference
Fuel use65.5 l/hourReference
Fuel use54.9 l/hourReference
Fuel use60.2 l/hourReference
Drawbar performanceReference
Fuel use54.5 l/hourReference
Gear 6 used for power test.Reference
Max pull13729 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
