Tractor · 2014Unverified

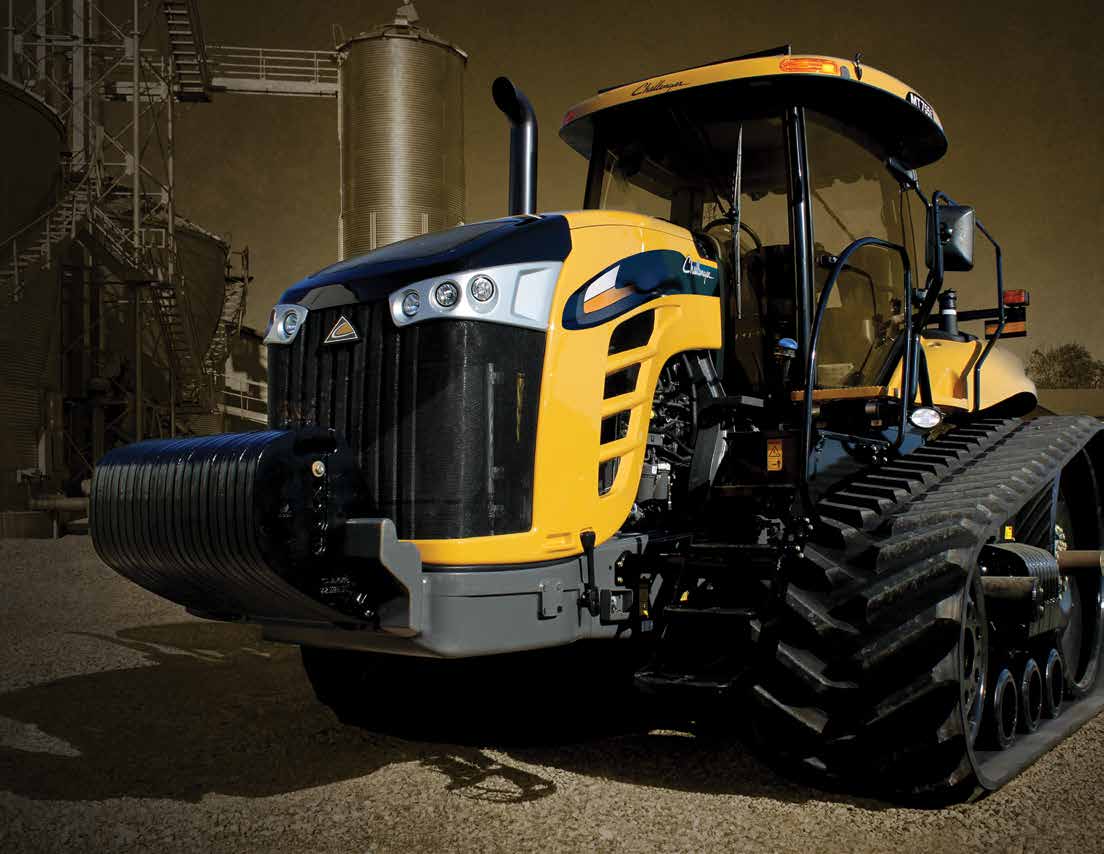

Challenger MT755E
Challenger MT755E — MT700E Series · 350 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
350 hp
Max power
243.2 kW
Weight
13667 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Agricultural Crawler tractorReference
Built in Jackson, Minnesota, USAReference
DrivecrawlerReference
Steeringelectro-hydraulic differentialReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
AGCO POWER 9.8L 7-cyl dieselReference
Fuel tank658.6 LReference
Fuel tank942.5 LReference
Exhaust fluid (DEF)87.1 LReference
Engine (gross)261.0 kWReference
Drawbar (tested)188.2 kWReference
AGCO POWERReference
turbocharged dieselReference
7-cylinder 28-valveReference
liquid-cooledReference
Displacement9.8 LReference
Bore/Stroke111 x 145 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power (gross)261.0 kWReference
Maximum Power281.9 kWReference
Rated RPM2100Reference
Torque1685.5 NmReference
Torque RPM1500Reference
Starter volts12Reference
Max power243.2 kWReference
Power at rated engine speed212.4 kWReference
Max power188.2 kWReference
Transmission
16-speed full power shiftReference
TransmissionCaterpillarReference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (tested)243.2 kWReference
Typeclosed-center pressure-flow compensated (PFC)Reference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow219.9 lpmReference
Pump flow321.7 lpmReference
SCV flow99.9 lpmReference
SCV flow136.3 lpmReference
Rear TypeIVN/IIIReference
Rear lift7257 kgReference
DrawbarCat. 4 standardReference
DrawbarCat. 3 optionalReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed235.7 kWReference
Dimensions
Weight13667 kgReference
14-inch tracksReference
Gauge182 to 223 cmReference
Gauge203 to 304 cmReference
Gauge304 to 406 cmReference
Shipping13667 kgReference
Max Drawbar4536 kgReference
Max Drawbar5443 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps300 (2x 150amp)Reference
Batteries2Reference
Battery volts12Reference
Challenger MT755E Tracks
Width35 cmReference
Width40 cmReference
Width45 cmReference
Width63 cmReference
Width76 cmReference
Width86 cmReference
Capacities
Max capacity17690 kgReference
Test results
Diesel 16-speed crawlerMay 27 - June 2, 2014Link: OCED Tractor Test 2087 fileReference
PTO performanceReference
Fuel use68.1 l/hourReference
Fuel use69.3 l/hourReference
Fuel use70.8 l/hourReference
Drawbar performanceReference
Fuel use69.6 l/hourReference
Gear 8 used for power test.Reference
Max pull14076 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
