Tractor · 2012Unverified

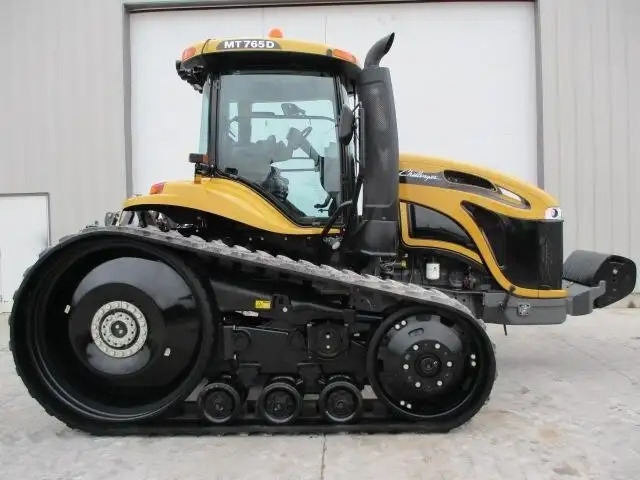

Challenger MT765D

Name: Challenger MT765D
Brand: Challenger

Challenger MT765D — MT700D Series · 350 hp. Reference specifications; pending source verification.

The Challenger MT765D is a tractor with an output of approximately 350 hp, positioning it at the upper end of its class. It was produced from 2012 to 2013. The tractor features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, coupled with a tracked undercarriage and a powershift transmission. Its operating weight is listed at 14,095 kg, making it suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

350 hp

Max power

252.5 kW

Weight

14095 kg

Catalogue coverage

Variants represented

Richest spec table

102 rows

Recorded power

350 hp

Recorded weight

14095 kg

Transmissions

16-speed full power shift

Production years

2012-2013

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Agricultural Crawler tractorReference

Built in Jackson, Minnesota, USAReference

DrivecrawlerReference

Steeringelectro-hydraulic differentialReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Engine

AGCO POWER 8.4L 6-cyl dieselReference

Fuel tank412.6 LReference

Fuel tank639.7 LReference

Exhaust fluid (DEF)68.1 LReference

Engine (gross)261.0 kWReference

Drawbar (tested)199.5 kWReference

AGCO POWERReference

turbocharged air-to-air intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

EmissionsInterim Tier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Power (gross)261.0 kWReference

Maximum Power287.8 kWReference

Starter volts12Reference

Max power252.5 kWReference

Power at rated engine speed224.2 kWReference

Max power199.5 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Emissions complianceInterim Tier IV || selective catalytic reduction (SCR)Reference

Bore and stroke4.370x5.709 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed full power shiftReference

TransmissionCaterpillarReference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

Clutchhydraulic wet discReference

Transmission TypePowershiftReference

forward and reverse optionsCaterpillar : full power shift : 16F and 4RReference

Track Drive type4WDReference

PTO & Hydraulics

PTO (claimed)212.5 kWReference

PTO (tested)252.5 kWReference

Typeclosed-center pressure-flow compensated (PFC)Reference

Pressure200.0 barReference

Valves4 to 6Reference

Pump flow164.6 lpmReference

Pump flow223.3 lpmReference

SCV flow136.3 lpmReference

Rear TypeIII/IIINReference

Rear lift7257 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Power at rated PTO speed245.6 kWReference

Dimensions

Weight14095 kgReference

14-inch tracksReference

Gauge182 to 223 cmReference

Gauge203 to 304 cmReference

Gauge304 to 406 cmReference

Shipping14095 kgReference

Max Drawbar4536 kgReference

Max Drawbar5443 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps300 (2x 150amp)Reference

Batteries2Reference

Battery volts12Reference

Challenger MT765D Tracks

Width35 cmReference

Width40 cmReference

Width45 cmReference

Width63 cmReference

Width76 cmReference

Capacities

Max capacity16329 kgReference

Capacity513.8 ciReference

Diesel exhaust fluid (DEF) tank68.1 LReference

Test results

Diesel 16-speed crawlerMay 23 - 31, 2013Link: OCED Tractor Test 2062 fileReference

PTO performanceReference

Fuel use66.6 l/hourReference

Fuel use62.8 l/hourReference

Drawbar performanceReference

Gear 8 used for power test.Reference

Max pull13578 kgReference

Gear 3 used for pull test.Reference

General

Make & ModelChallengerReference

Cruise controlAvailableReference

Country of manufacturerUSAReference

Hydraulics

Capacity Valves24 valveReference

Hydraulics Typeclosed-center pressure-flow compensated (PFC)Reference

Maximum operating pressure2,900 psiReference

Remote Valves4 to 6 ValvesReference

Rear Hitch category (SAE designation)Category III/IIINReference

Rear Hitch maximum lift capacity7,257.5 kgReference

Power

Rated Power350 hpReference

PTO

PTO Power285 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typeelectro-hydraulic differentialReference

Dimensions & weight

Overall weight14,095.4 kgReference

Track width76.2 cmReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard with Air ConditionerReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
