Tractor · 2014Unverified

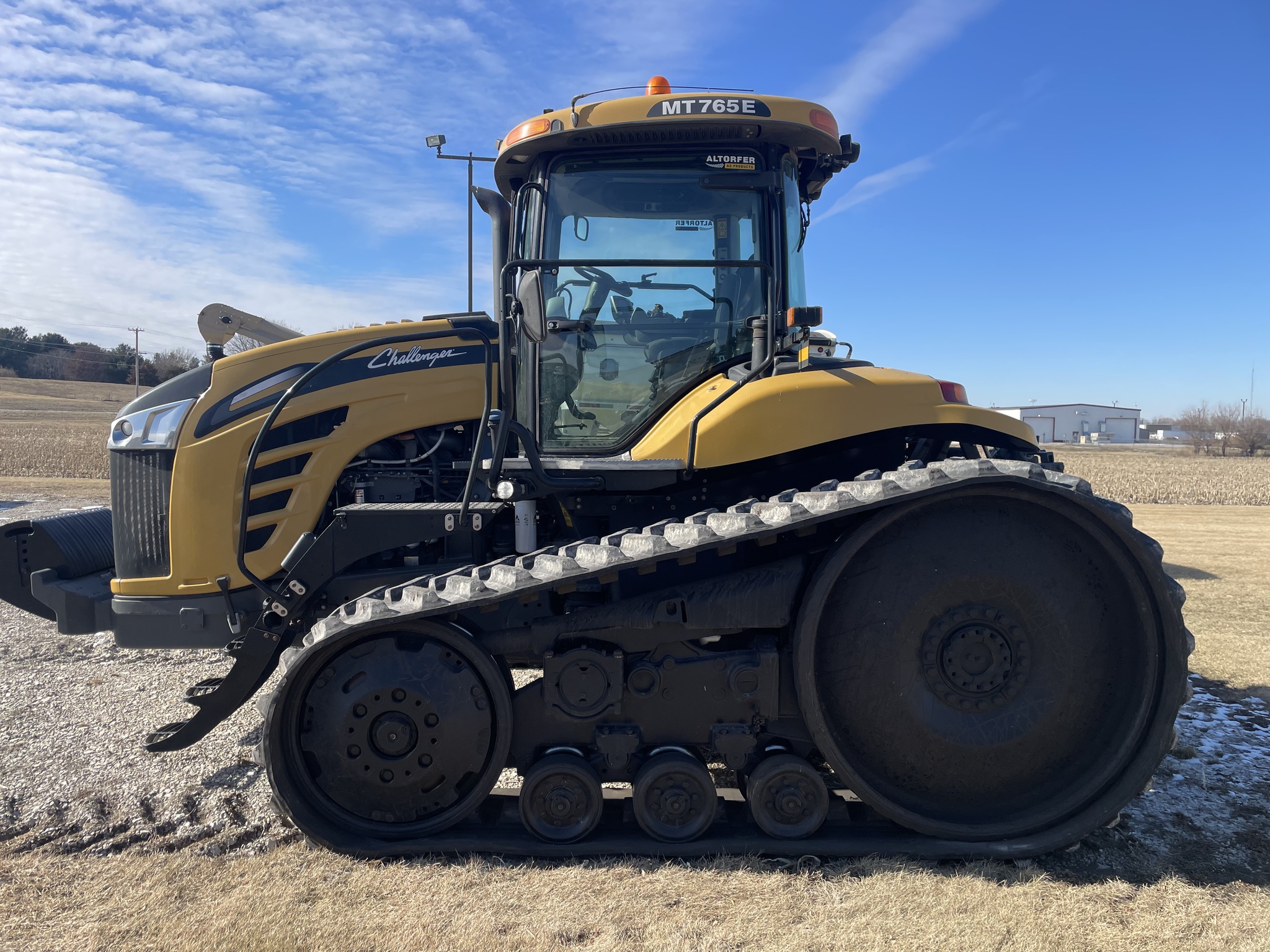

Challenger MT765E

Name: Challenger MT765E
Brand: Challenger

Challenger MT765E — MT700E Series · 375 hp. Reference specifications; pending source verification.

The Challenger MT765E is a tractor model with a rating of approximately 375 hp, placing it at the more powerful end of its class. It was manufactured from 2014 to 2017. The MT765E features a 7-cylinder turbocharged diesel liquid-cooled engine, coupled with a tracked undercarriage and a powershift transmission. Its operating weight is 13667 kg and it is suited for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

375 hp

Max power

266.3 kW

Weight

13667 kg

Catalogue coverage

Variants represented

Richest spec table

111 rows

Recorded power

375 hp

Recorded weight

13667 kg

Transmissions

16-speed full power shift

Production years

2014-2017

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Agricultural Crawler tractorReference

Built in Jackson, Minnesota, USAReference

DrivecrawlerReference

Steeringelectro-hydraulic differentialReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Engine

AGCO POWER 9.8L 7-cyl dieselReference

Fuel tank658.6 LReference

Fuel tank942.5 LReference

Exhaust fluid (DEF)87.1 LReference

Engine (gross)279.6 kWReference

Drawbar (tested)202.9 kWReference

AGCO POWERReference

turbocharged dieselReference

7-cylinder 28-valveReference

liquid-cooledReference

Displacement9.8 LReference

Bore/Stroke111 x 145 mmReference

EmissionsTier IVReference

Emission controlselective catalytic reduction (SCR)Reference

Power (gross)279.6 kWReference

Maximum Power302.0 kWReference

Rated RPM2100Reference

Torque1808.9 NmReference

Torque RPM1500Reference

Starter volts12Reference

Max power266.3 kWReference

Power at rated engine speed232.6 kWReference

Max power202.9 kWReference

Fuel TypedieselReference

No of Cylinders7 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceTier IV || selective catalytic reduction (SCR)Reference

Engine torque at rated speed605.1 kgReference

Bore and stroke4.370x5.709 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed full power shiftReference

TransmissionCaterpillarReference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

Clutchhydraulic wet discReference

Transmission TypePowershiftReference

forward and reverse optionsCaterpillar - 16F and 4RReference

Track Drive type4WDReference

PTO & Hydraulics

PTO (tested)266.3 kWReference

Pressure200.0 barReference

Valves4 to 6Reference

Pump flow219.9 lpmReference

Pump flow321.7 lpmReference

SCV flow99.9 lpmReference

SCV flow136.3 lpmReference

Rear TypeIVN/IIIReference

Rear lift7257 kgReference

DrawbarCat. 4 standardReference

DrawbarCat. 3 optionalReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Power at rated PTO speed256.7 kWReference

Dimensions

Weight13667 kgReference

14-inch tracksReference

Gauge182 to 223 cmReference

Gauge203 to 304 cmReference

Gauge304 to 406 cmReference

Shipping13667 kgReference

Max Drawbar4536 kgReference

Max Drawbar5443 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps300 (2x 150amp)Reference

Batteries2Reference

Battery volts12Reference

Battery options2Reference

Challenger MT765E Tracks

Width35 cmReference

Width40 cmReference

Width45 cmReference

Width63 cmReference

Width76 cmReference

Width86 cmReference

Capacities

Max capacity17690 kgReference

Capacity598 ciReference

Diesel exhaust fluid (DEF) tank87.1 LReference

Test results

Diesel 16-speed crawlerJune 4 - 10, 2014Link: OCED Tractor Test 2088 fileReference

PTO performanceReference

Fuel use73.8 l/hourReference

Fuel use74.6 l/hourReference

Fuel use76.1 l/hourReference

Drawbar performanceReference

Fuel use74.2 l/hourReference

Gear 8 used for power test.Reference

Max pull13651 kgReference

Gear 4 used for pull test.Reference

General

Make & ModelChallenger (a part of AGCO)Reference

Drawbar categoryCat. 4 standard | Cat. 3 optionalReference

Drawbar Maximum vertical load5,443.1 kgReference

Country of manufacturerUSAReference

Hydraulics

Capacity Valves28 ValvesReference

Maximum operating pressure2,900 psiReference

Remote Valves4 to 6 ValvesReference

Rear Hitch category (SAE designation)Category IVN/IIIReference

Rear Hitch maximum lift capacity7,257.5 kgReference

Power

Rated Power375 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typeelectro-hydraulic differentialReference

Dimensions & weight

Overall weight13,667.2 kgReference

Track width86.4 cmReference

Operator station

Cab AvailabilityAvailableReference

Cab Air conditioning, temperature differentialCab standard.Reference

Seat SuspensionTrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
