Tractor · 2002Unverified

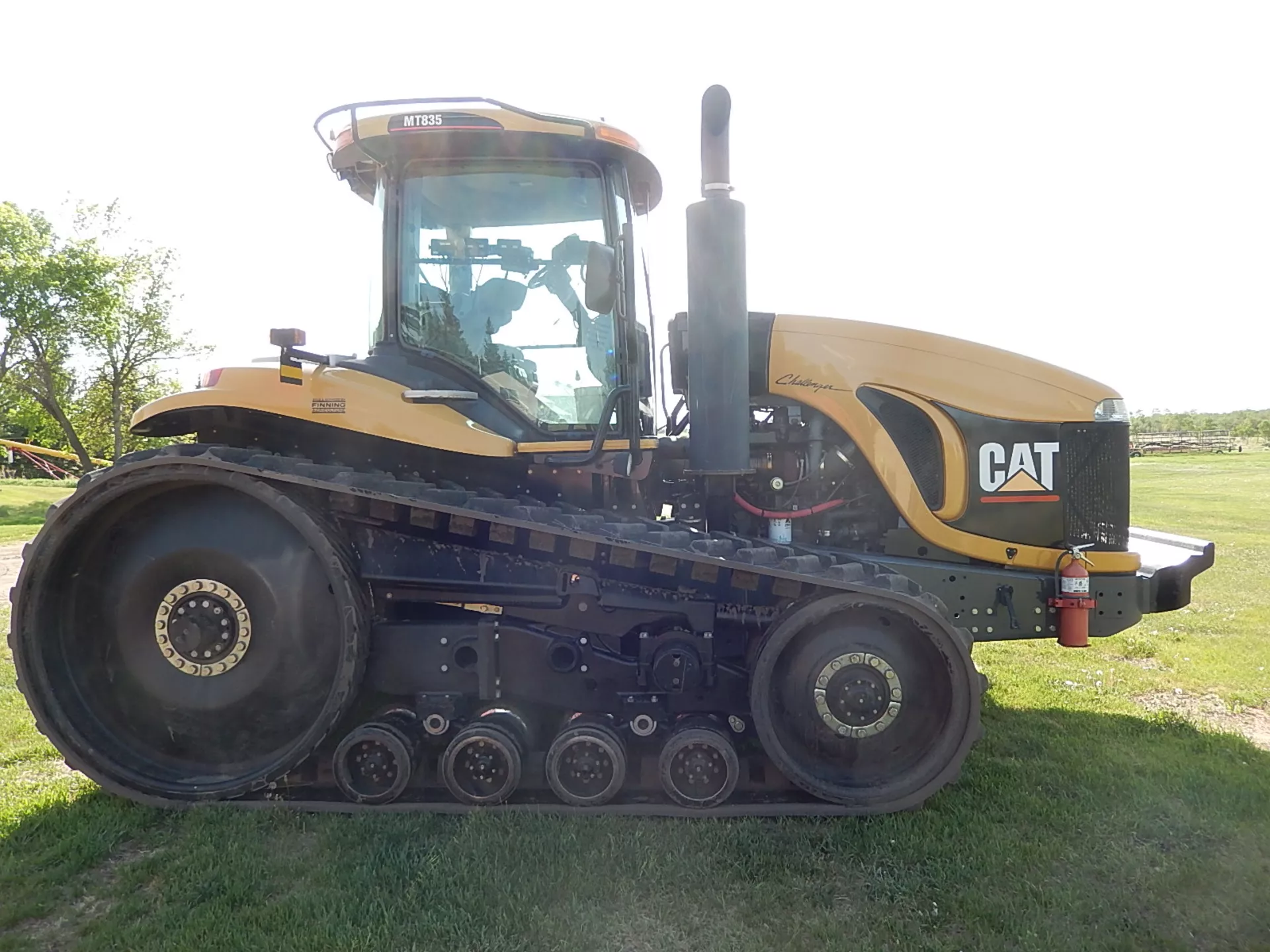

Challenger MT835

Name: Challenger MT835
Brand: Challenger

Challenger MT835 — MT800 Series · 340 hp. Reference specifications; pending source verification.

The Challenger MT835 is a tractor characterised by its 340 hp rated output, positioning it among the more powerful machines in its class. Manufactured between 2002 and 2004, this tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a tracked undercarriage and powershift transmission. The listed weight is 18144 kg, and it is designed for large-scale operations, typically covering areas of 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

340 hp

Max power

266.9 kW

Weight

18144 kg

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

340 hp

Recorded weight

18144 kg

Transmissions

16-speed full power shift

Production years

2002-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Agricultural Crawler tractorReference

Built in USAReference

DrivecrawlerReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Caterpillar 11.9L 6-cyl dieselReference

Engine (gross)253.5 kWReference

Drawbar (tested)196.3 kWReference

Caterpillar C12Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement11.9 LReference

Bore/Stroke130 x 150 mmReference

Power (gross)253.5 kWReference

Air cleanerdual paper elementsReference

Compression16.0:1Reference

Rated RPM2100Reference

Starter volts12Reference

Max power266.9 kWReference

Power at rated engine speed227.6 kWReference

Max power196.3 kWReference

Transmission

16-speed full power shiftReference

TransmissionCaterpillarReference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

PTO (claimed)205.1 kWReference

PTO (tested)266.9 kWReference

Hydraulic system264.9 LReference

Typeclosed center load sensingReference

Capacity264.9 LReference

Pressure200.0 barReference

Rear valves4 to 6Reference

Pump flow164.6 lpmReference

Pump flow223.3 lpmReference

SCV flow113.6 lpmReference

Rear TypeIVNReference

Rear lift8845 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Power at rated PTO speed244.9 kWReference

Capacities

Fuel1154.4 LReference

Fuel1249.0 LReference

Max capacity27216 kgReference

Dimensions

Wheelbase299 cmReference

Weight18144 kgReference

18-inch tracksReference

Length675 cmReference

Width360 cmReference

Height (cab)350 cmReference

Height (exhaust)352 cmReference

Ground clearance47 cmReference

Gauge228 to 325 cmReference

Shipping18144 kgReference

Ballasted22680 kgReference

MT835 Serial Numbers

Location:Serial number plate on the left side of the tractor frame.Reference

2002BAM20000Reference

2003BAM30000Reference

2004BAM40000Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps160Reference

Batteries3Reference

Battery volts12Reference

Challenger MT835 Tracks

Width45 cmReference

Width69 cmReference

Width76 cmReference

Width91 cmReference

Test results

Diesel 16-speed crawlerApril 2 - May 13, 2003Link: OCED Tractor Test 1823 fileReference

PTO performanceReference

Fuel use68.1 l/hourReference

Fuel use64.0 l/hourReference

Fuel use65.9 l/hourReference

Drawbar performanceReference

Fuel use64.3 l/hourReference

Gear 6 used for power test.Reference

Max pull91 kgReference

Gear 2 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
