Tractor · 2014Unverified

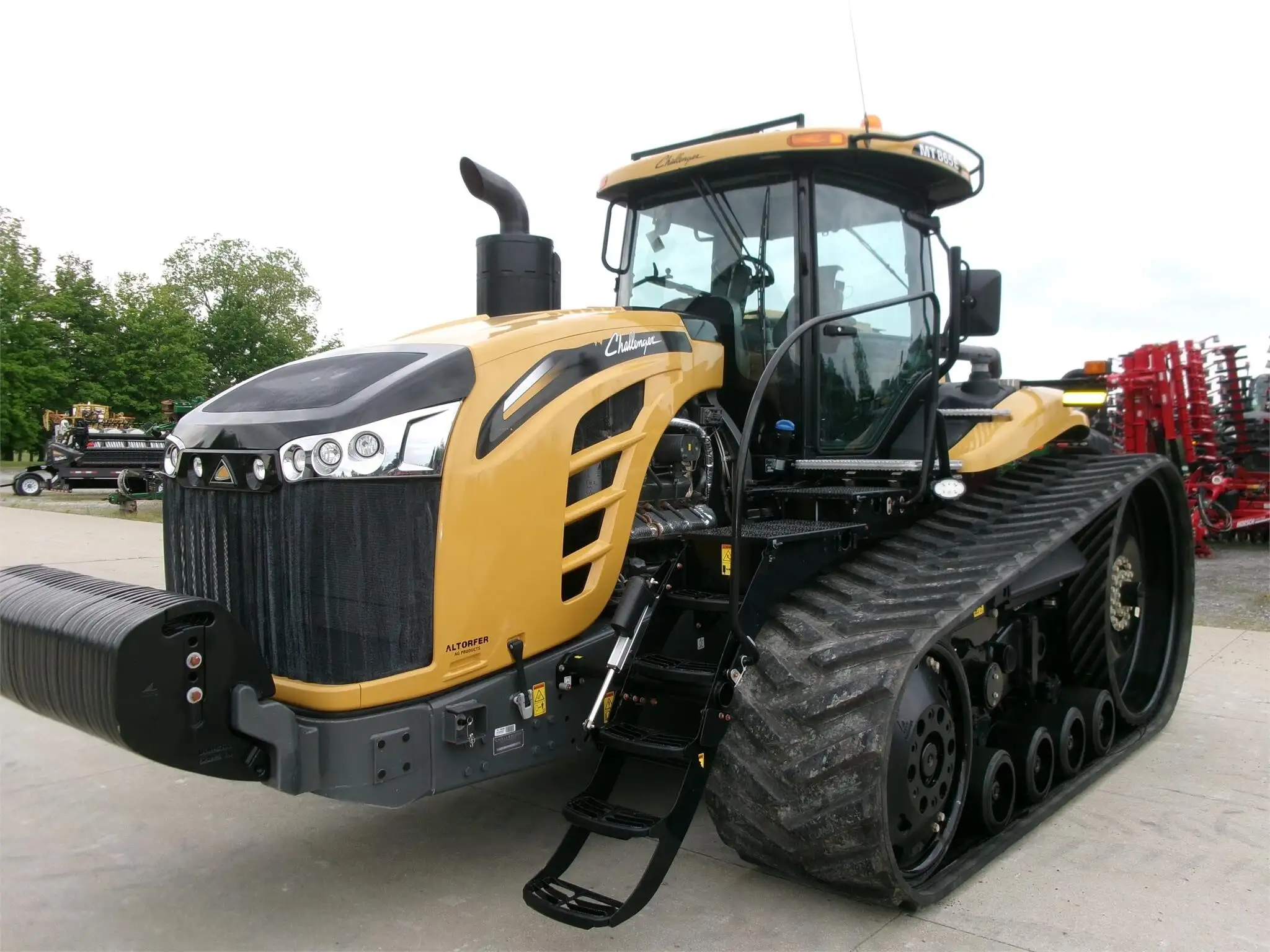

Challenger MT865E
Challenger MT865E — MT800E Series · 540 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
540 hp
Max power
388.7 kW
Weight
19321 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Agricultural Crawler tractorReference
Built in Jackson, Minnesota, USAReference
DrivecrawlerReference
Steeringpower differentialReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 16.8L 12-cyl dieselReference
Fuel tank1249.0 LReference
Exhaust fluid (DEF)115.4 LReference
Engine (gross)402.7 kWReference
Drawbar (tested)292.4 kWReference
AGCO PowerReference
turbocharged dieselReference
12-cylinder 48-valveReference
liquid-cooledReference
Displacement16.8 LReference
Bore/Stroke111 x 145 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power (gross)402.7 kWReference
Maximum Power434.7 kWReference
Torque2599.5 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Max power388.7 kWReference
Power at rated engine speed336.7 kWReference
Max power292.4 kWReference
Transmission
16-speed full power shiftReference
TransmissionCaterpillarReference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
Clutchhydraulic wet discReference
PTO & Hydraulics
PTO (claimed)316.9 kWReference
PTO (tested)388.7 kWReference
Typeclosed center pressure flow compensatedReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow219.9 lpmReference
Pump flow321.7 lpmReference
SCV flow99.9 lpmReference
SCV flow136.3 lpmReference
Rear lift8845 kgReference
DrawbarCat. 4Reference
DrawbarCat. 5Reference
Rear PTOindependentReference
ClutchelectronicReference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed386.2 kWReference
Dimensions
Weight19321 kgReference
18-inch tracksReference
Front axleBarReference
Bar rear axleReference
Gauge228 to 325 cmReference
Shipping19321 kgReference
Max Drawbar4536 kgReference
Max Drawbar5670 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps300 (2x 150)Reference
Batteries4Reference
Battery CCA1000Reference
Battery volts12Reference
Challenger MT865E Tracks
Width45 cmReference
Width69 cmReference
Width76 cmReference
Width91 cmReference
Capacities
Max capacity25362 kgReference
Test results
Diesel 16-speed crawlerOctober 21 - 28, 2016Link: OCED Tractor Test 2168 fileReference
PTO performanceReference
Fuel use109.4 l/hourReference
Fuel use104.5 l/hourReference
Fuel use111.3 l/hourReference
Drawbar performanceReference
Gear 6 used for power test.Reference
Max pull19795 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
