Tractor · 2005Unverified

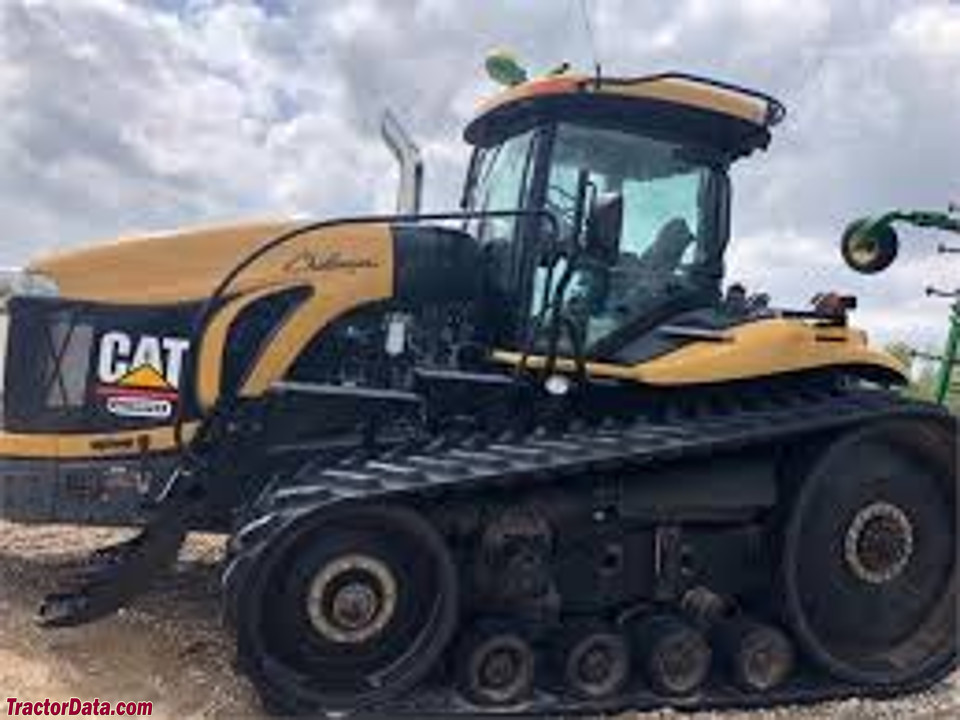

Challenger MT875B

Name: Challenger MT875B
Brand: Challenger

Challenger MT875B — MT800B Series · 570 hp. Reference specifications; pending source verification.

The Challenger MT875B is a high-powered tractor with a rating of 570 hp, positioning it in the higher-powered category of its class. Manufactured from 2005 to 2008, it is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, driving a tracked undercarriage via a powershift transmission. The listed weight of the MT875B is 19141 kg, and it is suitable for large-scale operations covering areas in excess of 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

570 hp

Max power

321.4 kW

Weight

19141 kg

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

570 hp

Recorded weight

19141 kg

Transmissions

16-speed full power shift

Production years

2005-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Agricultural Crawler tractorReference

Built in Jackson, Minnesota, USAReference

DrivecrawlerReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Caterpillar 18.1L 6-cyl dieselReference

Fuel tank1249.0 LReference

Engine (gross)425.0 kWReference

Drawbar (tested)321.4 kWReference

Caterpillar C18Reference

turbocharged dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement18.1 LReference

Bore/Stroke145 x 183 mmReference

EmissionsTier IIIReference

Power (gross)425.0 kWReference

Air cleanerdual paper elementsReference

Compression16.5:1Reference

Rated RPM2100Reference

Starter volts12Reference

Max power321.4 kWReference

Transmission

16-speed full power shiftReference

TransmissionCat PowershiftReference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)316.9 kWReference

Typeclosed center PFCReference

Pressure200.0 barReference

Rear valves4 to 6Reference

Total flow164.6 lpmReference

Total flow223.3 lpmReference

Dimensions

Wheelbase299 cmReference

Weight19141 kgReference

27.5-inch tracksReference

Length675 cmReference

Width357 cmReference

Height350 cmReference

Shipping weight19141 kgReference

Max weight22680 kgReference

Ground clearance36 cmReference

Electrical

GroundnegativeReference

Charging amps185Reference

Batteries4Reference

Battery CCA1000Reference

Battery volts12Reference

Challenger MT875B Tracks

Width69 cmReference

Width76 cmReference

Width91 cmReference

Test results

Diesel 16-speed crawlerApril 25 - May 4, 2005Link: OCED Tractor Test 1879 fileReference

Drawbar performanceReference

Fuel use106.7 l/hourReference

Gear 8 used for power test.Reference

Max pull19121 kgReference

Gear 3 used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
