Tractor · 2009Unverified

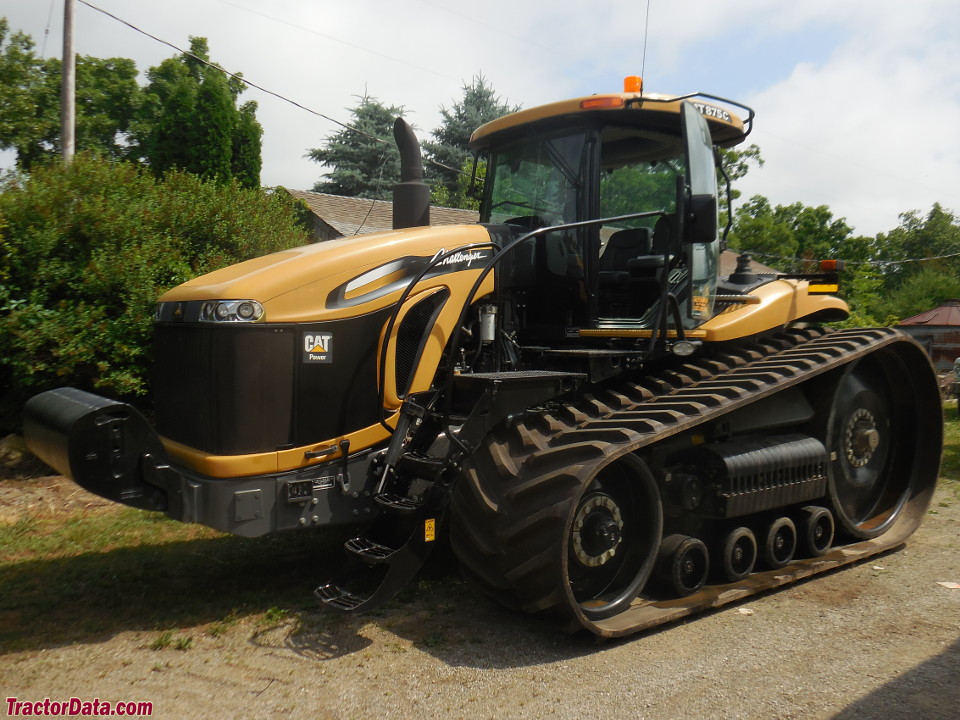

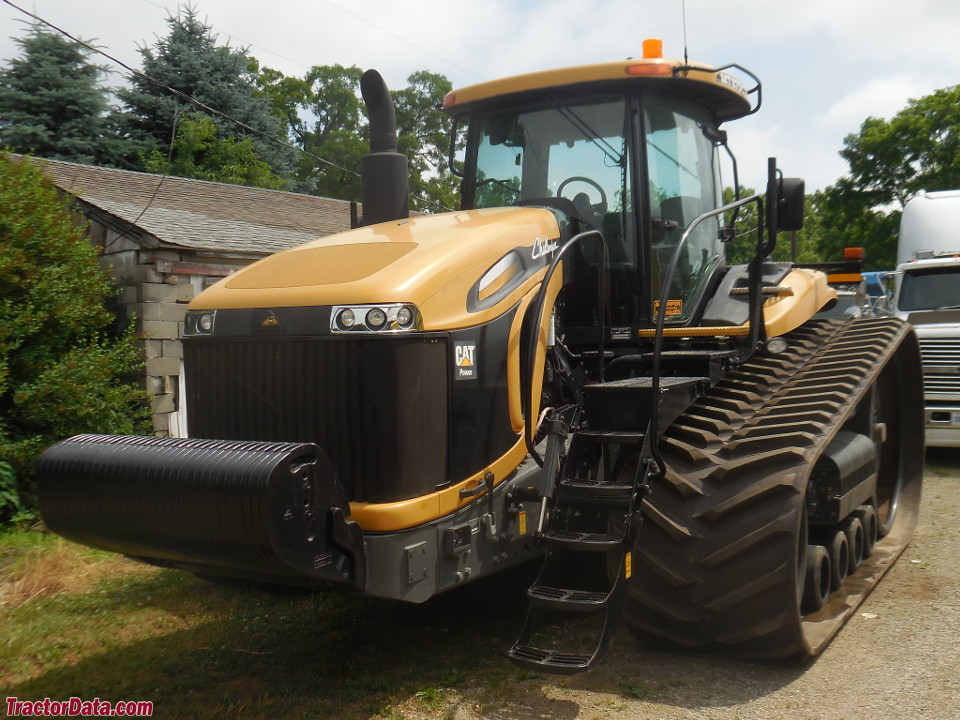

Challenger MT875C
Challenger MT875C — MT800C Series · 585 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
585 hp
Max power
437.3 kW
Weight
19141 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Agricultural Crawler tractorReference
Built in Jackson, Minnesota, USAReference
Original price was $473,854 in 2013Reference
DrivecrawlerReference
Steeringspeed sensitive differentialReference
Hydraulic wet discs brakesReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 0.0L 6-cyl dieselReference
Fuel tank1249.0 LReference
Engine (gross)436.2 kWReference
Drawbar (tested)329.0 kWReference
Caterpillar C18 ACERTReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement18.1 LReference
Bore/Stroke145 x 183 mmReference
EmissionsTier IIIReference
Power (gross)436.2 kWReference
Maximum Power470.5 kWReference
Fuel systemmechanical electric injector unit (MEUI)Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power437.3 kWReference
Power at rated engine speed388.7 kWReference
Max power329.0 kWReference
Transmission
16-speed full power shiftReference
TransmissionCaterpillar PowershiftReference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
Clutchhydraulic wet discsReference
PTO & Hydraulics
PTO (claimed)316.9 kWReference
PTO (tested)437.3 kWReference
Typeclosed center pressure-flow compensatedReference
Pressure200.0 barReference
Valves4 to 6Reference
SCV flow136.3 lpmReference
Total flow164.6 lpmReference
Total flow223.3 lpmReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed415.0 kWReference
Dimensions
Wheelbase299 cmReference
Weight19141 kgReference
30-inch tracksReference
Length685 cmReference
Width360 cmReference
Height (cab)350 cmReference
Shipping weight19141 kgReference
Max weight22680 kgReference
Clearance (drawbar)36 cmReference
Gauge228 to 325 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps185Reference
Batteries4Reference
Battery CCA1000Reference
Battery volts12Reference
Challenger MT875C Tracks
Width76 cmReference
Width45 cmReference
Width91 cmReference
Test results
Diesel 16-speed crawlerNovember 11 - 20, 2009Link: OCED Tractor Test 1965 fileReference
PTO performanceReference
Fuel use121.9 l/hourReference
Fuel use122.3 l/hourReference
Fuel use125.3 l/hourReference
Drawbar performanceReference
Fuel use123.4 l/hourReference
Gear 8 used for power test.Reference
Max pull14853 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
