Tractor · 2009Unverified

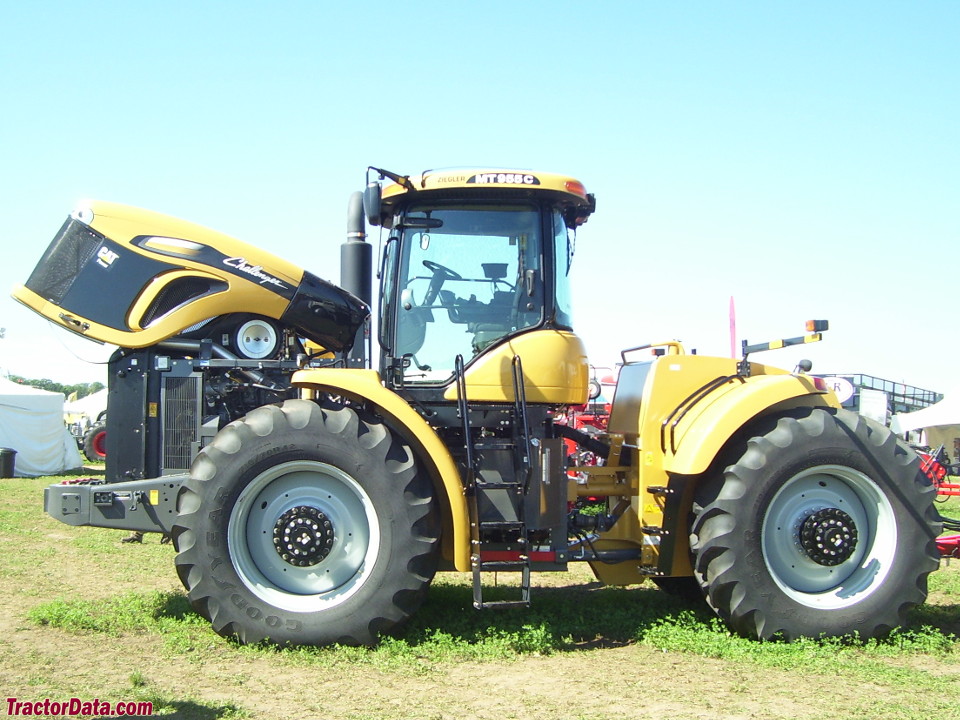

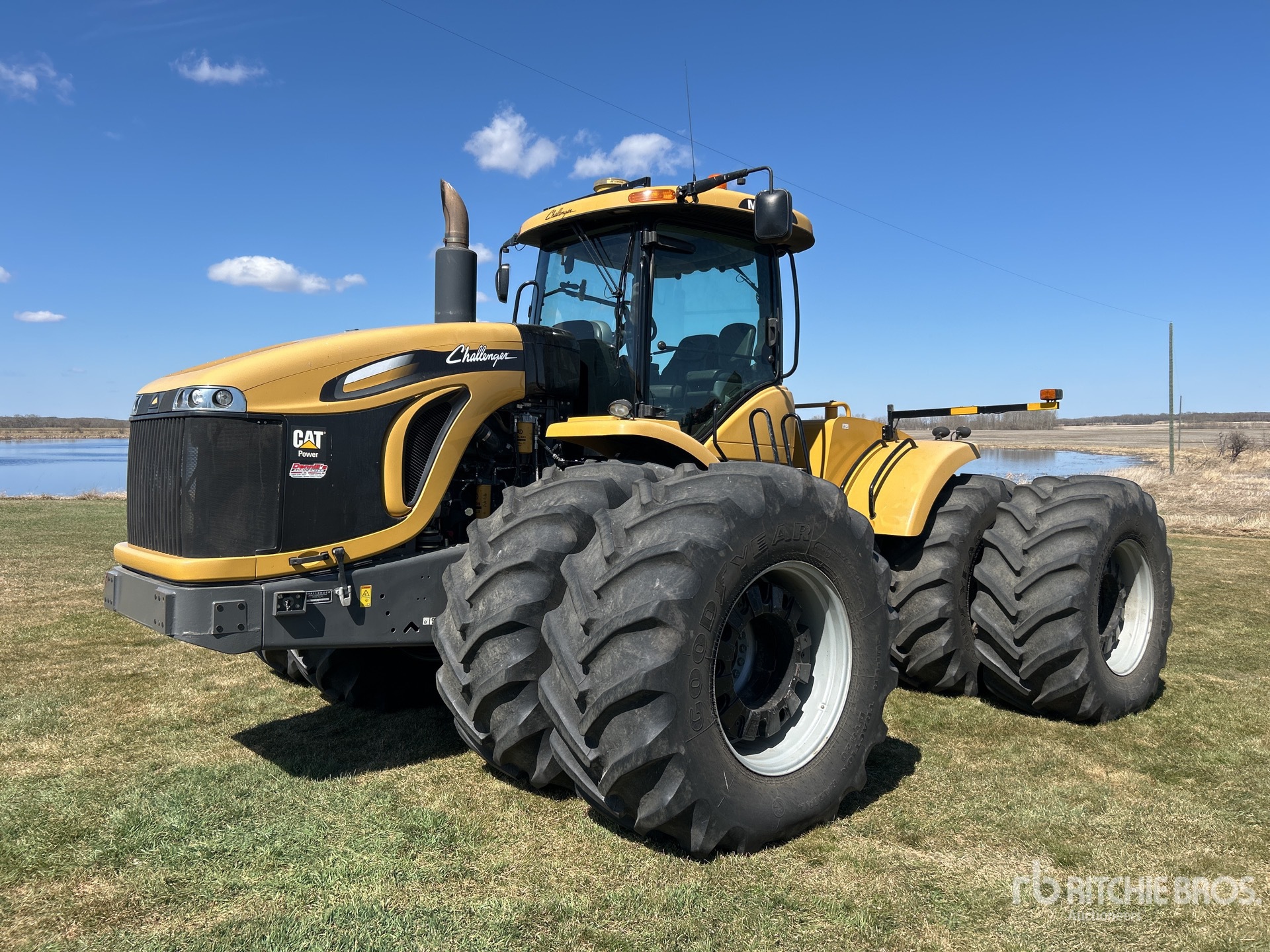

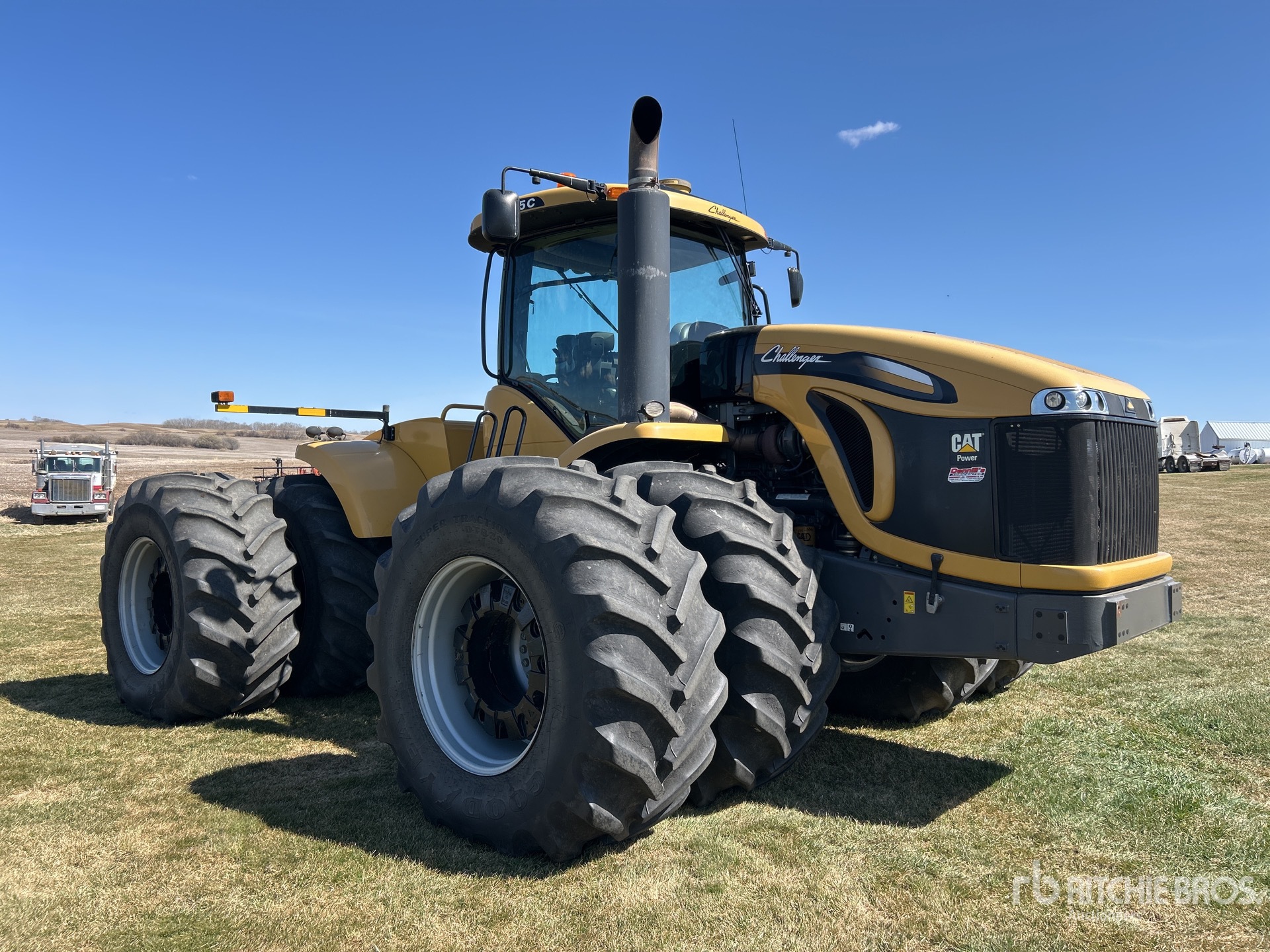

Challenger MT955C

Name: Challenger MT955C
Brand: Challenger

Challenger MT955C — MT900C Series · 405 hp. Reference specifications; pending source verification.

The Challenger MT955C is a tractor rated at approximately 405 hp, placing it at the higher end of its class in terms of power output. The MT955C was in production from 2009 to 2014. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. The tractor has an operating weight of 17,811 kg and is suitable for large-scale operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

405 hp

Max power

336.4 kW

Weight

17811 kg

Catalogue coverage

Variants represented

Richest spec table

122 rows

Recorded power

405 hp

Recorded weight

17811 kg

Transmissions

16-speed full power shift

Production years

2009-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Four-wheel Drive (4WD) tractorReference

Built in Jackson, Minnesota, USAReference

Original price was $303,157 in 2009Reference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulic front and rear optionalReference

Articulated power steeringReference

Cab standard with air-conditioning.Reference

Engine

Caterpillar 15.1L 6-cyl dieselReference

Fuel tank1476.2 LReference

Engine354.2 kWReference

Drawbar (tested)297.9 kWReference

Caterpillar C15 ACERTReference

turbocharged aftercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement15.1 LReference

Bore/Stroke137 x 171 mmReference

EmissionsTier IIIReference

Power354.2 kWReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Max power336.4 kWReference

Power at rated engine speed301.8 kWReference

Max power297.9 kWReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Emissions complianceTier IIIReference

Bore and stroke5.4x6.75 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed full power shiftReference

TransmissionCaterpillar PowershiftReference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

Transmission TypePowershiftReference

forward and reverse optionsPowershift -16F and 4RReference

Wheel Drive4WDReference

Track Drive typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)287.1 kWReference

PTO (tested)336.4 kWReference

Typeclosed center pressure-flow compensatedReference

Pressure200.0 barReference

Valves4 to 6Reference

Pump flow136.3 lpmReference

Total flow164.6 lpmReference

Total flow223.3 lpmReference

Rear TypeIII/IVNReference

Rear TypeIVReference

Rear lift8845 kgReference

Rear PTOindependentReference

Rear PTO Type1000 (1.75)Reference

Power at rated PTO speed324.1 kWReference

Dimensions

Wheelbase394 cmReference

Weight17811 kgReference

Front tire710/70R42Reference

Rear tire710/70R42Reference

Ag front710/70R42Reference

Ag rear710/70R42Reference

Ag front800/70R38Reference

Ag front650/85R38Reference

Ag front620/70R46Reference

Ag front520/85R46Reference

Ag front520/85R42Reference

Ag front480/80R46Reference

Ag rear800/70R38Reference

Ag rear650/85R38Reference

Ag rear620/70R46Reference

Ag rear520/85R46Reference

Ag rear520/85R42Reference

Ag rear480/80R46Reference

Length756 cmReference

Width487 cmReference

Height (cab)383 cmReference

Shipping weight17811 kgReference

Max weight24494 kgReference

Front axle144 by 2997 mmReference

Bar rear axle144 by 2997 mmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps185Reference

Batteries4Reference

Battery CCA1000Reference

Battery volts12Reference

Total cold cranking amps1,000 CCAReference

Test results

Diesel power shift 4WDMay 20 - June 2, 2008Link: OCED Tractor Test 1929A fileReference

PTO performanceReference

Fuel use98.4 l/hourReference

Fuel use94.2 l/hourReference

Fuel use98.0 l/hourReference

Drawbar performanceReference

Fuel use97.7 l/hourReference

Gear 8 used for power test.Reference

Max pull23212 kgReference

Gear 3 used for pull test.Reference

General

Make & ModelChallenger (a part of AGCO)Reference

Cruise controlAvailableReference

Rear Axle TypeBar 5.7 by 118 inchesReference

Front Axle TypeBar: 5.7 by 118 inchesReference

Country of manufacturerUSAReference

Capacities

Capacity923 ciReference

Hydraulics

Capacity Valves24 valveReference

Pump Rated Output (total)59 gpmReference

Hydraulics Typeclosed center pressure-flow compensatedReference

Maximum operating pressure2,900 psiReference

Remote Valves4 to 6 valvesReference

Rear Hitch category (SAE designation)Category III/IVN, IVReference

Rear Hitch maximum lift capacity8,845 kgReference

PTO

PTO Power385 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Dimensions & weight

Height Over Cab383.5 cmReference

Overall Length756.9 cmReference

Overall Width487.7 cmReference

Overall weight17,810.7 kgReference

Wheels & tyres

Rear Wheel Type710/70R42Reference

Front Wheel Type710/70R42Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Steering & brakes

Steering typeArticulated powerReference
