Tractor · 2014Unverified

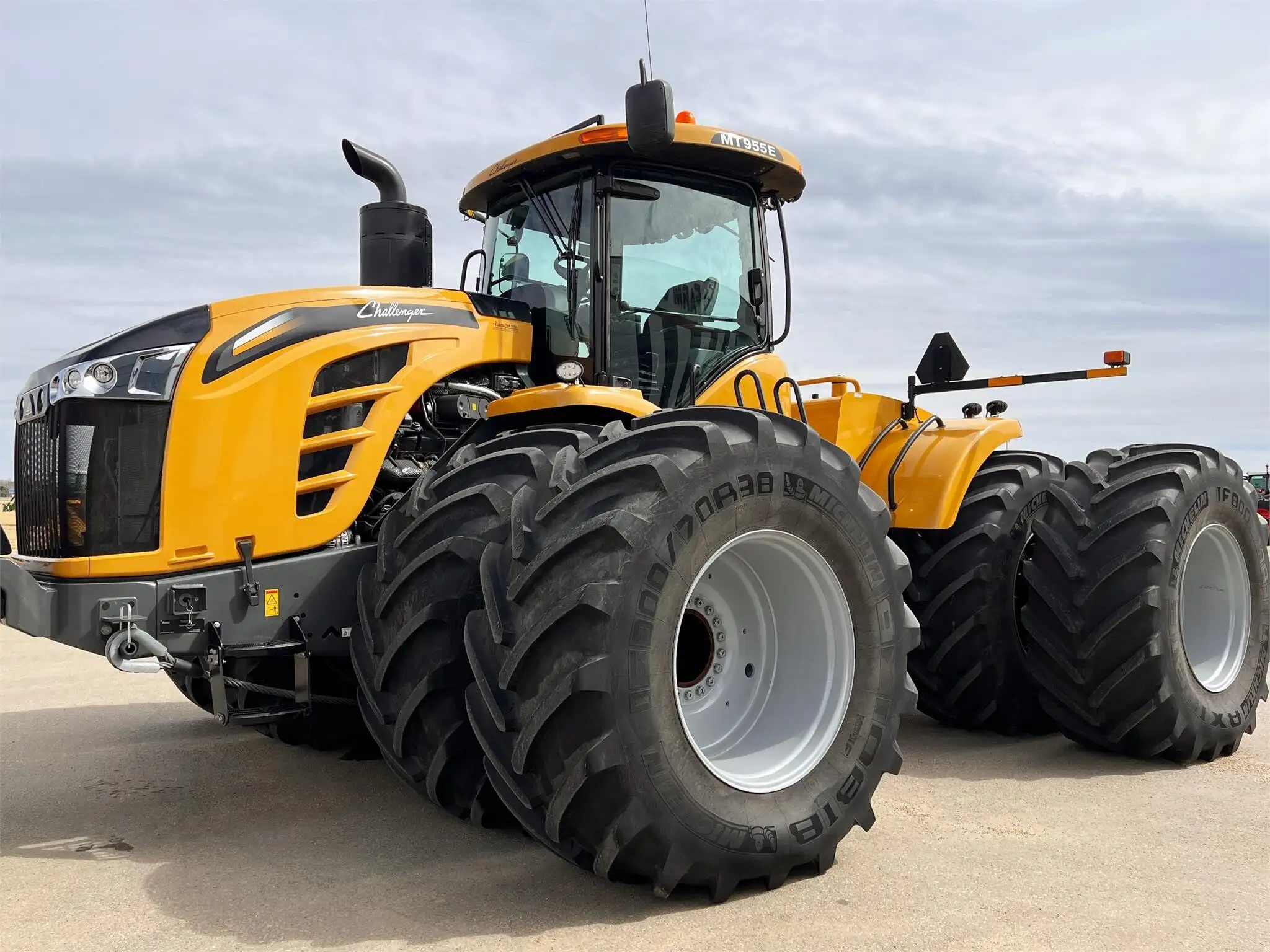

Challenger MT955E

Name: Challenger MT955E
Brand: Challenger

Challenger MT955E — MT900E Series · 400 hp. Reference specifications; pending source verification.

The Challenger MT955E is a tractor with a rating of approximately 400 hp, placing it at the powerful end of its class. Produced from 2014 to 2020, it features a 12-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a powershift transmission. The tractor has an operating weight of 21546 kg and is suitable for operations covering 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

400 hp

Max power

536 hp

Weight

21546 kg

Catalogue coverage

Variants represented

Richest spec table

86 rows

Recorded power

400 hp

Recorded weight

21546 kg

Transmissions

16-speed power shift

Production years

2014-2020

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChallenger (a part of AGCO)Reference

Four-wheel Drive (4WD) tractorReference

Built in Jackson, Minnesota, USAReference

Four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockelectro-hydraulicReference

Articulated power steeringReference

Hydraulic wet disc brakesReference

Pinnacle View Cab standard with air-conditioning. Auto-Guide 3000; AgCommandReference

Engine

AGCO Power 16.8L 12-cyl dieselReference

Fuel tank1514.0 LReference

Exhaust fluid (DEF)196.8 LReference

Engine372.9 kWReference

AGCO PowerReference

turbocharged dieselReference

12-cylinder 48-valveReference

liquid-cooledReference

Displacement16.8 LReference

EmissionsTier IVReference

Emission controlselective catalytic reductionReference

Power372.9 kWReference

Maximum Power399.7 kWReference

Rated RPM1900Reference

Torque2359.4 NmReference

Torque RPM1500Reference

Starter typeelectricReference

Fuel TypedieselReference

No of Cylinders12 CylinderReference

Rated engine speed1,900 RPMReference

Emissions complianceTier IV || selective catalytic reductionReference

Engine torque at rated speed789.3 kgReference

Cooling systemliquid-cooledReference

Transmission

16-speed power shiftReference

TransmissionCaterpillarReference

Typepower shiftReference

Gears16 forward and 4 reverseReference

Transmission TypePowershiftReference

forward and reverse options16 F and 4 RReference

Wheel Drive4WDReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)298.3 kWReference

Typeclosed center pressure-flow compensatedReference

Pressure200.0 barReference

Valves4 to 6Reference

Pump flow219.5 lpmReference

Pump flow321.7 lpmReference

SCV flow140.0 lpmReference

Rear lift8845 kgReference

DrawbarCat. 5Reference

DrawbarCat. 4Reference

Dimensions

Weight21546 kgReference

Front tire710/70R42Reference

Rear tire710/70R42Reference

Standard tires (ag)Front: 710/70R42. Rear: 710/70R42Reference

Rear axle144 mmReference

Shipping21546 kgReference

Max Drawbar5670 kgReference

Max Drawbar4536 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps300Reference

Batteries4Reference

Battery volts12Reference

Battery options4Reference

Capacities

Max capacity24494 kgReference

Capacity1,025 ciReference

Diesel exhaust fluid (DEF) tank196.8 LReference

General

Make & ModelChallenger (a part of AGCO)Reference

Drawbar categoryCat. 5Reference

Drawbar Maximum vertical load12,500 IbsReference

Rear Axle Type14.5 cmReference

Country of manufacturerUSAReference

Hydraulics

Capacity Valves48 valvesReference

Hydraulics Typeclosed center pressure-flow compensatedReference

Maximum operating pressure2,900 psiReference

Remote Valves4 to 6Reference

Rear Hitch maximum lift capacity8,845 kgReference

Power

Max Power536 hpReference

Rated Power500 hpReference

PTO

PTO Power400 hpReference

Steering & brakes

BrakesHydraulic wet discReference

Steering typeArticulated powerReference

Dimensions & weight

Overall weight21,545.6 kgReference

Wheels & tyres

Rear Wheel Type710/70R42 agReference

Front Wheel Type710/70R42 agReference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
