Tractor · 2009Unverified

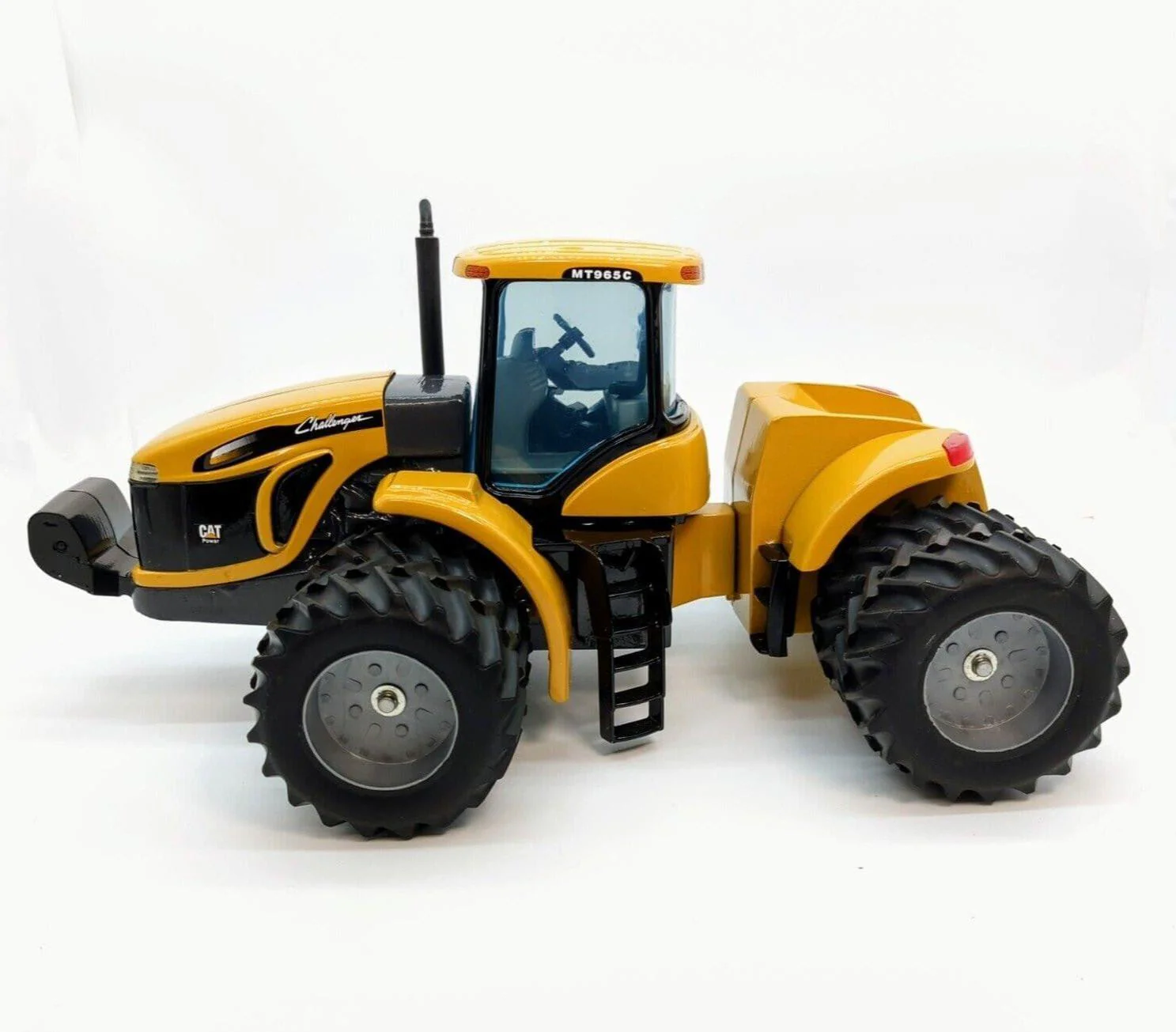

Challenger MT965C
Challenger MT965C — MT900C Series · 440 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
440 hp
Max power
374.1 kW
Weight
18038 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Four-wheel Drive (4WD) tractorReference
Built in Jackson, Minnesota, USAReference
Original price was $320,540 in 2009Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulic front and rear optionalReference
Articulated power steeringReference
Cab standard with air-conditioning.Reference
Engine
Caterpillar 18.1L 6-cyl dieselReference
Fuel tank1476.2 LReference
Engine391.5 kWReference
Drawbar (tested)331.7 kWReference
Caterpillar C18 ACERTReference
turbocharged aftercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement18.1 LReference
Bore/Stroke145 x 183 mmReference
EmissionsTier IIIReference
Power391.5 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Max power374.1 kWReference
Power at rated engine speed328.3 kWReference
Max power331.7 kWReference
Transmission
16-speed full power shiftReference
TransmissionCaterpillar PowershiftReference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)316.9 kWReference
PTO (tested)374.1 kWReference
Typeclosed center pressure-flow compensatedReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow136.3 lpmReference
Total flow164.6 lpmReference
Total flow223.3 lpmReference
Rear TypeIII/IVNReference
Rear TypeIVReference
Rear lift8845 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Power at rated PTO speed356.8 kWReference
Dimensions
Wheelbase394 cmReference
Weight18038 kgReference
Front tire710/70R42Reference
Rear tire710/70R42Reference
Ag front710/70R42Reference
Ag rear710/70R42Reference
Ag front800/70R38Reference
Ag front650/85R38Reference
Ag front620/70R46Reference
Ag front520/85R46Reference
Ag front520/85R42Reference
Ag front480/80R46Reference
Ag rear800/70R38Reference
Ag rear650/85R38Reference
Ag rear620/70R46Reference
Ag rear520/85R46Reference
Ag rear520/85R42Reference
Ag rear480/80R46Reference
Length756 cmReference
Width508 cmReference
Height (cab)383 cmReference
Shipping weight18038 kgReference
Max weight27216 kgReference
Front axle144 by 2997 mmReference
Bar rear axle144 by 2997 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps185Reference
Batteries4Reference
Battery CCA1000Reference
Battery volts12Reference
Test results
Diesel power shift 4WDJune 2 - 19, 2008Link: OCED Tractor Test 1930A fileReference
PTO performanceReference
Fuel use107.5 l/hourReference
Fuel use105.6 l/hourReference
Fuel use110.1 l/hourReference
Drawbar performanceReference
Fuel use108.6 l/hourReference
Gear 10 used for power test.Reference
Max pull23730 kgReference
Gear 3 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
