Tractor · 2014Unverified

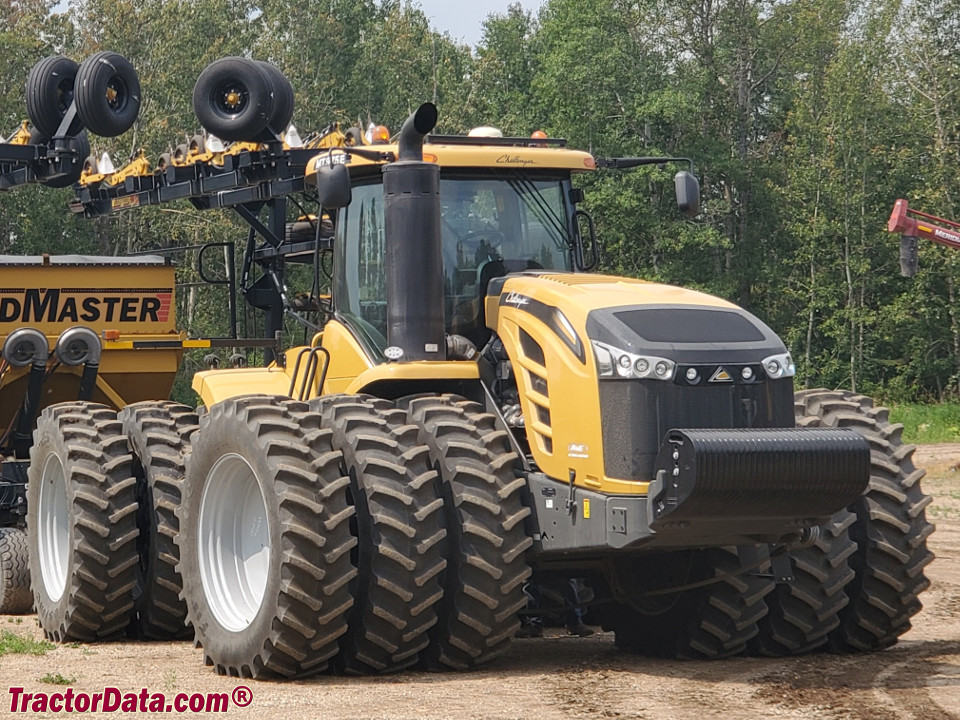

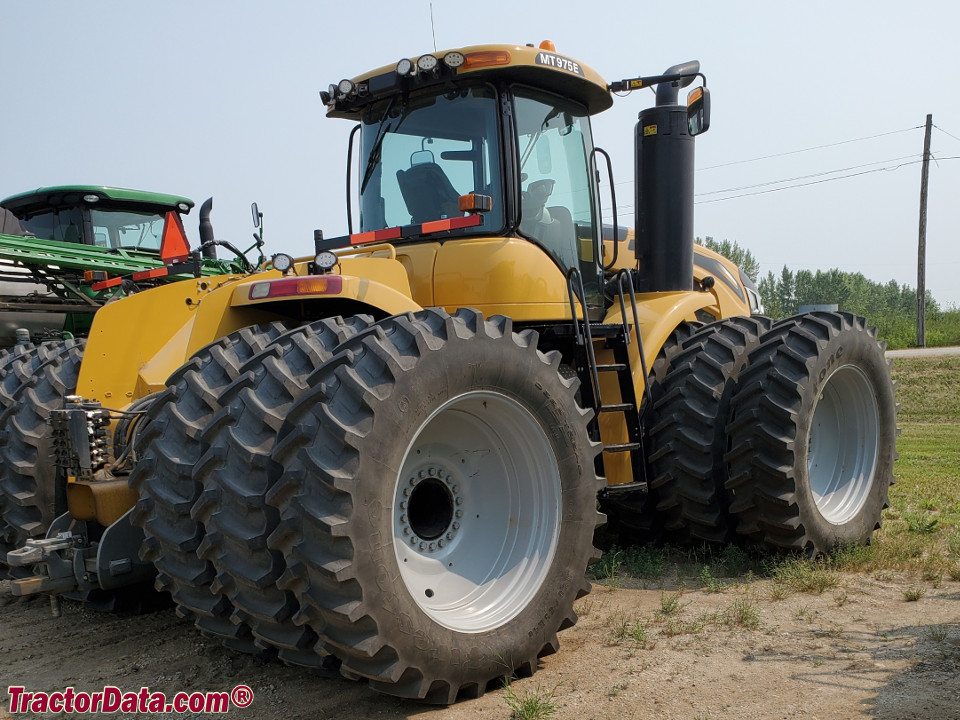

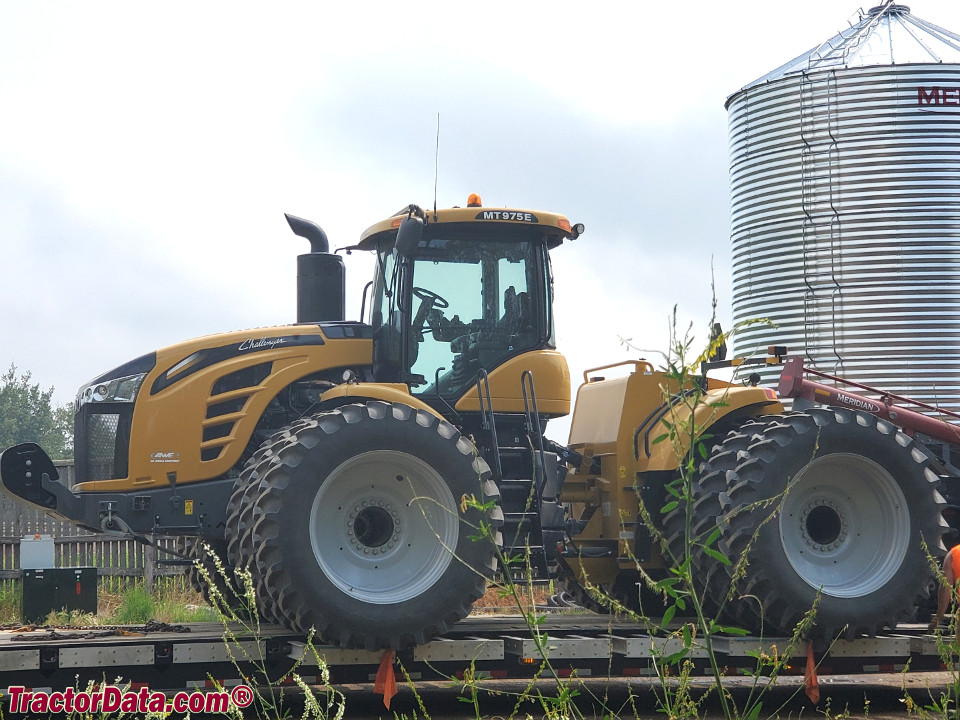

Challenger MT975E
Challenger MT975E — MT900E Series · 425 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
425 hp
Weight
21546 kg
Hover a source tag to verify
Overview
ManufacturerChallenger (a part of AGCO)Reference
Four-wheel Drive (4WD) tractorReference
Built in Jackson, Minnesota, USAReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockelectro-hydraulicReference
Articulated power steeringReference
Hydraulic wet disc brakesReference
Pinnacle View Cab standard with air-conditioning. Auto-Guide 3000; AgCommandReference
Engine
AGCO Power 16.8L 12-cyl dieselReference
Fuel tank1514.0 LReference
Exhaust fluid (DEF)196.8 LReference
Engine447.4 kWReference
AGCO PowerReference
turbocharged dieselReference
12-cylinder 48-valveReference
liquid-cooledReference
Displacement16.8 LReference
EmissionsTier IVReference
Emission controlselective catalytic reductionReference
Power447.4 kWReference
Maximum Power481.7 kWReference
Rated RPM1900Reference
Torque2840.8 NmReference
Torque RPM1500Reference
Starter typeelectricReference
Transmission
16-speed power shiftReference
TransmissionCaterpillarReference
Typepower shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)316.9 kWReference
Typeclosed center pressure-flow compensatedReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow219.5 lpmReference
Pump flow321.7 lpmReference
SCV flow140.0 lpmReference
Rear lift8845 kgReference
DrawbarCat. 5Reference
DrawbarCat. 4Reference
Dimensions
Weight21546 kgReference
Front tire710/70R42Reference
Rear tire710/70R42Reference
Standard tires (ag)Front: 710/70R42. Rear: 710/70R42Reference
Rear axle144 mmReference
Shipping21546 kgReference
Max Drawbar5670 kgReference
Max Drawbar4536 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps300Reference
Batteries4Reference
Battery volts12Reference
Capacities
Max capacity27216 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
