Tractor · 1975Unverified

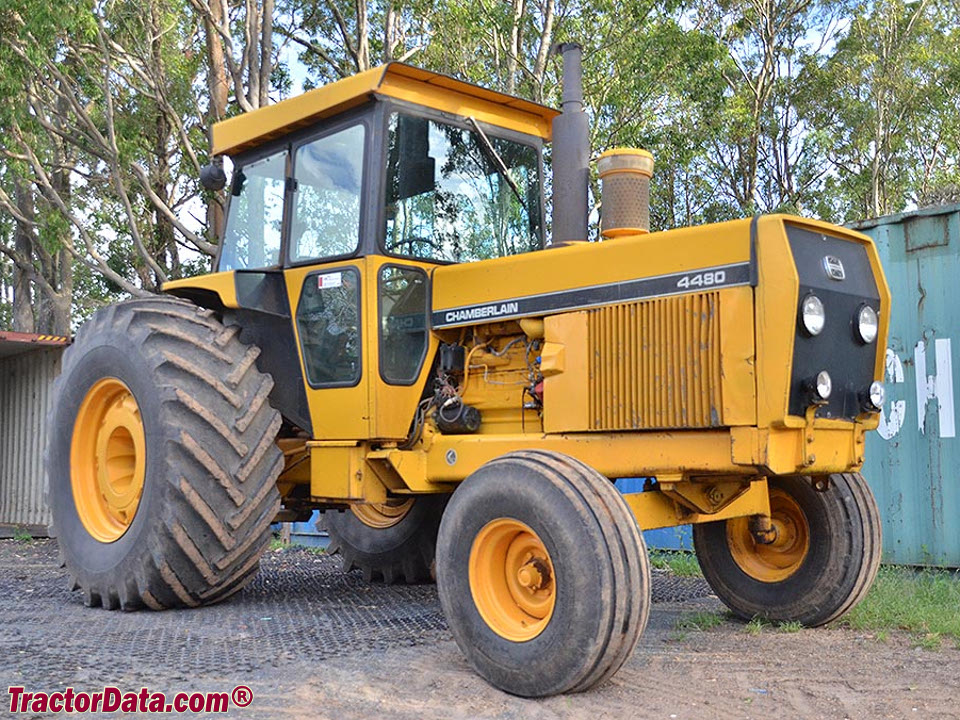

Chamberlain 4480
Chamberlain 4480 — 80 Series · 131 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
131 hp
Weight
6020 kg
Hover a source tag to verify
Overview
ManufacturerChamberlain (a part of John Deere)Reference
Built in Welshpool, AustraliaReference
Total built2,271Reference
Two-wheel driveReference
Power steeringReference
Sedan cab with heat and air-conditioning.Reference
Variants
4480Abuilt 1975-1983Reference
4480Bbuilt 1983-1985Reference
Engine
John Deere 5.9L 6-cyl dieselReference
Fuel tank272.9 LReference
Engine (gross)97.7 kWReference
Engine (net)92.5 kWReference
John Deere 6-359TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke106 x 110 mmReference
Power (net)92.5 kWReference
Power (gross)97.7 kWReference
Compression16.8:1Reference
Rated RPM2500Reference
Torque405.4 NmReference
Torque RPM1350Reference
Starter typeelectricReference
Transmission
12-speed two-speed power shiftReference
TransmissionHi-LoReference
Typetwo-speed power shiftReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)88.7 kWReference
Typeopen centerReference
Valves2Reference
Pump flow52.2 lpmReference
Rear TypeIIReference
Rear PTOliveReference
Dimensions
Weight6020 kgReference
Front tire11.00-16Reference
Rear tire24.5-32Reference
Ag front11.00-16Reference
Ag rear24.5-32Reference
Ag rear23.1-32Reference
Length450 cmReference
Width245 cmReference
Height (exhaust)284 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
