Tractor · 1954Unverified

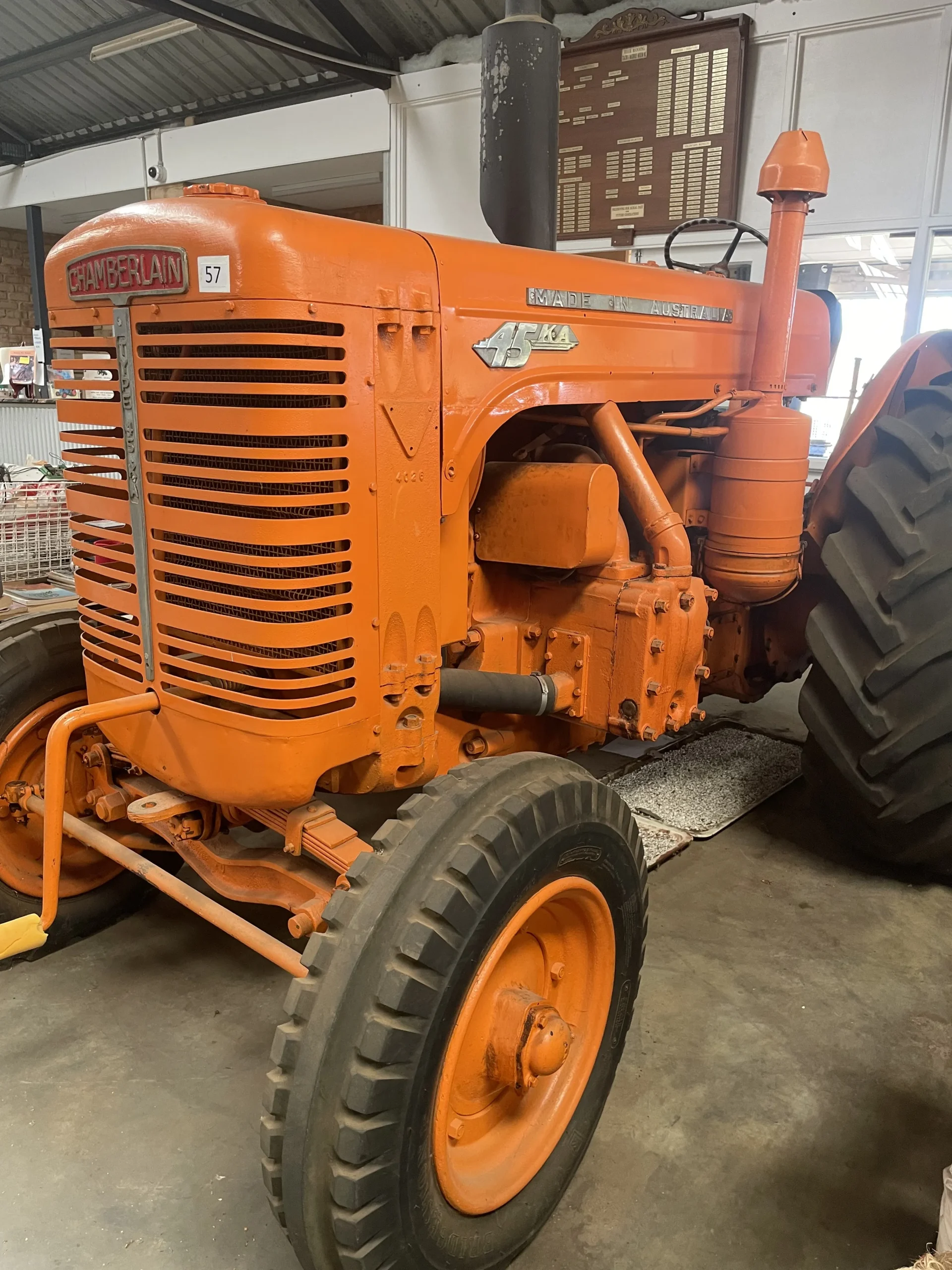

Chamberlain 45KA
Chamberlain 45KA. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
4082 kg
Hover a source tag to verify
Overview
ManufacturerChamberlainReference
Built in Welshpool, AustraliaReference
Total built108Reference
Two-wheel driveReference
Steeringmechanical - recirculating ballReference
Engine
Chamberlain 6.0L 2-cyl keroseneReference
Fuel tank81.8 LReference
Aux. fuel9.1 LReference
ChamberlainReference
keroseneReference
2-cylinderReference
liquid - thermosiphon-cooledReference
Displacement6.0 LReference
Bore/Stroke156 x 159 mmReference
Rated RPM1200Reference
Starter volts12Reference
Transmission
9-speedReference
Transmissionsliding gearReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase210 cmReference
Weight4082 kgReference
Front tire7.50x18Reference
Rear tire15.00x30Reference
Ag front7.50x18Reference
Ag rear15.00x30Reference
Length342 cmReference
Width172 cmReference
Height228 cmReference
45KA Serial Numbers
6/19541888Reference
12/19541977Reference
Final1995Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
