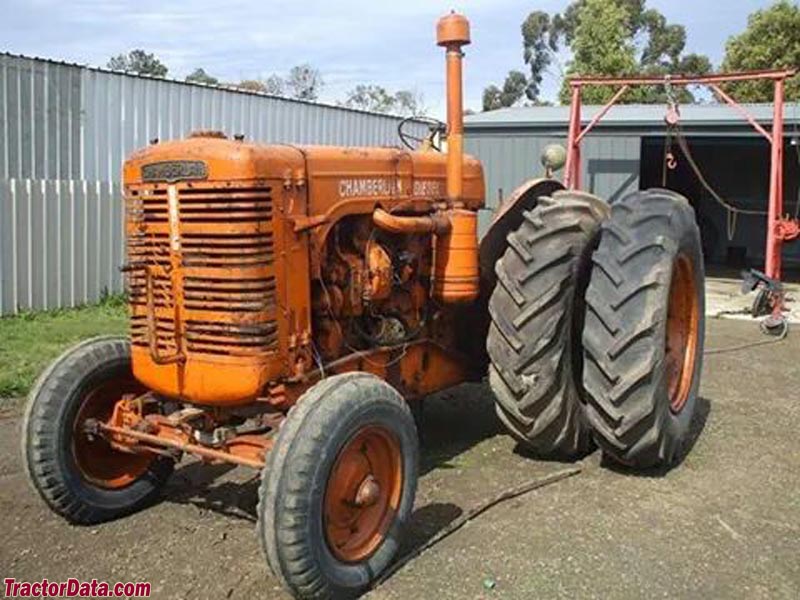

The Chamberlain 60DA is a tractor model rated at 45 hp, a relatively compact option within its class. It was produced from 1952 to 1954. This model features a 3-cylinder diesel liquid-cooled engine and two-wheel drive transmission via a 9-speed gearbox. The listed weight of the Chamberlain 60DA is 4309 kg, with an indicated capacity for tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
4309 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
45 hp
Recorded weight
4309 kg
Transmissions
9-speed sliding gear
Production years
1952-1954
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerChamberlainReference
Standard-tread tractorReference
Built in Welshpool, AustraliaReference
Total built190Reference
Two-wheel driveReference
Final drivesspur gearReference
Steeringmechanical - recirculating ballReference
Open operator station.Reference
Variants
60Dwide gear ratioReference
60DAclose gear ratioReference
Engine
Detroit Diesel 3.5L 3-cyl dieselReference
Fuel tank81.8 LReference
Drawbar (claimed)33.6 kWReference
Belt (claimed)41.8 kWReference
Detroit Diesel 3-71Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke108 x 127 mmReference
Compression17:1Reference
Rated RPM1500Reference
Starter volts12Reference
Transmission
9-speed sliding gearReference
Typesliding gearReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase210 cmReference
Weight4309 kgReference
Front tire7.50x18Reference
Rear tire15.00x30Reference
Ag front7.50x18Reference
Ag rear15.00x30Reference
Length342 cmReference
Width172 cmReference
Height228 cmReference
60DA Serial Numbers
Location:Serial number stamped into the front top-right of the tractor frame.Reference
19521Reference
Feb 195327Reference
Dec 1953176Reference
Final190Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter33 cmReference
Width17 cmReference
RPM810Reference
Speed835.15 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
