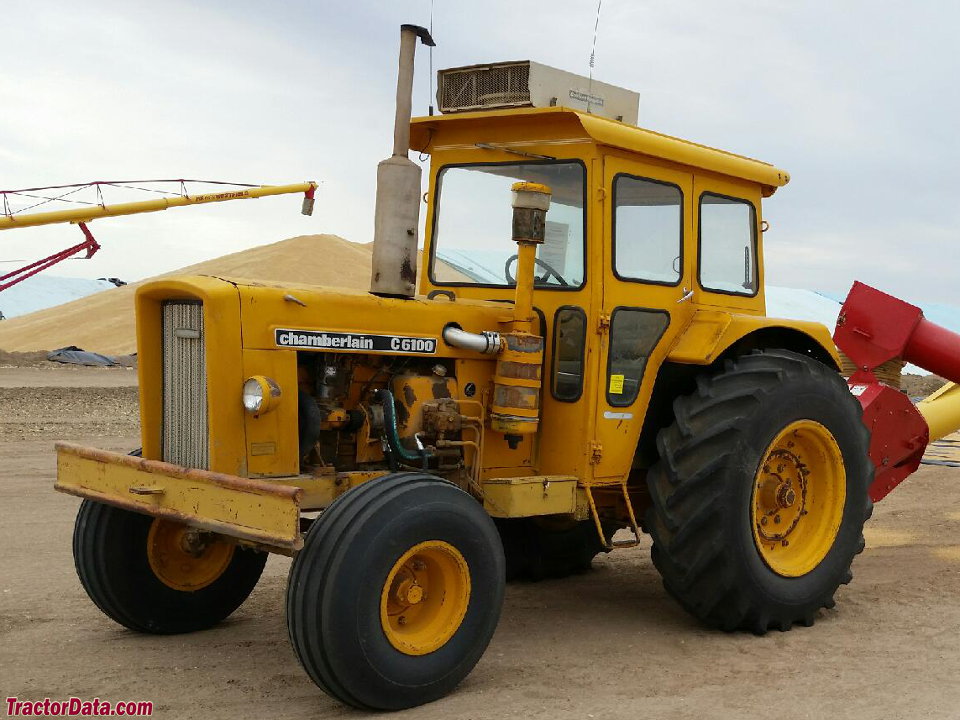

The Chamberlain C6100 is a tractor with a rated output of 91 hp, placing it in the middle of its class for power. It was manufactured from 1970 to 1976. This tractor features a 6-cylinder diesel liquid-cooled engine, coupled with a 9-speed gearbox and two-wheel drive. Its listed weight is 4495 kg, and it is suitable for tasks involving approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
91 hp
Weight
4495 kg
Catalogue coverage
Variants represented
2
Richest spec table
48 rows
Recorded power
91 hp
Recorded weight
4495 kg
Transmissions
9-speed gear
Production years
1970-1976
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerChamberlainReference
Standard-tread tractorReference
Built in Welshpool, AustraliaReference
Two-wheel driveReference
SteeringmanualReference
Steeringpower optionalReference
Open operator station.Reference
Engine
Perkins 5.8L 6-cyl dieselReference
Fuel tank106.7 LReference
Engine75.3 kWReference
Drawbar (claimed)60.4 kWReference
Perkins 6.354Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.8 LReference
Bore/Stroke98 x 127 mmReference
Power75.3 kWReference
Compression16:1Reference
Rated RPM2200Reference
Torque359.3 NmReference
Torque RPM1400Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)67.9 kWReference
Pressure131.0 barReference
Pump flow53.6 lpmReference
Rear PTOindepndentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase219 cmReference
Weight4495 kgReference
Front tire11.00-16Reference
Rear tire23.1-26Reference
Ag front11.00-16Reference
Ag rear23.1-26Reference
Length386 cmReference
Width243 cmReference
Height192 cmReference
C6100 Serial Numbers
19702853Reference
19712901Reference
19723073Reference
19733557Reference
19744152Reference
19754936Reference
19765561Reference
Final5599Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
