Tractor · 1970Unverified

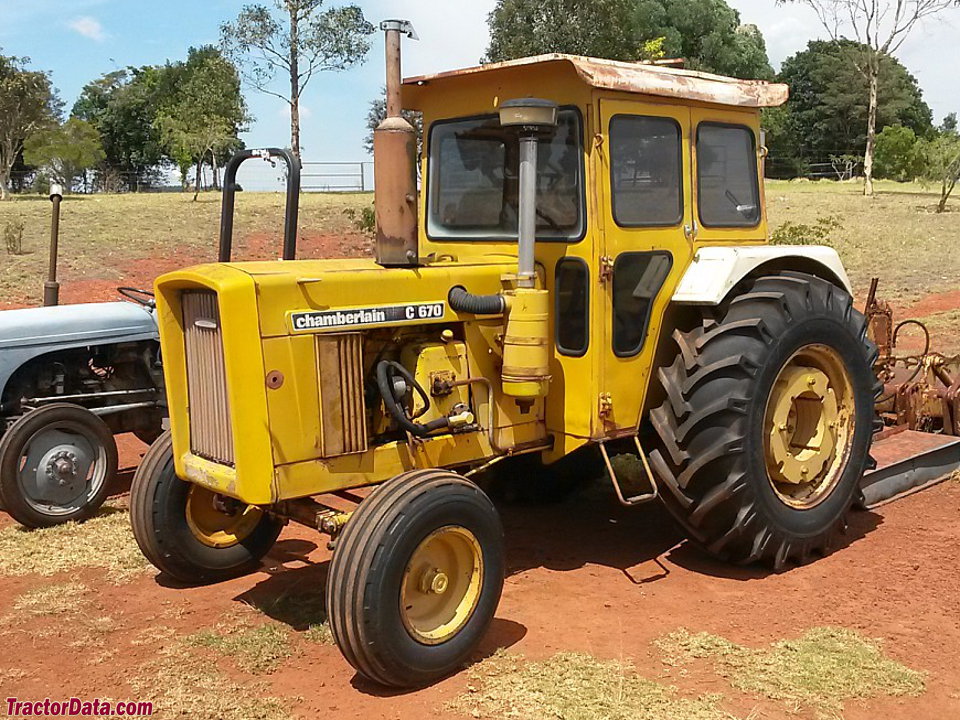

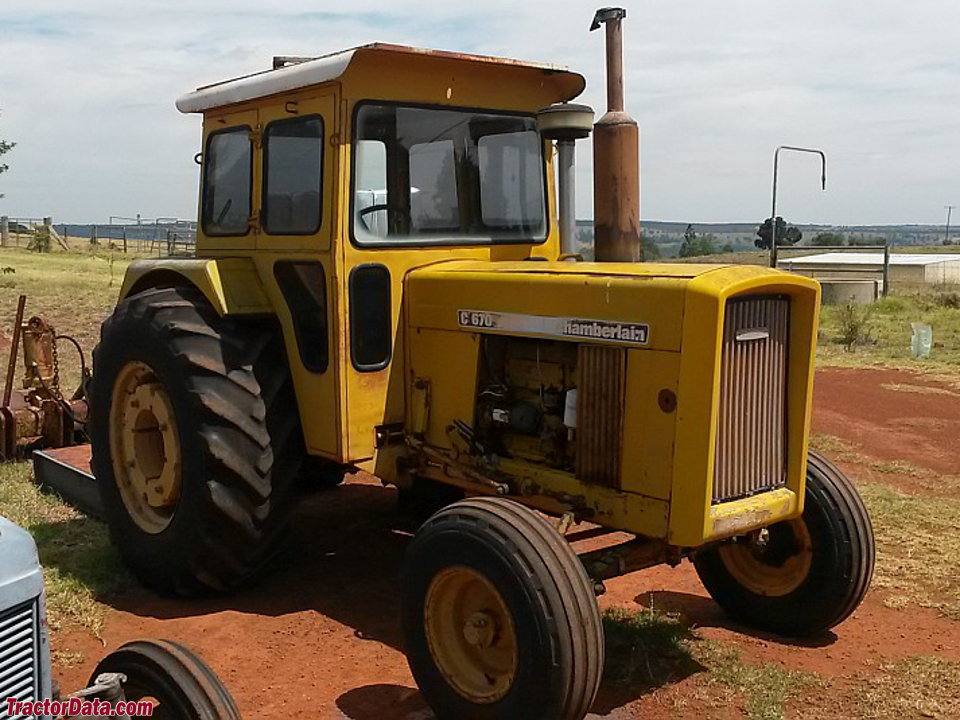

Chamberlain C670

Name: Chamberlain C670
Brand: Chamberlain

Chamberlain C670 — Champion Series · 68 hp. Reference specifications; pending source verification.

The Chamberlain C670 is a tractor model with an approximate engine rating of 68 hp, falling within the mid-range of its class. It was produced from 1970 to 1975. The model features a 6-cylinder diesel liquid-cooled engine coupled with two-wheel drive and a 9-speed gearbox. It has a listed operating weight of 7200 to 7425 pounds and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

68 hp

Weight

7200 to 7425 pounds

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

68 hp

Transmissions

9-speed gear

Production years

1970-1975

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerChamberlainReference

Standard-tread tractorReference

Built in Welshpool, AustraliaReference

Two-wheel driveReference

SteeringmanualReference

SteeringpowerReference

Disc brakesReference

Open operator station. Cab optional.Reference

Variants

C670Ddrawbar onlyReference

C670Lthree-point hitchReference

Engine

Perkins 5.0L 6-cyl dieselReference

Engine52.2 kWReference

Drawbar (claimed)42.5 kWReference

Perkins 6.306Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.0 LReference

Bore/Stroke91 x 127 mmReference

Power52.2 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Pre-heatingthermostartReference

Rated RPM2000Reference

Torque287.5 NmReference

Torque RPM1000Reference

StarterelectricReference

Starter volts12Reference

Transmission

9-speed gearReference

TypegearReference

Gears9 forward and 3 reverseReference

Three gears (1-3), plus reverse (R) in three ranges (low, intermediate, high).Reference

PTO & Hydraulics

PTO (claimed)50.7 kWReference

Hydraulic system11.4 LReference

Typeopen centerReference

Capacity11.4 LReference

Pressure131.0 barReference

Pump flow53.0 lpmReference

Rear TypeIIReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1600Reference

Capacities

Fuel136.3 LReference

Dimensions

Wheelbase226 cmReference

Weight7200 to 7425 poundsReference

Front tire9.00-16Reference

Rear tire18.4-30Reference

Ag front9.00-16Reference

Ag rear18.4-30Reference

Length383 cmReference

Width214 cmReference

Height (steering wheel)183 cmReference

Front tread153 cmReference

Rear tread167 cmReference

Shipping3265 kgReference

Operating3367 kgReference

Ballasted4438 kgReference

C670 Serial Numbers

19703480 (C670D)Reference

19713558 (C670D)Reference

19723810 (C670D)Reference

19734124 (C670D)Reference

19744552 (C670D)Reference

19754841 (C670D)Reference

19707466 (C670L)Reference

19717660 (C670L)Reference

19727965 (C670L)Reference

19738438 (C670L)Reference

19749120 (C670L)Reference

19759465 (C670L)Reference

FAQ: How to read a serial number table.Reference

Speeds

With 18.4x30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
