Tractor · 1959Unverified

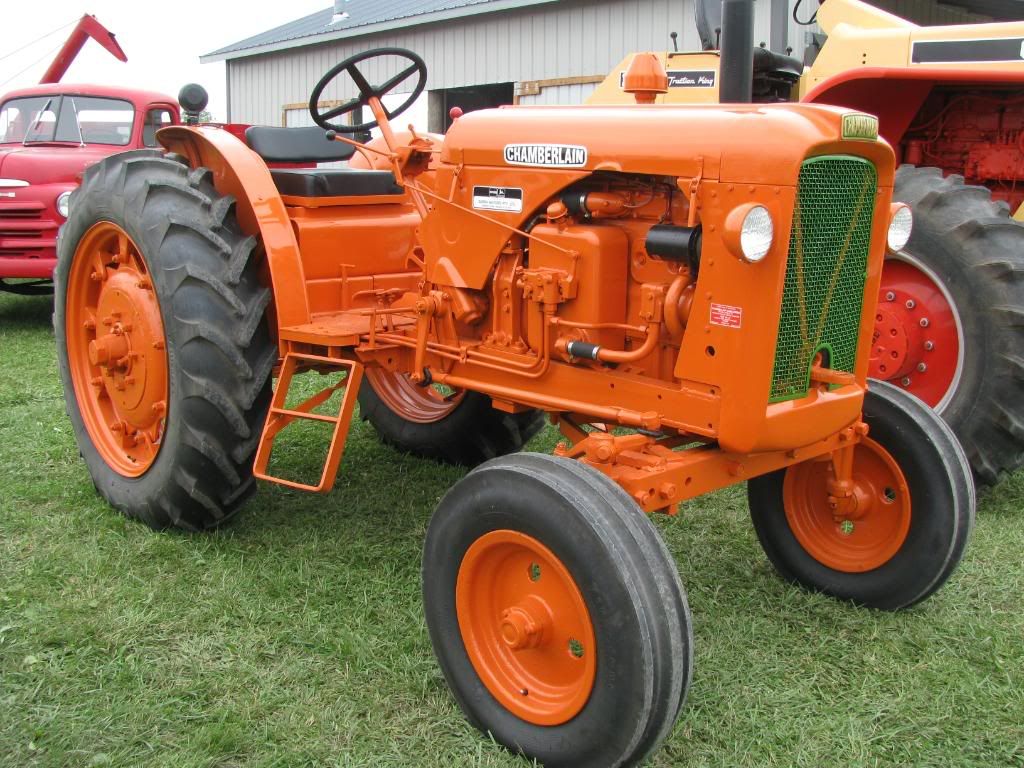

Chamberlain Canelander
Chamberlain Canelander — High-Clearance tractor · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
3333 kg
Hover a source tag to verify
Overview
ManufacturerChamberlainReference
High-Clearance tractorReference
Built in Welshpool, AustraliaReference
Two-wheel driveReference
Manual steeringReference
Mechanical expanding brakesReference
Open operator station.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Engine46.2 kWReference
Drawbar (claimed)35.8 kWReference
Perkins 4-270DReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 121 mmReference
Power46.2 kWReference
Pre-heatingthermostartReference
Compression16:1Reference
Rated RPM2000Reference
Starter volts12Reference
Transmission
9-speed gearReference
9-speedReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutch355.6mm dry discReference
Gears9 forward and 6 reverseReference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Hydraulic system9.1 LReference
Typeopen centerReference
Capacity9.1 LReference
Pressure120.7 barReference
Pump flow37.1 lpmReference
Rear TypeIIReference
Rear lift (at ends)1587 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1600Reference
Capacities
Fuel73.8 LReference
Dimensions
Wheelbase233 cmReference
Weight3333 kgReference
Front tire7.50x18Reference
Rear tire14.9x38Reference
Ag front7.50x18Reference
Ag rear14.9x38Reference
Length378 cmReference
Width200 cmReference
Height (steering wheel)191 cmReference
Operating weight3333 kgReference
Ballasted weight4223 kgReference
Ground clearance66 cmReference
Front tread142 to 203 cmReference
Rear tread137 to 199 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
