Tractor · 1954Unverified

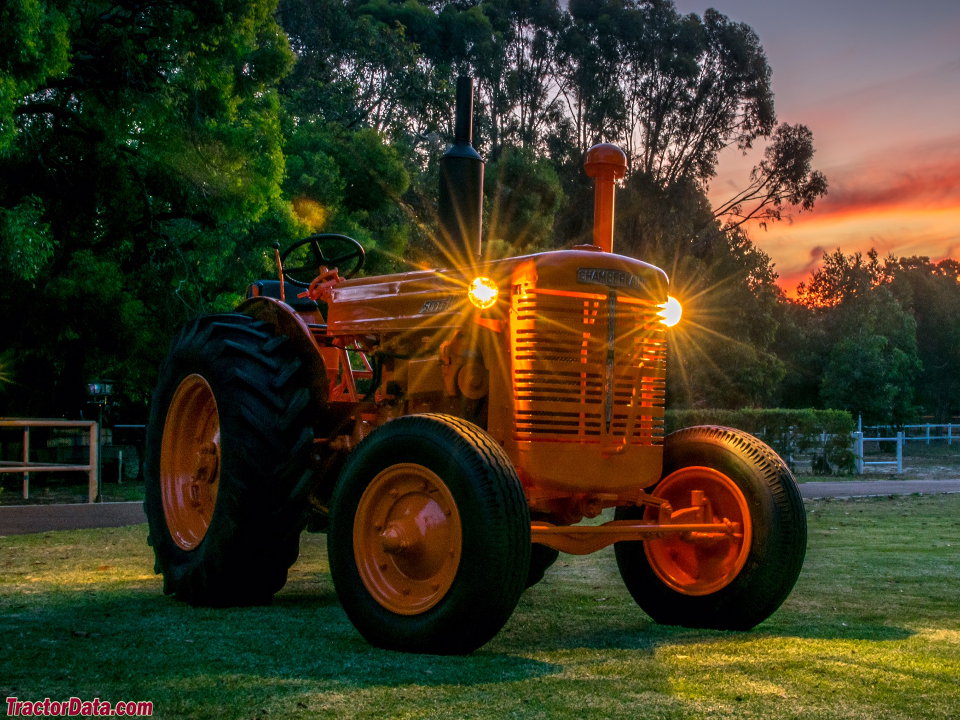

Chamberlain Super 70
Chamberlain Super 70 — Standard-tread tractor · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
4399 kg
Hover a source tag to verify
Overview
ManufacturerChamberlainReference
Standard-tread tractorReference
Built in Welshpool, AustraliaReference
Total built1,010Reference
Two-wheel driveReference
Final drivesbull gearReference
Open operator station.Reference
Engine
Detroit Diesel 3.5L 3-cyl dieselReference
Fuel tank81.8 LReference
Drawbar (claimed)39.1 kWReference
Belt (claimed)48.5 kWReference
Detroit Diesel 3-71Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke108 x 127 mmReference
Compression16:1Reference
Rated RPM1500Reference
Starter volts12Reference
Transmission
9-speed sliding gearReference
Typesliding gearReference
Gears9 forward and 3 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase210 cmReference
Weight4399 kgReference
Front tire7.50x18Reference
Rear tire23.1x26Reference
Ag front7.50x18Reference
Ag rear23.1x26Reference
Length373 cmReference
Ground clearance36 cmReference
Super 70 Serial Numbers
4/1954191Reference
12/54289Reference
12/1955414Reference
12/1956417Reference
12/1957536Reference
12/1958676Reference
12/1959684Reference
12/1960977Reference
12/19611079Reference
12/19621138Reference
Final1200Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter33 cmReference
Width17 cmReference
RPM810Reference
Speed835.15 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
