Tractor · 2012Unverified

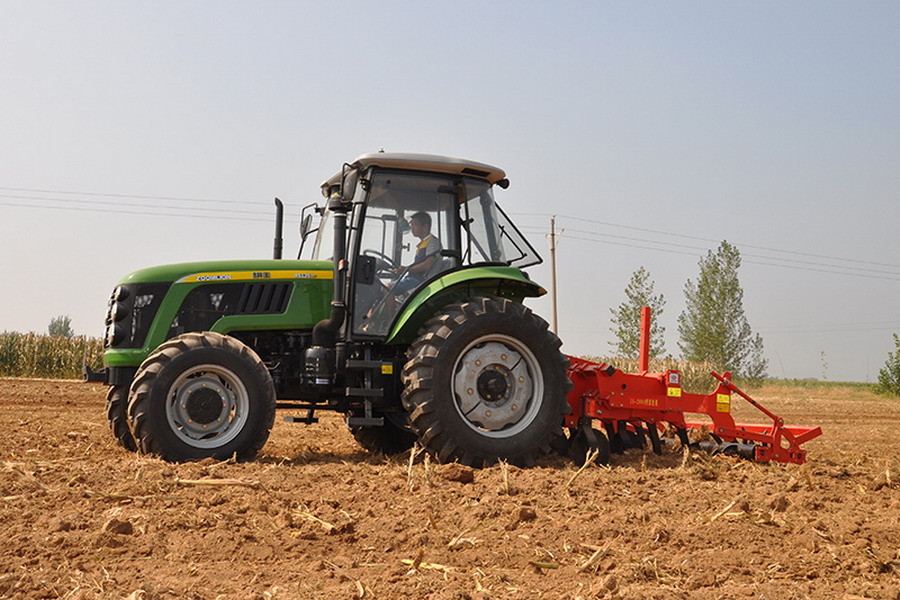

Chery RA1604

Name: Chery RA1604
Brand: Chery

Chery RA1604 — RA Series · 160 hp. Reference specifications; pending source verification.

The Chery RA1604 tractor model boasts a rated power of 160 hp, positioning it at the more powerful end of its class. Manufactured in 2012, this tractor utilises a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. It features an operating weight of 6300 kg, making it suitable for operations covering 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

160 hp

Weight

6300 kg

Catalogue coverage

Variants represented

Richest spec table

48 rows

Recorded power

160 hp

Recorded weight

6300 kg

Transmissions

40-speed partial power shift

Production years

2012-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCheryReference

Row-Crop tractorReference

Built in ChinaReference

Four-wheel driveReference

Differential lockrear standardReference

Steeringhydraulic powerReference

Pneumatic brakes optional brakesReference

Cab standard with air-conditioning.Reference

Engine

Weichai-Deutz 6.9L 6-cyl dieselReference

Engine (gross)119.3 kWReference

Weichai-Deutz WP6T160E200Reference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.9 LReference

Bore/Stroke105 x 132 mmReference

Power (gross)119.3 kWReference

Fuel systemdirect injectionReference

Air cleaneroil bathReference

Rated RPM2200Reference

Torque800.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

40-speed partial power shiftReference

Typepartial power shiftReference

Gears40 forward and reverseReference

Clutchelectro-hydraulic wet discReference

PTO & Hydraulics

PTO (claimed)100.0 kWReference

Controlposition, float, and electronic draft controlReference

Rear lift (at 24"/610mm)2875 kgReference

Drawbarswinging drawbarReference

Rear PTOliveReference

Rear PTO Type540/540E/1000/1000EReference

Rear PTO Type760-1000 (optional)Reference

Dimensions

Wheelbase288 cmReference

Weight6300 kgReference

Front tire16.9-30Reference

Rear tire20.8-38 (duals)Reference

Standard tires (ag)Front: 16.9-30. Rear: 20.8-38 (duals)Reference

Length575 cmReference

Width325 cmReference

Height (cab)321 cmReference

Ground clearance36 cmReference

Front tread190 to 203 cmReference

Rear tread283 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
