Tractor · 2012Unverified

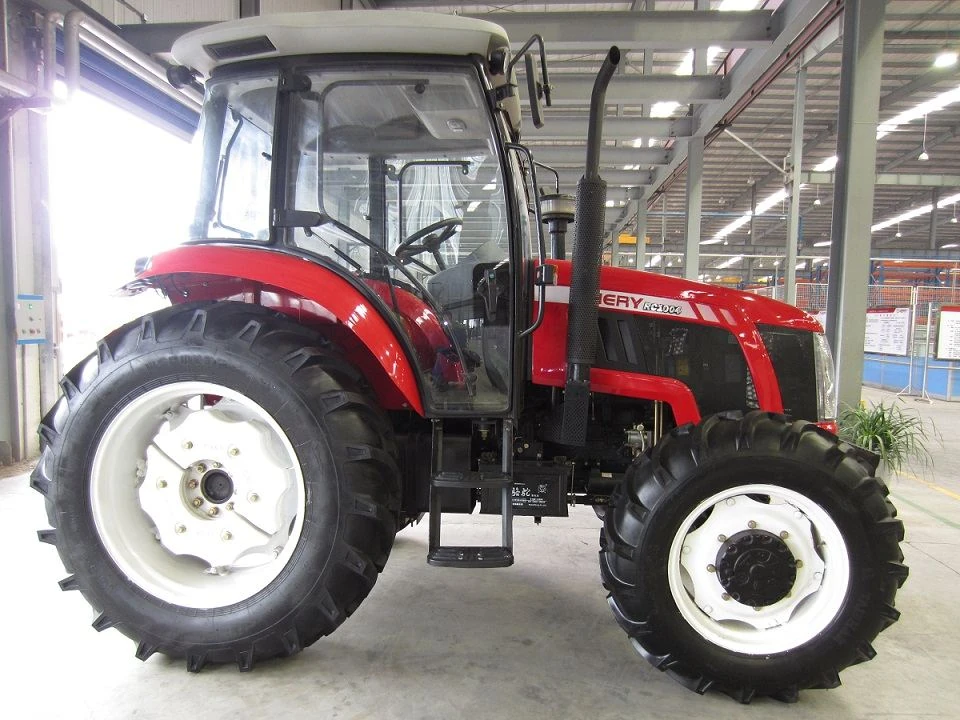

Chery RC1004
Chery RC1004 — RC Series · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
7826 to 8378 pounds
Hover a source tag to verify
Overview
ManufacturerCheryReference
Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Pneumatic brakes optional brakesReference
Cab standard. Optional heater or air-conditioning. Available ROPS and canopy.Reference
Variants
RC10002WDReference
RC10044WDReference
Engine
YTO 4.8L 4-cyl dieselReference
Yuchai dieselReference
Quanchai dieselReference
Engine (gross)74.6 kWReference
YTO LR4M3Z-23Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.8 LReference
Bore/Stroke110 x 125 mmReference
Power (gross)74.6 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2300Reference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Yuchai YC4A110Z-T20Reference
dieselReference
Starter typeelectricReference
Quanchai QC4115TReference
Transmission
16-speed shuttleReference
8-speed gearReference
TypeshuttleReference
Gears16 forward and 8 reverseReference
Clutch304.8mm dry discReference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)62.5 kWReference
Controlposition and float controlReference
Controldraft control optionalReference
Rear lift (at 24"/610mm)1804 kgReference
Drawbarfixed drawbarReference
Drawbarswinging drawbar optionalReference
Rear PTOliveReference
Rear PTO Type760/850Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase219 cmReference
Weight7826 to 8378 poundsReference
Front tire12.4-24Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
Optional tires (ag)Front: 11.2-24. Rear: 16.9-34Reference
Optional tires (ag)Front: 11.2-24. Rear: 18.4-30Reference
Optional tires (ag)Front: 12.4-24. Rear: 18.4-30Reference
Optional tires (ag)Front: 12.4-24. Rear: 18.4-34Reference
Length438 cmReference
Width204 cmReference
Height (exhaust)276 cmReference
Weight3549 kgReference
Weight3800 kgReference
Ground clearance41 cmReference
Front tread168/170/179/182/184/193 cmReference
Rear tread170/181/189/201 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
