Tractor · 2012Unverified

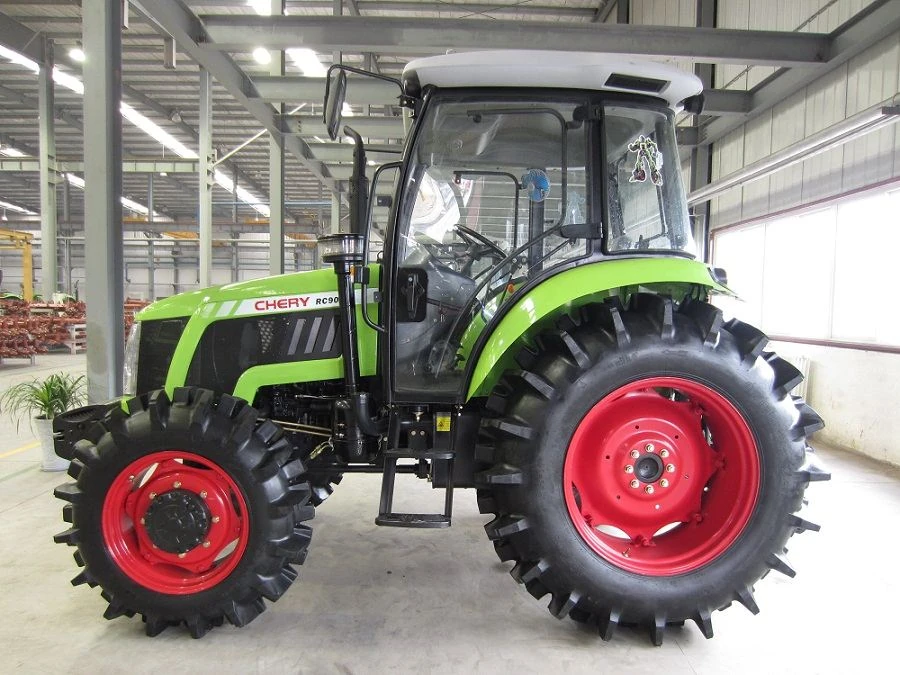

Chery RC904

Name: Chery RC904
Brand: Chery

Chery RC904 — RC Series · 90 hp. Reference specifications; pending source verification.

The Chery RC904 is a tractor with an engine rating of approximately 90 hp, a mid-range figure for its class. The RC904 was produced in 2012. It features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 16-speed gearbox. The operating weight of the RC904 is specified as between 7826 and 8378 pounds, and it is suitable for operations covering areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Weight

7826 to 8378 pounds

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

90 hp

Recorded weight

3549 kg

Transmissions

16-speed shuttle

Production years

2012-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCheryReference

Utility tractorReference

Built in ChinaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydraulic powerReference

Pneumatic brakes optional brakesReference

Cab standard. Optional heater or air-conditioning. Available ROPS and canopy.Reference

Variants

RC9002WDReference

RC9044WDReference

Engine

YTO 5.1L 4-cyl dieselReference

Yuchai dieselReference

Quanchai dieselReference

Engine (gross)67.1 kWReference

YTO LR4M5-23Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement5.1 LReference

Bore/Stroke110 x 135 mmReference

Power (gross)67.1 kWReference

Fuel systemdirect injectionReference

Air cleaneroil bathReference

Rated RPM2300Reference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Yuchai YC4BA105-T20Reference

Starter typeelectricReference

Quanchai QC4112TReference

Transmission

16-speed shuttleReference

8-speed gearReference

TypeshuttleReference

Gears16 forward and 8 reverseReference

Clutch304.8mm dry discReference

TypegearReference

Gears8 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)56.3 kWReference

Controlposition and float controlReference

Controldraft control optionalReference

Rear lift (at 24"/610mm)1631 kgReference

Drawbarfixed drawbarReference

Drawbarswinging drawbar optionalReference

Rear PTOliveReference

Rear PTO Type760/850Reference

Rear PTO Type540/1000 (optional)Reference

Dimensions

Wheelbase219 cmReference

Weight7826 to 8378 poundsReference

Front tire12.4-24Reference

Rear tire16.9-34Reference

Standard tires (ag)Front: 12.4-24. Rear: 16.9-34Reference

Optional tires (ag)Front: 11.2-24. Rear: 16.9-34Reference

Optional tires (ag)Front: 11.2-24. Rear: 18.4-30Reference

Optional tires (ag)Front: 12.4-24. Rear: 18.4-30Reference

Optional tires (ag)Front: 12.4-24. Rear: 18.4-34Reference

Length438 cmReference

Width204 cmReference

Height (exhaust)276 cmReference

Weight3549 kgReference

Weight3800 kgReference

Ground clearance41 cmReference

Front tread168/170/179/182/184/193 cmReference

Rear tread170/181/189/201 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
