Tractor · 2012Unverified

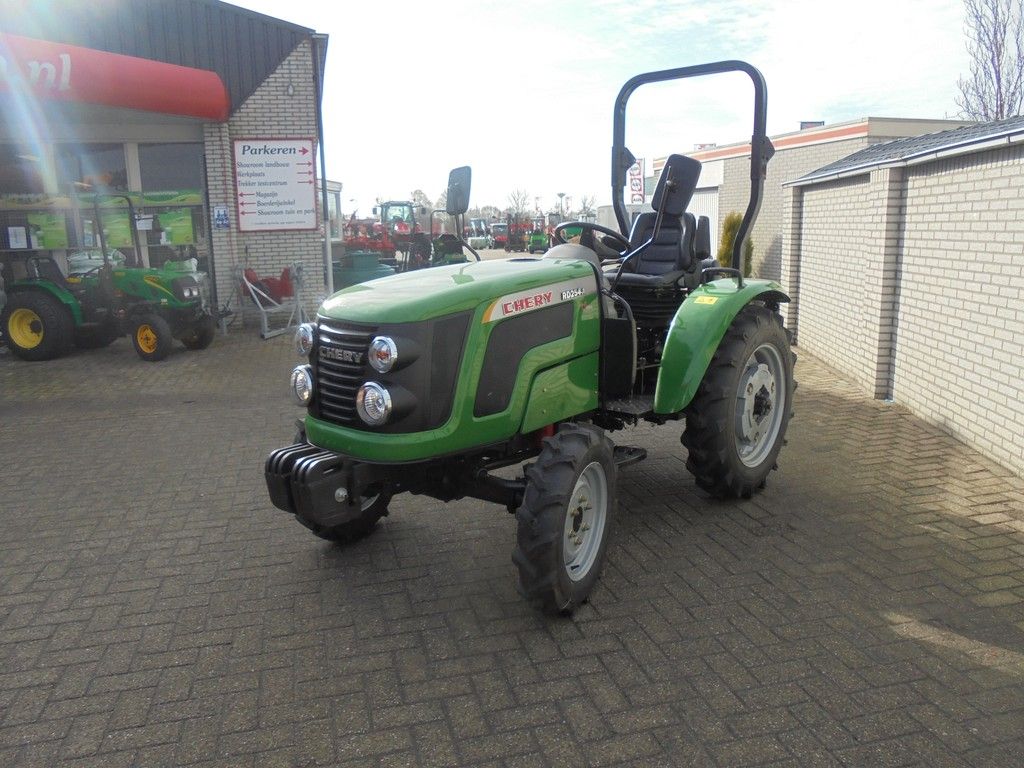

Chery RD250
Chery RD250 — RD Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1070 kg
Hover a source tag to verify
Overview
ManufacturerCheryReference
Compact Utility tractorReference
Built in ChinaReference
Two-wheel driveReference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Pneumatic brake optional brakesReference
Open operator station. Optional two-post ROPS and canopy.Reference
Variants
RD2502WDReference
RD2544WDReference
Engine
Lai Dong 1.5L 3-cyl dieselReference
Jiang Dong 1.7L 2-cyl dieselReference
Engine (gross)18.6 kWReference
Lai Dong KM385Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke85 x 90 mmReference
Power (gross)18.6 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2350Reference
Torque88.0 NmReference
Torque RPM1650Reference
StarterelectricReference
Starter volts12Reference
Jiang Dong TY2100ITReference
2-cylinderReference
Displacement1.7 LReference
Bore/Stroke100 x 105 mmReference
Starter typeelectricReference
Transmission
8-speed gearReference
8-speed shuttleReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch203.2mm dry discReference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)16.9 kWReference
Controlposition and float controlReference
Rear lift (at 24"/610mm)428 kgReference
Drawbarfixed drawbarReference
Drawbarswinging drawbar optionalReference
Rear PTOliveReference
Rear PTO Type540/720Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase177 cmReference
Weight1070 kgReference
Front tire5.0-15Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 5.0-15. Rear: 9.5-24Reference
Length335 cmReference
Width152 cmReference
Height204 cmReference
Ground clearance33 cmReference
Front tread109/119/130 cmReference
Rear tread96 to 146 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
