Tractor · 2012Unverified

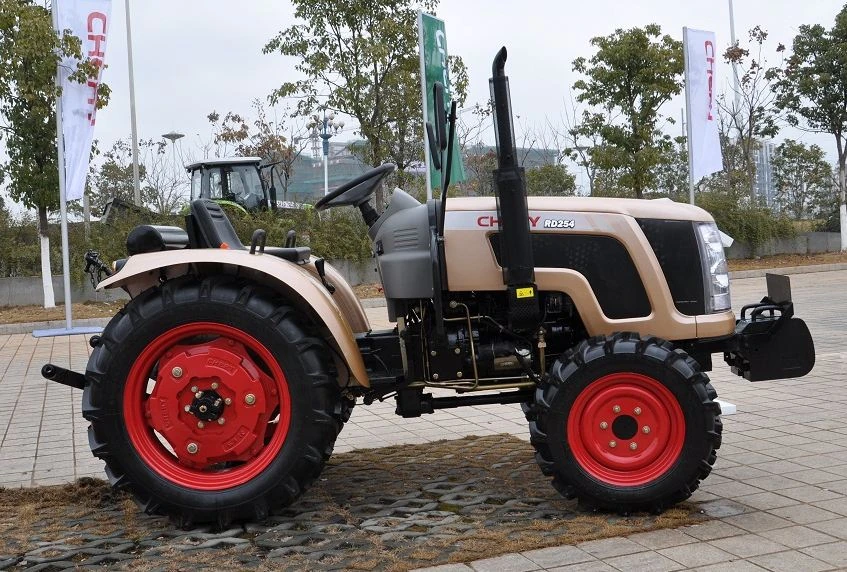

Chery RD254
Chery RD254 — RD Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1190 kg
Hover a source tag to verify
Overview
ManufacturerCheryReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Pneumatic brake optional brakesReference
Open operator station. Optional two-post ROPS and canopy.Reference
Variants
RD2502WDReference
RD2544WDReference
Engine
Lai Dong 1.5L 3-cyl dieselReference
Jiang Dong 1.7L 2-cyl dieselReference
Engine (gross)18.6 kWReference
Lai Dong KM385Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke85 x 90 mmReference
Power (gross)18.6 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2350Reference
Torque88.0 NmReference
Torque RPM1650Reference
StarterelectricReference
Starter volts12Reference
Jiang Dong TY2100ITReference
2-cylinderReference
Displacement1.7 LReference
Bore/Stroke100 x 105 mmReference
Starter typeelectricReference
Transmission
8-speed gearReference
8-speed shuttleReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch203.2mm dry discReference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)16.9 kWReference
Controlposition and float controlReference
Rear lift (at 24"/610mm)428 kgReference
Drawbarfixed drawbarReference
Drawbarswinging drawbar optionalReference
Rear PTOliveReference
Rear PTO Type540/720Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase178 cmReference
Weight1190 kgReference
Front tire6.00-16Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 6.00-16. Rear: 9.5-24Reference
Optional tires (ag)Front: 6.5-16. Rear: 9.5-24Reference
Length331 cmReference
Width152 cmReference
Height255 cmReference
Ground clearance26 cmReference
Front tread121 cmReference
Rear tread96 to 146 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
