Tractor · 2012Unverified

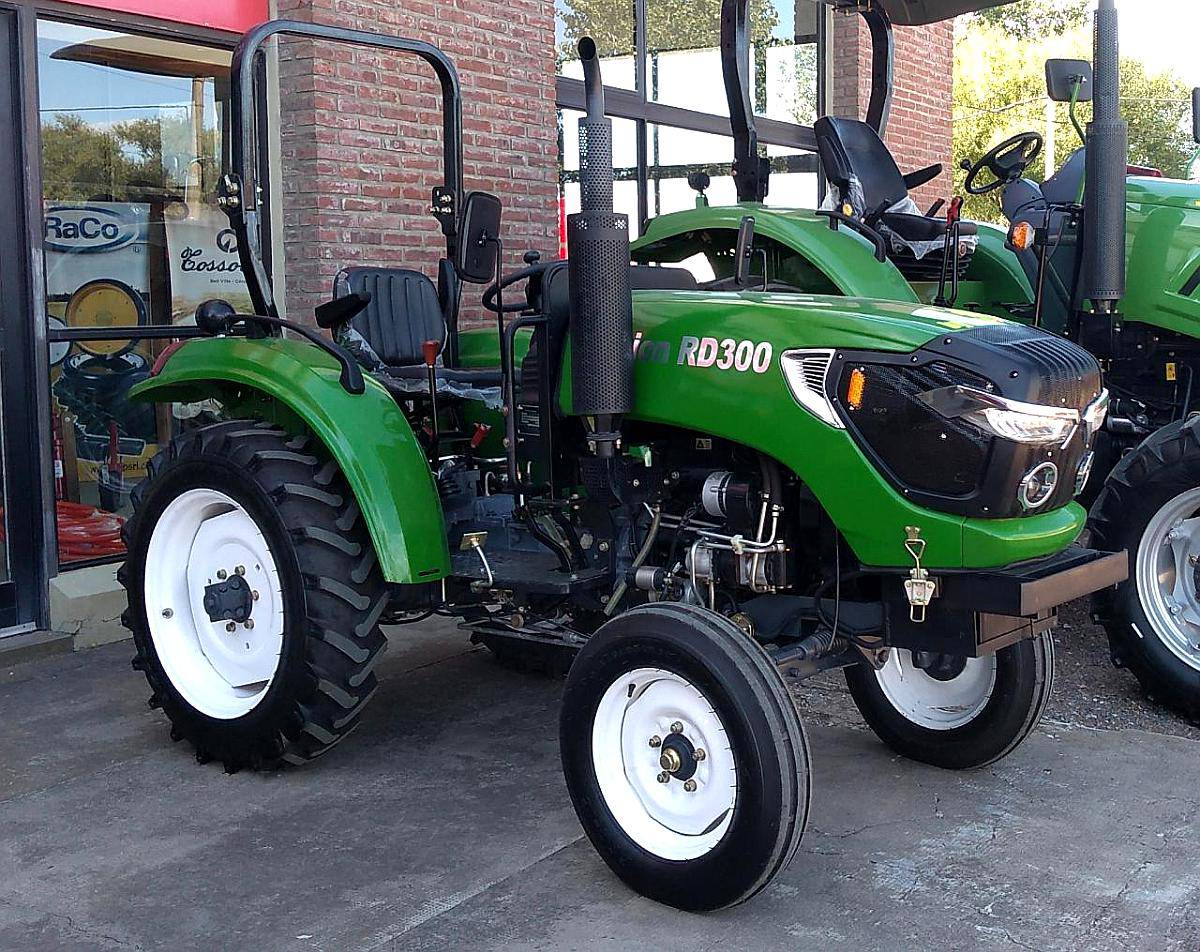

Chery RD300

Name: Chery RD300
Brand: Chery

Chery RD300 — RD Series · 30 hp. Reference specifications; pending source verification.

The Chery RD300 is a tractor with a rated output of 30 hp — making it one of the more compact options in its class. It was produced in 2012. It is powered by a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 8-speed gearbox. Listed weight is 1435 kg, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

30 hp

Weight

1435 kg

Catalogue coverage

Variants represented

Richest spec table

59 rows

Recorded power

30 hp

Recorded weight

1435 kg

Transmissions

8-speed gear

Production years

2012-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCheryReference

Compact Utility tractorReference

Built in ChinaReference

Two-wheel driveReference

Differential lockmechanical rearReference

Steeringhydraulic powerReference

Pneumatic brake optional brakesReference

Open operator station. Optional two-post ROPS and canopy.Reference

Variants

RD3002WDReference

RD3044WDReference

Engine

Jiang Dong 2.8L 3-cyl dieselReference

Lai Dong 1.5L 3-cyl dieselReference

Engine (gross)22.4 kWReference

Jiang Dong TY3100ITReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.8 LReference

Bore/Stroke100 x 117 mmReference

Power (gross)22.4 kWReference

Fuel systemdirect injectionReference

Air cleaneroil bathReference

Rated RPM2350Reference

Torque110.0 NmReference

Torque RPM1650Reference

StarterelectricReference

Starter volts12Reference

Lai Dong KM385Reference

Displacement1.5 LReference

Bore/Stroke85 x 85 mmReference

Starter typeelectricReference

Transmission

8-speed gearReference

8-speed shuttleReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutch203.2mm dry discReference

TypeshuttleReference

Gears8 forward and reverseReference

PTO & Hydraulics

PTO (claimed)19.9 kWReference

Controlposition and float controlReference

Rear lift (at 24"/610mm)505 kgReference

Drawbarfixed drawbarReference

Drawbarswinging drawbar optionalReference

Rear PTOliveReference

Rear PTO Type540/720Reference

Rear PTO Type540/1000 (optional)Reference

Dimensions

Wheelbase177 cmReference

Weight1435 kgReference

Front tire6.0-16Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 6.0-16. Rear: 11.2-24Reference

Length335 cmReference

Width152 cmReference

Height204 cmReference

Ground clearance31 cmReference

Front tread109/119/130 cmReference

Rear tread96 to 146 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
