Tractor · 2012Unverified

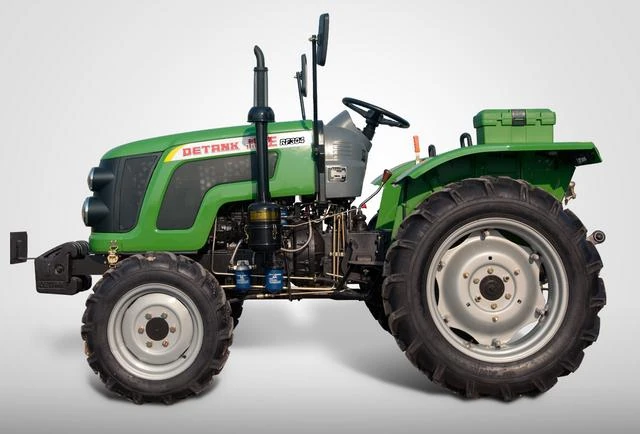

Chery RF304
Chery RF304 — RF Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1300 kg
Hover a source tag to verify
Overview
ManufacturerCheryReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Pneumatic brakes optional brakesReference
Open operator station. Optional ROPS and canopy.Reference
Variants
RF3002WDReference
RF3044WDReference
Engine
Changchai 1.8L 3-cyl dieselReference
Engine (gross)22.4 kWReference
Changchai ZN390TReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke90 x 95 mmReference
Power (gross)22.4 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2500Reference
Torque96.0 NmReference
Torque RPM1875Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed sliding gearReference
Typesliding gearReference
Gears8 forward and 2 reverseReference
Clutch203mm dry discReference
PTO & Hydraulics
PTO (claimed)19.9 kWReference
Controlposition and float controlReference
Rear lift (at 24"/610mm)505 kgReference
Drawbarfixed drawbarReference
Drawbarswinging drawbar optionalReference
Rear PTOtransmissionReference
Rear PTO Type540/730Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase170 cmReference
Weight1300 kgReference
Front tire6.0-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 6.0-16. Rear: 12.4-24Reference
Length328 cmReference
Width152 cmReference
Height189 cmReference
Ground clearance33 cmReference
Front tread96/109/119/130 cmReference
Rear tread96/109/119/130 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
