Tractor · 2012Unverified

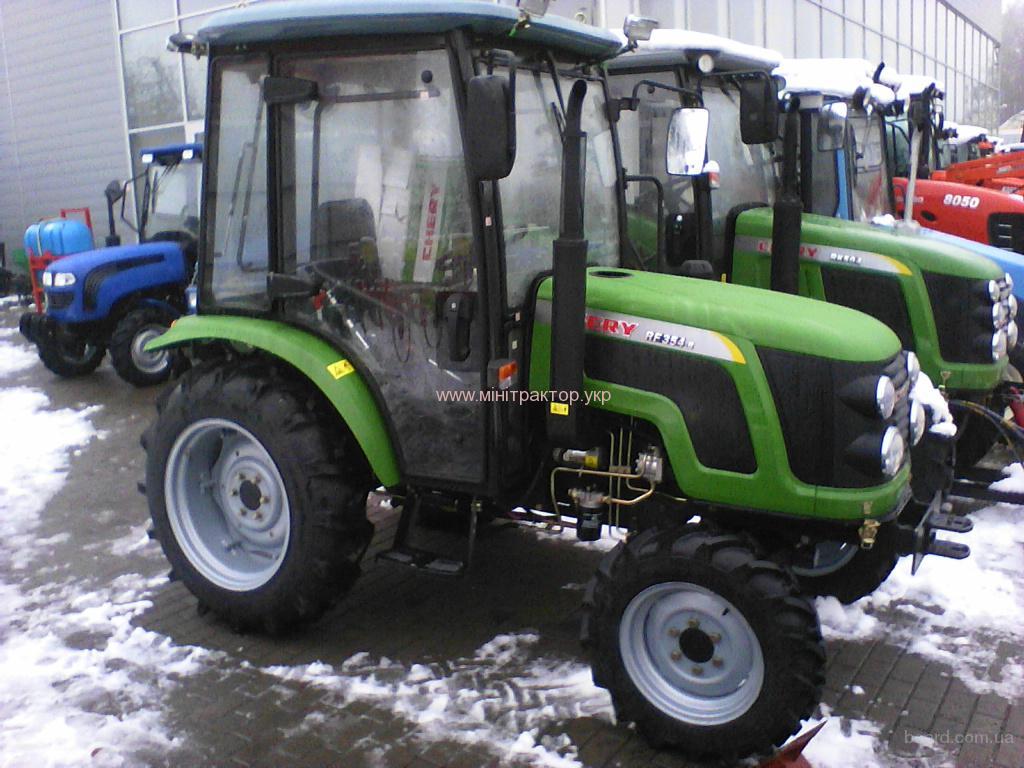

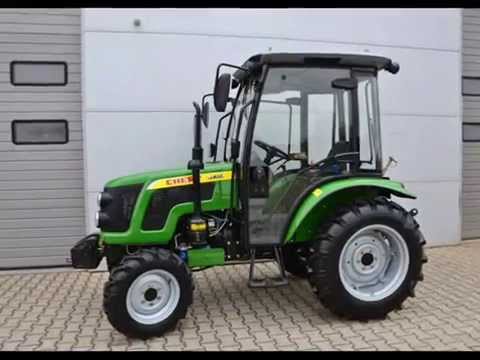

Chery RF354
Chery RF354 — RF Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1399 kg
Hover a source tag to verify
Overview
ManufacturerCheryReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Pneumatic brakes optional brakesReference
Open operator station. Optional ROPS and canopy.Reference
Variants
RF3502WDReference
RF3544WDReference
Engine
Jiang Dong 2.5L 3-cyl dieselReference
Changchai 4-cyl dieselReference
Engine (gross)26.1 kWReference
Jiang Dong TY3100ITReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke100 x 105 mmReference
Power (gross)26.1 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2400Reference
Torque124.1 NmReference
Torque RPM1650Reference
StarterelectricReference
Starter volts12Reference
Changchai 485TReference
4-cylinderReference
Starter typeelectricReference
Transmission
8-speed sliding gearReference
Typesliding gearReference
Gears8 forward and 2 reverseReference
Clutch203mm dry discReference
PTO & Hydraulics
PTO (claimed)23.1 kWReference
Controlposition and float controlReference
Rear lift (at 24"/610mm)590 kgReference
Drawbarfixed drawbarReference
Drawbarswinging drawbar optionalReference
Rear PTOtransmissionReference
Rear PTO Type540/730Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase178 cmReference
Weight1399 kgReference
Front tire6.50-16Reference
Rear tire11.2-24Reference
Standard tires (ag)Front: 6.50-16. Rear: 11.2-24Reference
Length331 cmReference
Width154 cmReference
Height255 cmReference
Ground clearance33 cmReference
Front tread109/119/130 cmReference
Rear tread96 to 146 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
