Tractor · 2012Unverified

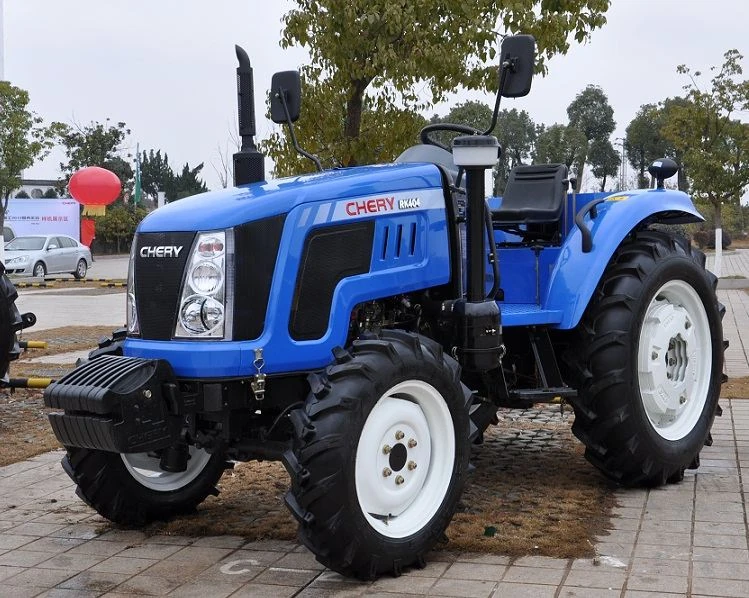

Chery RK404

Name: Chery RK404
Brand: Chery

Chery RK404 — RK Series · 40 hp. Reference specifications; pending source verification.

The Chery RK404 is a tractor with an engine rating of approximately 40 hp, classifying it at the lighter end of its category. Produced in 2012, the RK404 features a 4-cylinder diesel liquid-cooled engine paired with a four-wheel drive system and a 12-speed gearbox. Its operating weight is listed at 1964 kg, and it is designed for use in areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

1964 kg

Catalogue coverage

Variants represented

Richest spec table

63 rows

Recorded power

40 hp

Recorded weight

1964 kg

Transmissions

12-speed shuttle

Production years

2012-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCheryReference

Utility tractorReference

Built in ChinaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydraulic powerReference

Pneumatic brake optional brakesReference

Open operator station. Optional ROPS. Optional canopy. Cab available with optional air-conditioning.Reference

Variants

RK4002WDReference

RK4044WDReference

Engine

Xin Chai 2.8L 4-cyl dieselReference

Quanchai 2.7L 4-cyl dieselReference

Engine (gross)29.8 kWReference

Xin Chai 490BTReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.8 LReference

Bore/Stroke95 x 100 mmReference

Power (gross)29.8 kWReference

Fuel systemdirect injectionReference

Air cleaneroil bathReference

Rated RPM2400Reference

Torque122.0 NmReference

Torque RPM1650Reference

StarterelectricReference

Starter volts12Reference

Quanchai QC490Reference

Displacement2.7 LReference

Bore/Stroke90 x 105 mmReference

Starter typeelectricReference

Transmission

12-speed shuttleReference

8-speed gearReference

TypeshuttleReference

Gears12 forward and reverseReference

Clutch254mm dry discReference

TypegearReference

Gears8 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)25.7 kWReference

Controlposition, draft, and float controlReference

Rear lift (at 24"/610mm)856 kgReference

Drawbarfixed drawbarReference

Drawbarswinging drawbar optionalReference

Rear PTOliveReference

Rear PTO Type540/760Reference

Rear PTO Type540/1000 (optional)Reference

Dimensions

Wheelbase199 cmReference

Weight1964 kgReference

Front tire8.3-20Reference

Rear tire12.4-28Reference

Standard tires (ag)Front: 8.3-20. Rear: 12.4-28Reference

Optional tires (ag)Front: 8.3-20. Rear: 11-28Reference

Optional tires (ag)Front: 8.3-20. Rear: 13.6-28Reference

Lawn/turf front9.5-16Reference

Lawn/turf rear13-20Reference

Length398 cmReference

Width165 cmReference

Height (exhaust)213 cmReference

Ground clearance32 cmReference

Front tread124 cmReference

Rear tread130 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
