Tractor · 2012Unverified

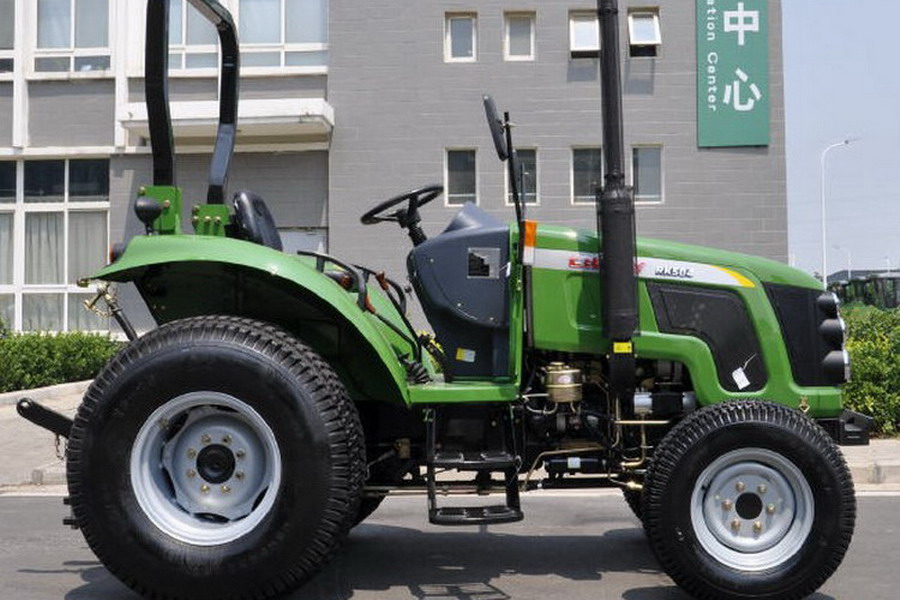

Chery RK500
Chery RK500 — RK Series · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
1900 kg
Hover a source tag to verify
Overview
ManufacturerCheryReference
Utility tractorReference
Built in ChinaReference
Two-wheel driveReference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Pneumatic brake optional brakesReference
Open operator station. Optional ROPS. Optional canopy. Cab available with optional air-conditioning.Reference
Variants
RK5002WDReference
RK5044WDReference
RK504 Orchardlow-profileReference
Engine
Xin Chai 3.2L 4-cyl dieselReference
Quanchai 3.2L 4-cyl dieselReference
Engine (gross)37.3 kWReference
Xin Chai 498BTReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke98 x 105 mmReference
Power (gross)37.3 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2400Reference
Torque122.0 NmReference
Torque RPM1650Reference
StarterelectricReference
Starter volts12Reference
Quanchai QC498Reference
Starter typeelectricReference
Transmission
12-speed shuttleReference
8-speed gearReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutch254mm dry discReference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)32.2 kWReference
Controlposition, draft, and float controlReference
Rear lift (at 24"/610mm)866 kgReference
Drawbarfixed drawbarReference
Drawbarswinging drawbar optionalReference
Rear PTOliveReference
Rear PTO Type540/760Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase196 cmReference
Weight1900 kgReference
Front tire6.0-16Reference
Rear tire12.4-28Reference
Standard tires (ag)Front: 6.0-16. Rear: 12.4-28Reference
Optional tires (ag)Front: 6.0-16. Rear: 11-28Reference
Length398 cmReference
Width165 cmReference
Height (exhaust)213 cmReference
Ground clearance40 cmReference
Front tread124 cmReference
Front tread115/135/145 cmReference
Rear tread130 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
