Tractor · 2012Unverified

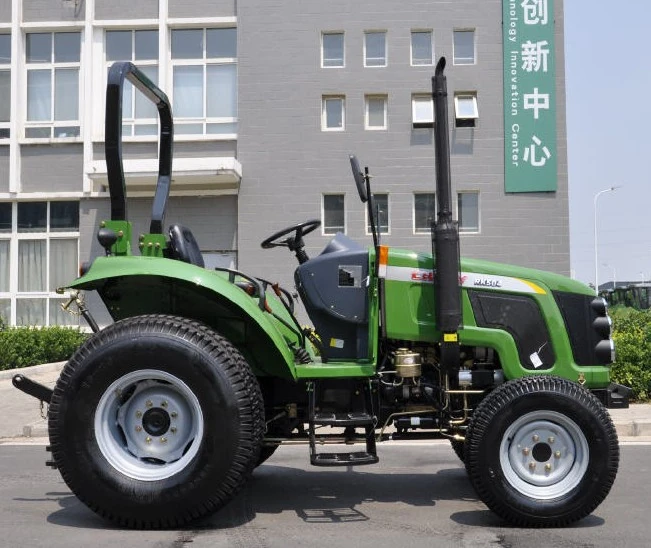

Chery RK504

Name: Chery RK504
Brand: Chery

Chery RK504 — RK Series · 50 hp. Reference specifications; pending source verification.

The Chery RK504 is a tractor with a rating of approximately 50 hp, categorising it among the smaller models in its class. It was manufactured in 2012. This tractor features a 4-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a 12-speed gearbox. Its operating weight is listed at 2014 kg, and it is suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

50 hp

Weight

2014 kg

Catalogue coverage

Variants represented

Richest spec table

62 rows

Recorded power

50 hp

Recorded weight

2014 kg

Transmissions

12-speed shuttle

Production years

2012-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCheryReference

Utility tractorReference

Built in ChinaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydraulic powerReference

Pneumatic brake optional brakesReference

Open operator station. Optional ROPS. Optional canopy. Cab available with optional air-conditioning.Reference

Variants

RK5002WDReference

RK5044WDReference

RK504 Orchardlow-profileReference

Engine

Xin Chai 3.2L 4-cyl dieselReference

Quanchai 3.2L 4-cyl dieselReference

Engine (gross)37.3 kWReference

Xin Chai 498BTReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.2 LReference

Bore/Stroke98 x 105 mmReference

Power (gross)37.3 kWReference

Fuel systemdirect injectionReference

Air cleaneroil bathReference

Rated RPM2400Reference

Torque122.0 NmReference

Torque RPM1650Reference

StarterelectricReference

Starter volts12Reference

Quanchai QC498Reference

Starter typeelectricReference

Transmission

12-speed shuttleReference

8-speed gearReference

TypeshuttleReference

Gears12 forward and reverseReference

Clutch254mm dry discReference

TypegearReference

Gears8 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)31.7 kWReference

Controlposition, draft, and float controlReference

Rear lift (at 24"/610mm)866 kgReference

Drawbarfixed drawbarReference

Drawbarswinging drawbar optionalReference

Rear PTOliveReference

Rear PTO Type540/760Reference

Rear PTO Type540/1000 (optional)Reference

Dimensions

Wheelbase199 cmReference

Weight2014 kgReference

Front tire8.3-20Reference

Rear tire12.4-28Reference

Standard tires (ag)Front: 8.3-20. Rear: 12.4-28Reference

Optional tires (ag)Front: 8.3-20. Rear: 11-28Reference

Optional tires (ag)Front: 8.3-20. Rear: 13.6-28Reference

Lawn/turf front9.5-16Reference

Lawn/turf rear13-20Reference

Length398 cmReference

Width165 cmReference

Height (exhaust)215 cmReference

Ground clearance32 cmReference

Front tread124 cmReference

Rear tread130 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
