Tractor · 2012Unverified

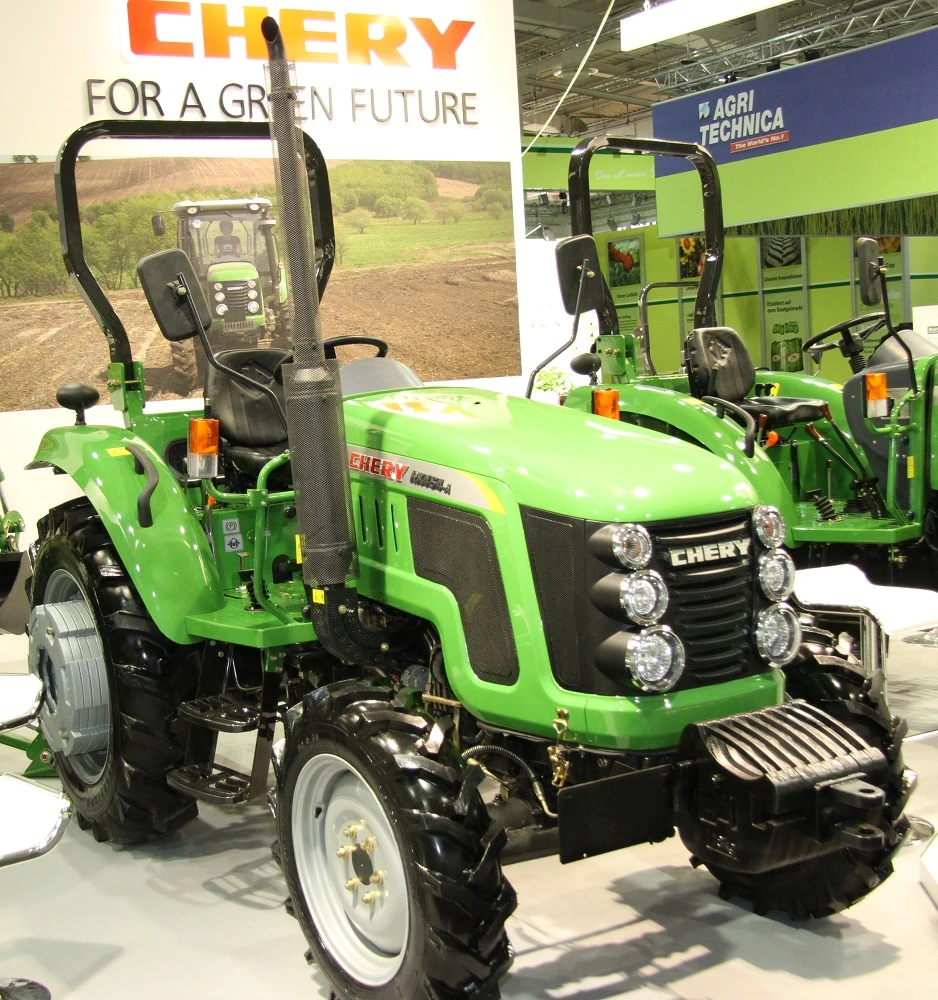

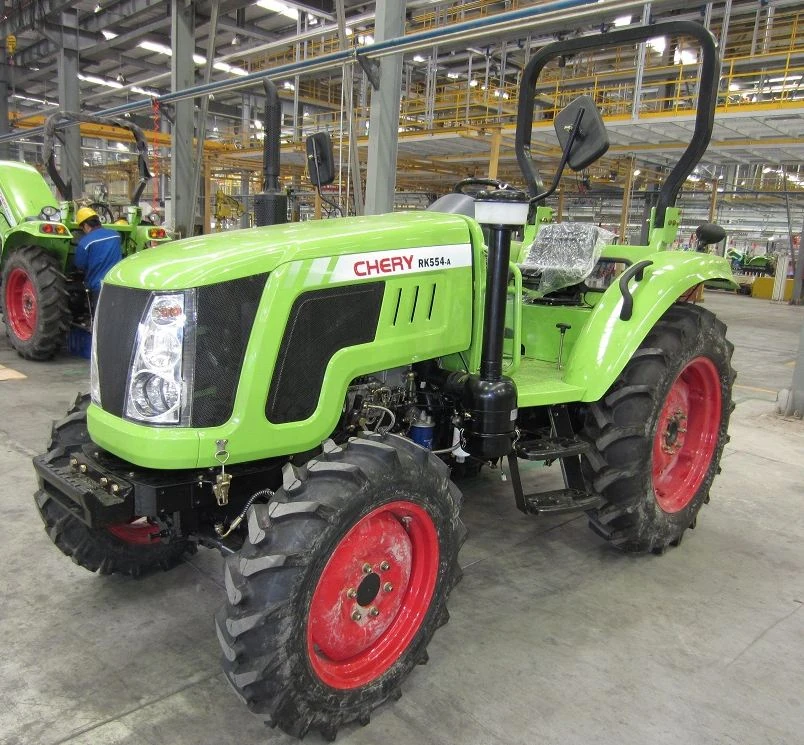

Chery RK554HD
Chery RK554HD — RK Series · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2115 kg
Hover a source tag to verify
Overview
ManufacturerCheryReference
Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Pneumatic brake optional brakesReference
Open operator station. Optional ROPS. Optional canopy. Cab available with optional air-conditioning.Reference
Variants
RK5502WDReference
RK5544WDReference
RK554HDpremium 4WDReference
Engine
Xin Chai 4.1L 4-cyl dieselReference
Engine (gross)41.0 kWReference
Xin Chai 4K41TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.1 LReference
Bore/Stroke105 x 118 mmReference
Power (gross)41.0 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2400Reference
Torque122.0 NmReference
Torque RPM1650Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
8-speed gearReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutch254mm dry discReference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)35.4 kWReference
Controlposition, draft, and float controlReference
Rear lift (at 24"/610mm)968 kgReference
Drawbarfixed drawbarReference
Drawbarswinging drawbar optionalReference
Rear PTOliveReference
Rear PTO Type540/760Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase203 cmReference
Weight2115 kgReference
Front tire8.3-24Reference
Rear tire14.9-30Reference
Standard tires (ag)Front: 8.3-24. Rear: 14.9-30Reference
Optional tires (ag)Front: 8.3-20. Rear: 11-28Reference
Optional tires (ag)Front: 8.3-20. Rear: 13.6-28Reference
Length403 cmReference
Width165 cmReference
Height (exhaust)225 cmReference
Ground clearance32 cmReference
Front tread124 cmReference
Rear tread130 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
