Tractor · 2012Unverified

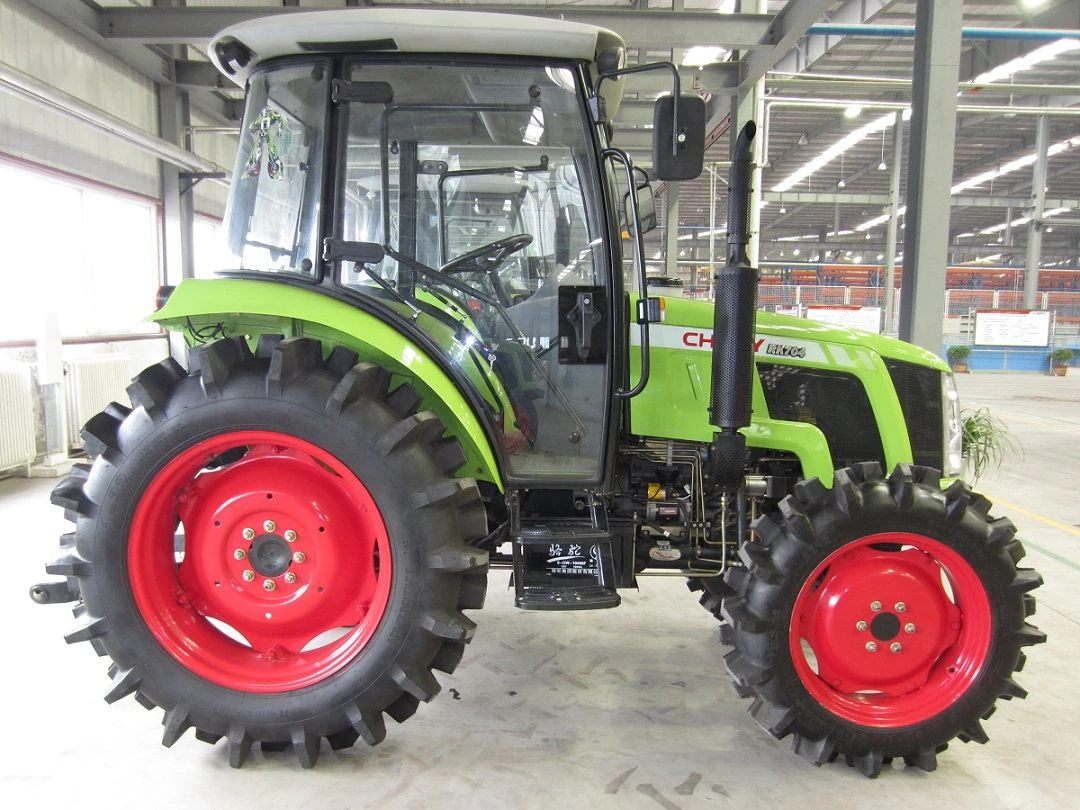

Chery RK704
Chery RK704 — RK Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
2264 kg
Hover a source tag to verify
Overview
ManufacturerCheryReference
Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Pneumatic brake optional brakesReference
Open operator station. Optional ROPS. Optional canopy. Cab available with optional air-conditioning.Reference
Variants
RK7002WDReference
RK7044WDReference
Engine
Xin Chai 4.3L 4-cyl dieselReference
Engine (gross)52.2 kWReference
Xin Chai 4K43TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke108 x 118 mmReference
Power (gross)52.2 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2400Reference
Torque122.0 NmReference
Torque RPM1650Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
8-speed gearReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutch254mm dry discReference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)43.8 kWReference
Controlposition, draft, and float controlReference
Rear lift (at 24"/610mm)1529 kgReference
Drawbarfixed drawbarReference
Drawbarswinging drawbar optionalReference
Rear PTOliveReference
Rear PTO Type540/760Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase207 cmReference
Weight2264 kgReference
Front tire8.3-20Reference
Rear tire12.4-28Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-28Reference
Optional tires (ag)Front: 8.3-24. Rear: 11-32Reference
Length403 cmReference
Width165 cmReference
Height (exhaust)225 cmReference
Ground clearance40 cmReference
Front tread145 to 0 cmReference
Rear tread140 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
