Tractor · 2012Unverified

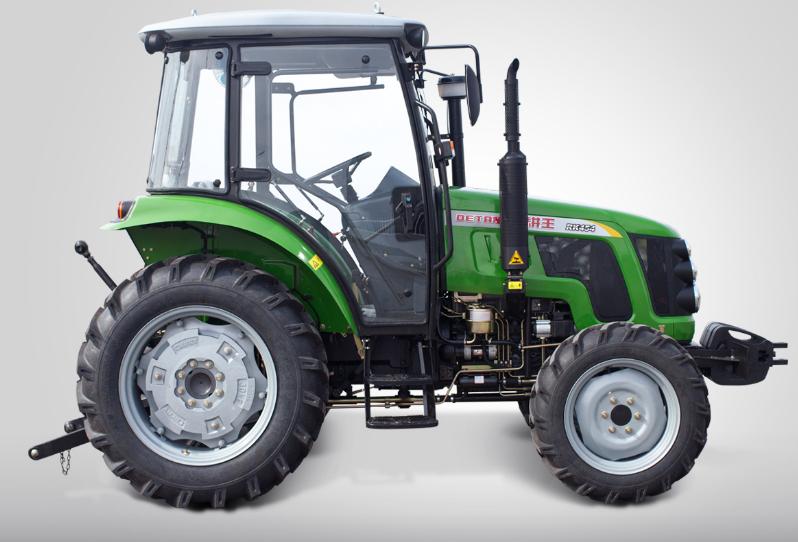

Chery RM604
Chery RM604 — RM Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
5842 to 6989 pounds
Hover a source tag to verify
Overview
ManufacturerCheryReference
Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Pneumatic brake optional brakesReference
Cab standard. Optional heater or air-conditioning. Available ROPS and canopy.Reference
Variants
RM6002WDReference
RM6044WDReference
Engine
Quanchai 4.2L 4-cyl dieselReference
YTOReference
Engine (gross)44.7 kWReference
Quanchai 4JR3T60XReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power (gross)44.7 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2200Reference
Torque255.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
YTO YT4A22-2Reference
Starter typeelectricReference
Transmission
16-speed gearReference
8-speed gearReference
10-speed shuttleReference
TypegearReference
Gears16 forward and 4 reverseReference
Clutch304.8mm dry discReference
Gears8 forward and 2 reverseReference
TypeshuttleReference
Gears10 forward and reverseReference
PTO & Hydraulics
PTO (claimed)39.6 kWReference
Controlposition and float controlReference
Controloptional draft controlReference
Rear lift (at 24"/610mm)1529 kgReference
Drawbarfixed drawbarReference
Drawbarswinging drawbar optionalReference
Rear PTOliveReference
Rear PTO Type540/760Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase218 cmReference
Weight5842 to 6989 poundsReference
Front tire8.3-20Reference
Rear tire14.9-28Reference
Standard tires (ag)Front: 8.3-20. Rear: 14.9-28Reference
Optional tires (ag)Front: 9.5-24. Rear: 11-32Reference
Length420 cmReference
Width191 cmReference
Height (exhaust)260 cmReference
Weight2649 kgReference
Weight3170 kgReference
Ground clearance28 cmReference
Front tread145 cmReference
Rear tread152 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
