Tractor · 2012Unverified

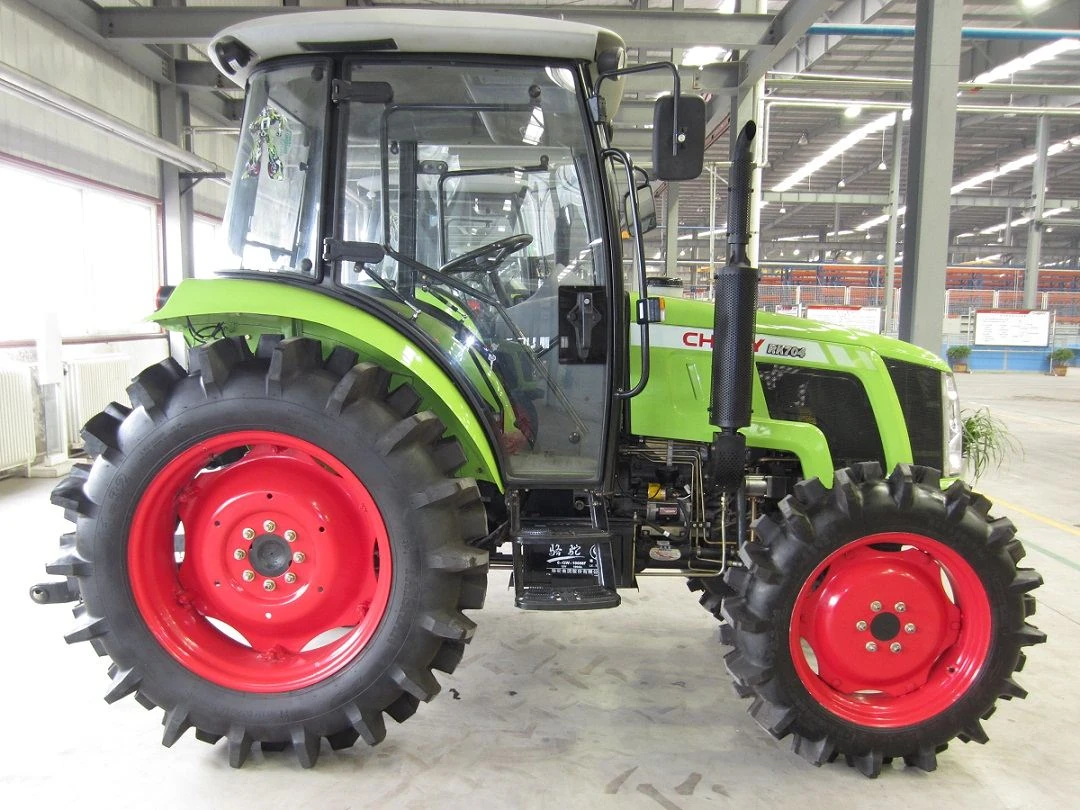

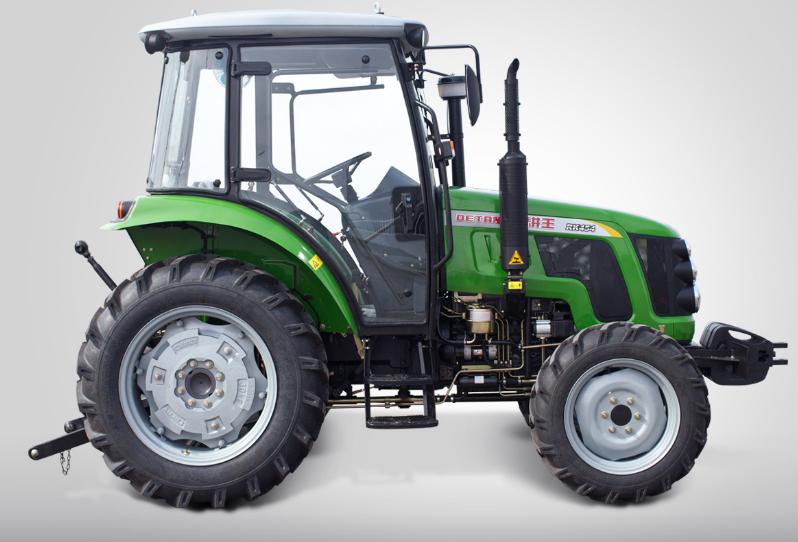

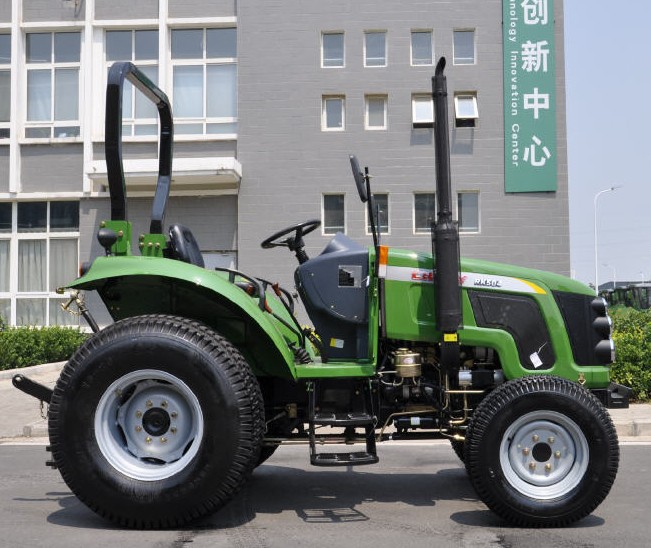

Chery RM700
Chery RM700 — RM Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
5886 to 6360 pounds
Hover a source tag to verify
Overview
ManufacturerCheryReference
Utility tractorReference
Built in ChinaReference
Two-wheel driveReference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Pneumatic brake optional brakesReference
Cab standard. Optional heater or air-conditioning. Available ROPS and canopy.Reference
Variants
RM7002WDReference
RM7044WDReference
Engine
Quanchai 4.9L 4-cyl dieselReference
YTOReference
Engine (gross)52.2 kWReference
Quanchai 4JR3T65XReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke108 x 135 mmReference
Power (gross)52.2 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2200Reference
Torque270.8 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
YTO LR4B3-22Reference
Starter typeelectricReference
Transmission
16-speed gearReference
8-speed gearReference
10-speed shuttleReference
TypegearReference
Gears16 forward and 4 reverseReference
Clutch304.8mm dry discReference
Gears8 forward and 2 reverseReference
TypeshuttleReference
Gears10 forward and reverseReference
PTO & Hydraulics
PTO (claimed)46.4 kWReference
Controlposition and float controlReference
Controloptional draft controlReference
Rear lift (at 24"/610mm)1529 kgReference
Drawbarfixed drawbarReference
Drawbarswinging drawbar optionalReference
Rear PTOliveReference
Rear PTO Type540/760Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Wheelbase218 cmReference
Weight5886 to 6360 poundsReference
Front tire6.5-20Reference
Rear tire14.9-30Reference
Standard tires (ag)Front: 6.5-20. Rear: 14.9-30Reference
Optional tires (ag)Front: 6.5-20. Rear: 11-32Reference
Length398 cmReference
Width165 cmReference
Height (exhaust)262 cmReference
Weight2669 kgReference
Weight2884 kgReference
Ground clearance42 cmReference
Front tread139 cmReference
Rear tread152 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
