Tractor · 2012Unverified

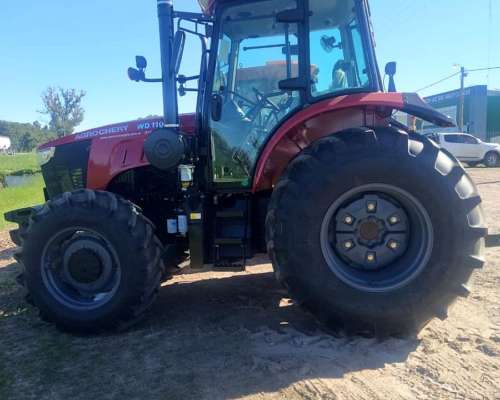

Chery RS1104

Name: Chery RS1104
Brand: Chery

Chery RS1104 — RS Series · 110 hp. Reference specifications; pending source verification.

The Chery RS1104 is a tractor model with a rated power output of 110 hp, a mid-range figure for its class, and was manufactured in 2012. It features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with a four-wheel drive system and a 16-speed gearbox. The tractor has an operating weight of 3800 kg, making it suitable for operations of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

110 hp

Weight

3800 kg

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

110 hp

Recorded weight

3800 kg

Transmissions

16-speed shuttle

Production years

2012-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerCheryReference

Row-Crop tractorReference

Built in ChinaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydraulic powerReference

Pneumatic brake optional brakesReference

Cab standard. Available heat and air-conditioning.Reference

Variants

RS11044-cyl turboReference

RS1104F6-cyl naturalReference

Engine

YTO 5.3L 4-cyl dieselReference

Quanchai dieselReference

Engine (gross)82.0 kWReference

YTO LR4N5Z-23Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement5.3 LReference

Bore/Stroke112 x 135 mmReference

Power (gross)82.0 kWReference

Fuel systemdirect injectionReference

Air cleaneroil bathReference

Rated RPM2300Reference

Torque420.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Quanchai QC4112ZTReference

Starter typeelectricReference

Transmission

16-speed shuttleReference

TypeshuttleReference

Gears16 forward and 8 reverseReference

Clutch304.8mm dry discReference

PTO & Hydraulics

PTO (claimed)68.9 kWReference

Controlposition and float controlReference

Rear lift (at 24"/610mm)2243 kgReference

Drawbarfixed drawbarReference

Drawbarswinging drawbar optionalReference

Rear PTOliveReference

Rear PTO Type540/1000Reference

Rear PTO Type760/1000 (optional)Reference

Dimensions

Wheelbase236 cmReference

Weight3800 kgReference

Front tire13.6-24Reference

Rear tire18.4-34Reference

Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference

Length483 cmReference

Width228 cmReference

Height (cab)297 cmReference

Ground clearance41 cmReference

Front tread180/187/189/200 cmReference

Rear tread181 to 241 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
