Tractor · 2012Unverified

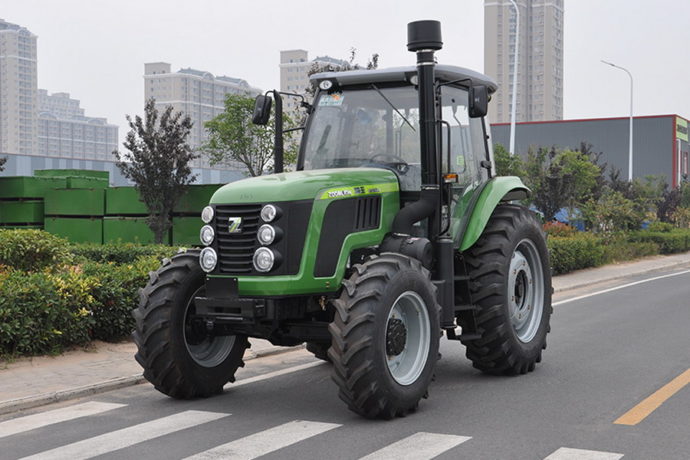

Chery RV1554
Chery RV1554 — RV Series · 155 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
155 hp
Weight
6599 kg
Hover a source tag to verify
Overview
ManufacturerCheryReference
Row-Crop tractorReference
Built in ChinaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Pneumatic brakes optional brakesReference
Cab standard with air-conditioning.Reference
Engine
Yuchai 6.9L 6-cyl dieselReference
Engine (gross)115.6 kWReference
Yuchai YC6BReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.9 LReference
Bore/Stroke108 x 125 mmReference
Power (gross)115.6 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2000Reference
Torque551.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchromeshReference
TypesynchromeshReference
Gears16 forward and reverseReference
Clutch304.8mm dry discReference
PTO & Hydraulics
PTO (claimed)72.3 kWReference
Controlpositon, float, and draft controlReference
Rear lift (at 24"/610mm)2855 kgReference
Drawbarfixed drawbarReference
Drawbarswinging drawbar optionalReference
Rear PTOliveReference
Rear PTO Type540/1000Reference
Rear PTO Type760/1000 (optional)Reference
Dimensions
Wheelbase268 cmReference
Weight6599 kgReference
Front tire16.9-28Reference
Rear tire18.4-42 (duals)Reference
Standard tires (ag)Front: 16.9-28. Rear: 18.4-42 (duals)Reference
Length534 cmReference
Width340 cmReference
Height (cab)303 cmReference
Ground clearance40 cmReference
Front tread189 to 0 cmReference
Rear tread237 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
