Tractor · 2012Unverified

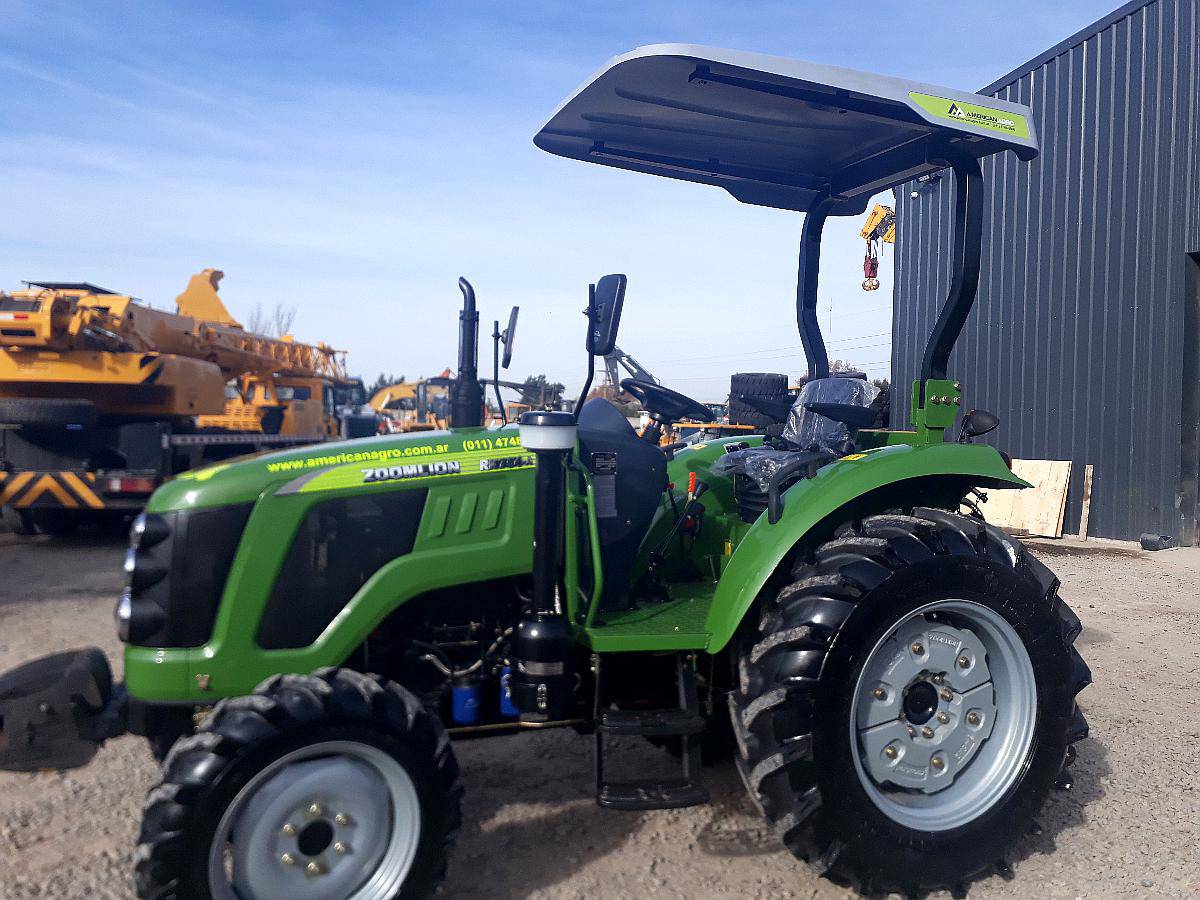

Chery RX304
Chery RX304 — RX Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1150 kg
Hover a source tag to verify
Overview
ManufacturerCheryReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Open operator station. Available two-post ROPS and canopy.Reference
Variants
RX3002WDReference
RX3044WDReference
Engine
Jiang Dong 1.7L 2-cyl dieselReference
Engine (gross)22.4 kWReference
Jiang Dong JD2102TReference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke102 x 105 mmReference
Power (gross)22.4 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)21.0 kWReference
Rear PTO Type720Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase151 cmReference
Weight1150 kgReference
Front tire6.00-16Reference
Rear tire9.50-24Reference
Standard tires (ag)Front: 6.00-16. Rear: 9.50-24Reference
Length298 cmReference
Width130 cmReference
Height189 cmReference
Ground clearance31 cmReference
Front tread100 cmReference
Front tread97/119/130 cmReference
Rear tread100/109/119/130 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
