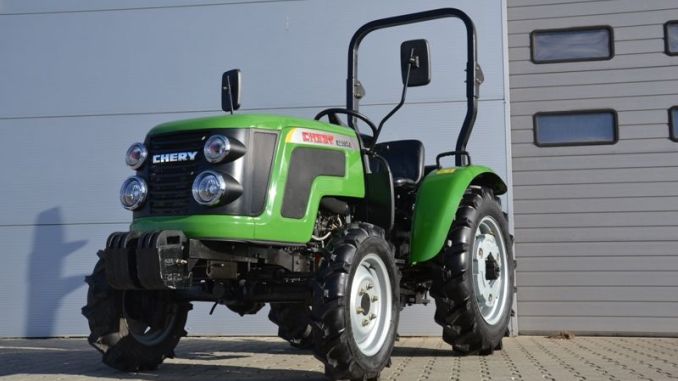

Chery RX350
Chery RX350 — RX Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1080 kg
Hover a source tag to verify
Overview
ManufacturerCheryReference
Compact Utility tractorReference
Built in ChinaReference
Two-wheel driveReference
Open operator station. Available two-post ROPS and canopy.Reference
Variants
RX3502WDReference
RX3544WDReference
Engine
Lai Dong 2.2L 4-cyl dieselReference
Engine (gross)26.1 kWReference
Lai Dong 4L22BTReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke85 x 95 mmReference
Power (gross)26.1 kWReference
Rated RPM2350Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)21.8 kWReference
Rear PTO Type720Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase171 cmReference
Weight1080 kgReference
Front tire5.00-16Reference
Rear tire9.50-24Reference
Standard tires (ag)Front: 5.00-16. Rear: 9.50-24Reference
Length350 cmReference
Width130 cmReference
Height189 cmReference
Ground clearance31 cmReference
Front tread96 cmReference
Rear tread94 to 113 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
