Tractor · 2003Unverified

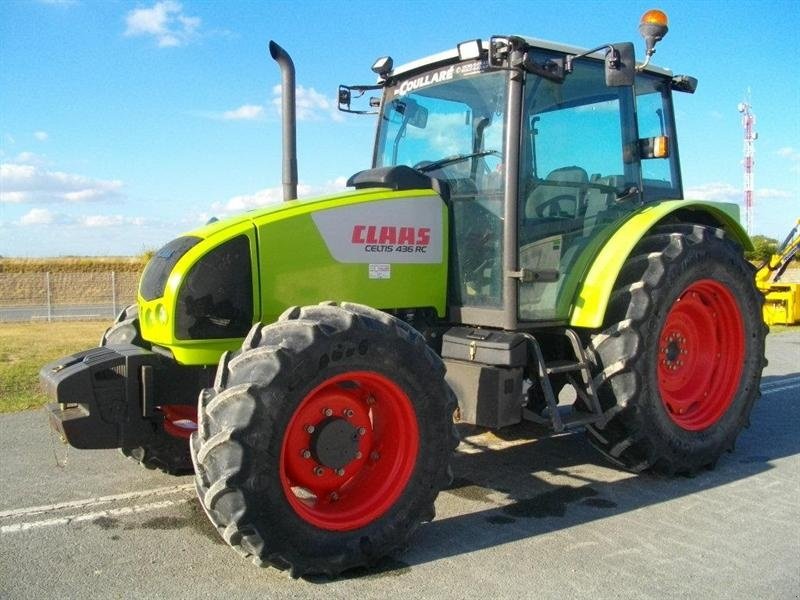

Claas 436 Celtis
Claas 436 Celtis — Model year 2003-20042004-2008 · 84 hp. Reference specifications; pending source verification.
The Claas 436 Celtis is a tractor model with an engine rating of 84 hp, positioning it roughly in the middle of its class for power output. It was manufactured from 2003 to 2008 and features a 4-cylinder diesel liquid-cooled engine driving four-wheel drive via a hydrostatic transmission. The listed weight of the vehicle is 3760 kg, suitable for tasks of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
3760 kg
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
84 hp
Recorded weight
3760 kg
Transmissions
10-speed
Production years
2003-2008
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerClaasReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standardReference
Engine
Deere Power Systems (DPS) 4.5L 4-cyl dieselReference
Fuel tank145.0 LReference
Engine62.6 kWReference
Deere Power Systems (DPS) 4045 DRT70Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke107 x 127 mmReference
Power62.6 kWReference
Rated RPM2000Reference
Torque307.0 NmReference
Torque RPM1200Reference
Transmission
10-speedReference
20-speedReference
Gears10 forward and reverseReference
Gears20 forward and reverseReference
PTO & Hydraulics
Total flow68.9 lpmReference
Rear lift5801 kgReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase248 cmReference
Weight3760 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Ag front13.6R24Reference
Ag rear16.9R34Reference
Length387 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
